Key Specs
5190
sq ft
3
Beds
2.5
Baths
3
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 126-148
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 82'
Height : 31'
Width : 52'
Area
Basement : 1854 sq/ft
Bonus : 327 sq/ft
Garage : 800 sq/ft
Main Floor : 2055 sq/ft
Patios : 252 sq/ft
Upper Floor : 954 sq/ft
Ceiling
Ceiling Details : Master Bedroom Tray CeilingDen Vaulted Ceiling
Lower Ceiling : 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 9:12
Roof Framing : Truss
Roof Load : 65
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : 2"x6"
Insulation : 22
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Mud Room
Play Flex Room
Garage Features
Oversized Garage
Side Entry Garage
Split Garage
Lot Characteristics
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Code Compliance
Irc 2006
Nbcc
Structural Information Provided
Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Calculations
Structural Notes
Structural Roof Framing
What's Included In This Plan Set
- Cover Sheet: Designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.

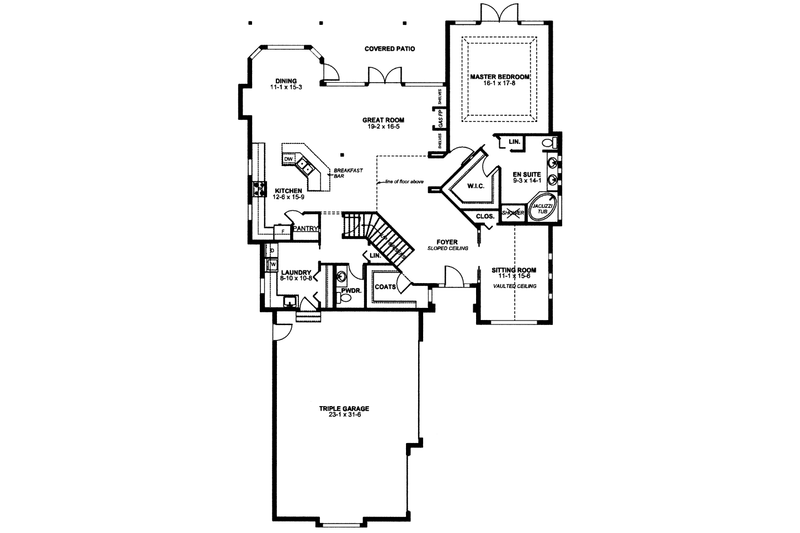

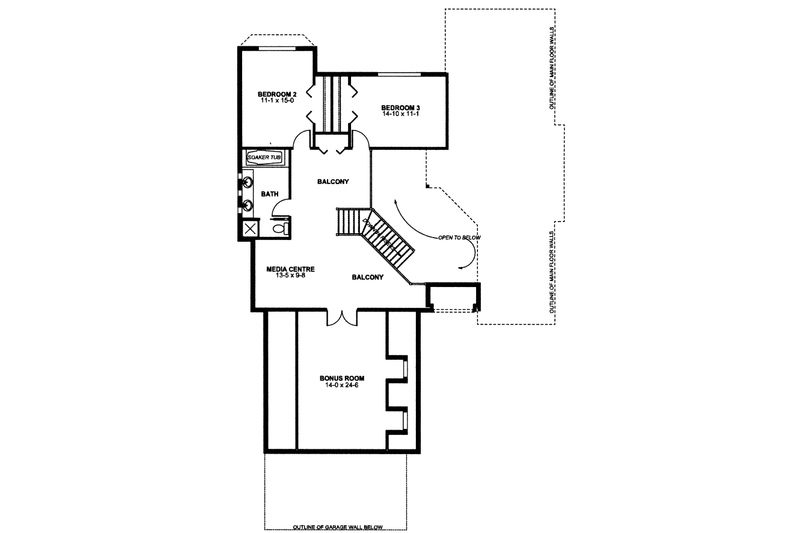

- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

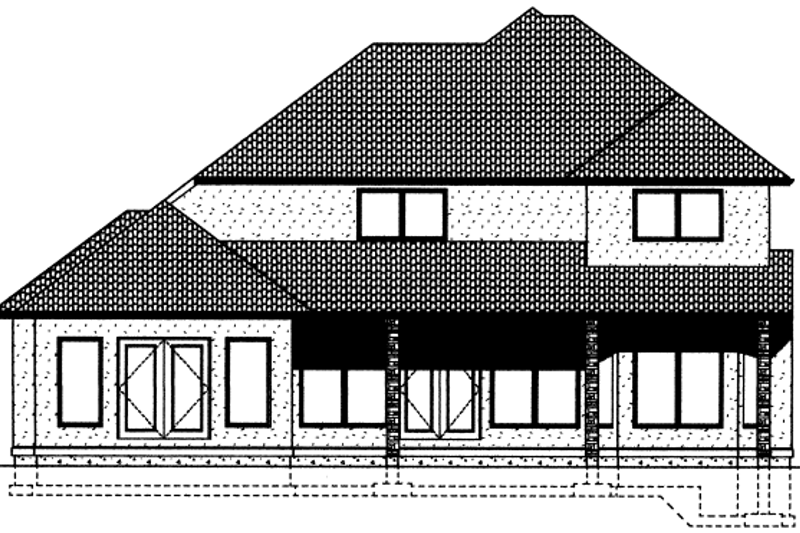

- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Including lighting fixture placement
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$1440.75
$1653.25
$1865.75
Foundation
$0.00
$250.75
$335.75
Framing
$0.00
Additional Options
$170.00
$46.75
$140.25
$33.15
$140.25
$106.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
