PLAN #928-262

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Subtotal
$1995.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #928-262

Key Specs


5280
sq ft

5
Beds

5.5
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

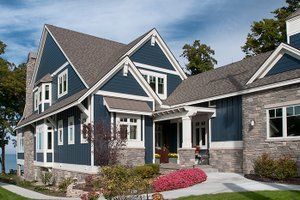

Symmetry and the use of authentic materials create a stunning exterior for this design by Visbeen Architects. The home’s main level is nearly surrounded on all four sides by a wraparound porch, which offers a screened-in section at the back of the house and an outdoor bar, easily served from the kitchen inside. The living, dining, and kitchen areas share this level with the spacious master suite. Upstairs, guests will be delighted to find two huge bedroom suites, along with an additional bedroom or living room, loft area, and laundry facilities. The lower level is all about friends and family. A full bar, entertainment center, billiards, guest suite, and six-bed bunk room join the outdoor living spaces to create a relaxing retreat.

Floor Plans


Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #928-262
Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #928-262
Floor Plan - Lower Floor Plan
Traditional Floor Plan - Lower Floor Plan Plan #928-262
Floor Plan - Other Floor Plan
Traditional Floor Plan - Other Floor Plan Plan #928-262

Full Specs & Features


Dimension
Depth : 62'
Height : 29' 2"
Width : 118'
Area
Basement Living: 1766 sq/ft height 10'
Bonus: 389 sq/ft
First Floor: 2052 sq/ft height 9'
Second Floor: 1462 sq/ft height 8'
Roof
Roof Framing : Truss
Primary Pitch : 12:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Mud Room
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Unfinished Future Space
Loft
Sunroom
Open Floor Plan
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Side Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Balcony
Screened Porch
Wrap Around Porch
Deck
Rooms

2nd floor baths:

width 7' x depth 10' 6"

Bedroom 2:

300 sq/ft width 25' x depth 13' 6"

Bedroom 3:

300 sq/ft width 25' x depth 13' 6"

Bedroom 4:

182 sq/ft width 16' 6" x depth 11'

Bedroom 5:

202 sq/ft width 15' 6" x depth 13'

Billiards:

261 sq/ft width 15' 6" x depth 16' 10"

Bonus:

389 sq/ft width 29' x depth 13' 6"

Dining:

214 sq/ft width 10' 8" x depth 20'

Entertaining Kitchen:

165 sq/ft width 16' 6" x depth 10'

Front porch:

width 6' 6" x depth 29' 4"

Garage:

725 sq/ft width 29' x depth 25'

Garage 2:

698 sq/ft width 28' 8" x depth 24' 4"

Kitchen:

200 sq/ft width 10' x depth 20'

Laundry:

width 9' 4" x depth 9' 8"

Living Room:

360 sq/ft width 24' x depth 15'

Living Room:

189 sq/ft width 12' 7" x depth 15'

Master bath:

width 13' 2" x depth 13' 8"

Master Bedroom:

215 sq/ft width 11' 6" x depth 18' 8"

Master closet:

width 7' 6" x depth 13' 8"

Mud room:

width 7' 6" x depth 6'

Powder room:

width 7' 6" x depth 6'

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
$1995.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3995.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
