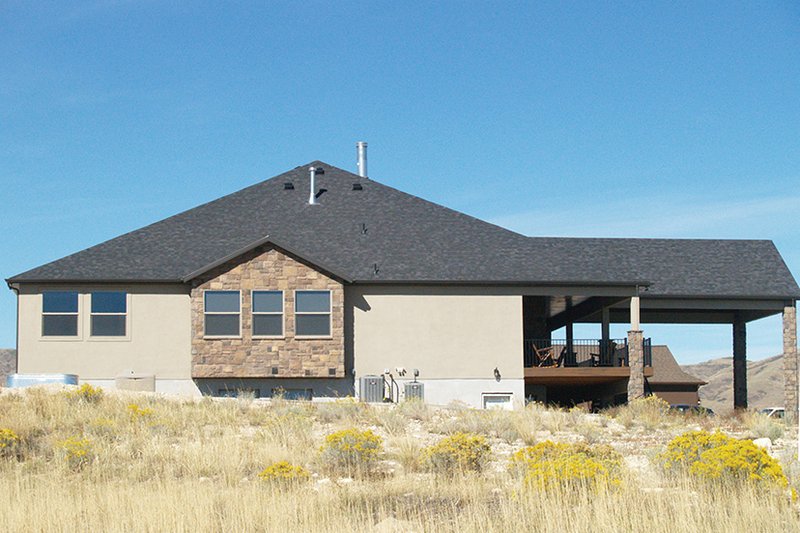

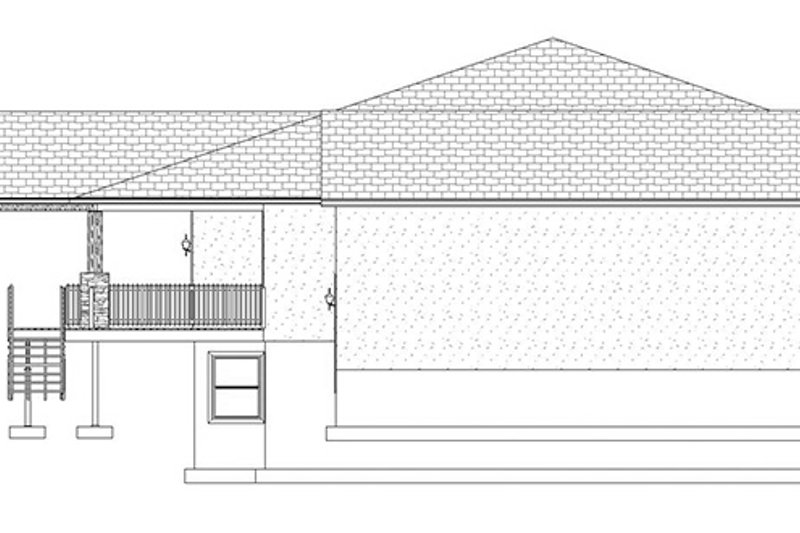

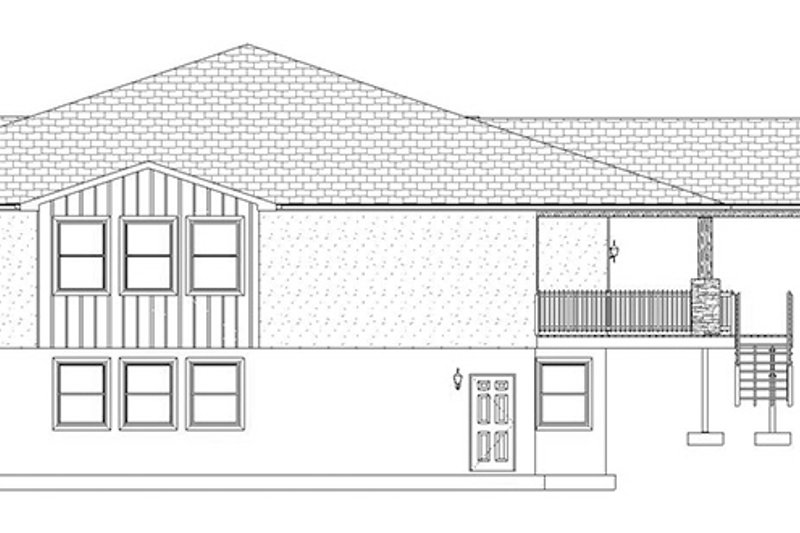

Ranch Exterior - Other Elevation Plan #1060-21

Select Plan Set Options

What's included?

	Right-Reading Reverse $150.00 Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets $50.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $100.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $39.00 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $200.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

$1300.00

Best Price Guaranteed*

Also order by phone: 1-800-447-0027

How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-800-447-0027

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order, plus exclusive discounts and more.

Join for FREE

Learn More

PLAN 1060-21

Key Specs

5296
sq ft

5
Beds

4
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

An attractive covered porch catches the eye upon first glance of this house and that only begins to showcase all the luxury this home offers. There is a large great room, a big home office and a dreamy kitchen large enough for two side-by-side refrigerators. A beautiful master suite has a spacious walk-in closet and master bathroom with the capacity for a separate washer and dryer. In the basement, there is room for a home gym, as well as, a guest apartment with a separate entrance and kitchenette.

Floor Plans

Floor Plan - Main Floor Plan

Reverse

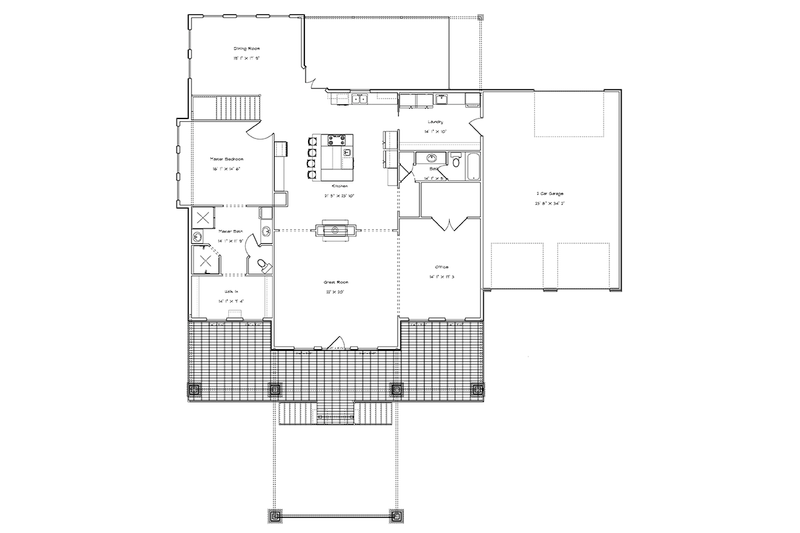

Ranch Floor Plan - Main Floor Plan Plan #1060-21

Floor Plan - Lower Floor Plan

Reverse

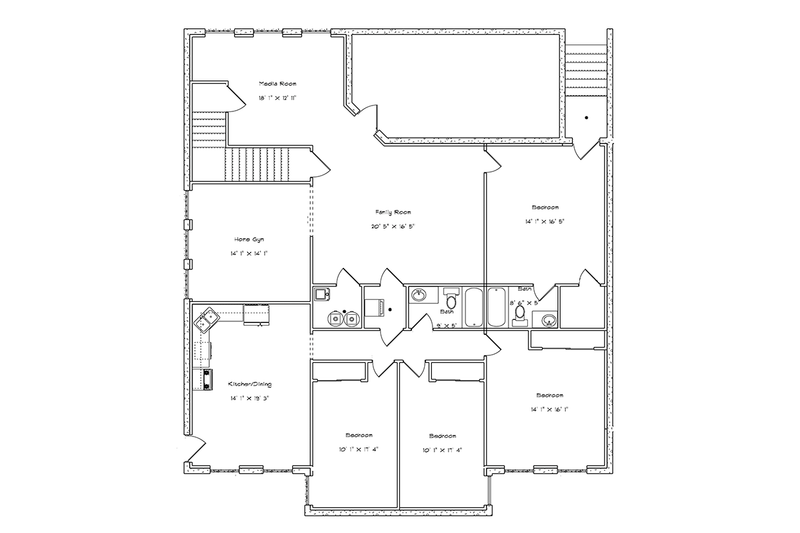

Ranch Floor Plan - Lower Floor Plan Plan #1060-21

Full Specs & Features

Dimension

Depth : 88'
Height : 25' 5"
Width : 75'

Area

Basement Living: 2819 sq/ft height 9'
First Floor: 2477 sq/ft height 9'
Garage: 845 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6

Bedroom Features

Fireplace
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings

Garage Features

Carport Porte Cochere
Front Entry Garage

Outdoor Spaces

Covered Front Porch

Rooms

Apartment Bedroom 1:

175 sq/ft width 10' 1" x depth 17' 4"

Apartment Bedroom 2:

175 sq/ft width 10' 1" x depth 17' 4"

Apartment Bedroom 3:

226 sq/ft width 14' 1" x depth 16' 1"

Apartment Kitchen/ Dining:

271 sq/ft width 14' 1" x depth 19' 3"

Basement Family Room:

335 sq/ft width 20' 5" x depth 16' 5"

Basement Media Room:

234 sq/ft width 18' 1" x depth 12' 11"

Bedroom 2:

width 14' 1" x depth 16' 5"

Covered Front Porch:

1032 sq/ft

Covered Rear Porch:

377 sq/ft

Dining Room:

339 sq/ft width 19' 1" x depth 17' 9"

Garage:

845 sq/ft width 23' 8" x depth 34' 2"

Great Room:

440 sq/ft width 22' x depth 20'

Home Gym:

198 sq/ft width 14' 1" x depth 14' 1"

Kitchen:

510 sq/ft width 21' 5" x depth 23' 10"

Master Closet:

103 sq/ft width 14' 1" x depth 7' 4"

Master Bath:

177 sq/ft width 14' 1" x depth 11' 9"

Master Bedroom:

233 sq/ft width 16' 1" x depth 14' 6"

Office:

243 sq/ft width 14' 1" x depth 17' 3"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
