PLAN #944-1

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Spacious living areas surround beautiful 'old world' courtyards. Party or relax on the sun deck that overlooks the center courtyard during family gatherings and entertainment. Enjoy the shade under the "California Room" nested between indoor and outdoor living spaces. The Game Room area is a very versatile room that can be easily configured to meet your needs; a large Formal Dining or Living Room perhaps. The spacious but still cozy Master Suite with separate sitting area, offers vaulted beam ceilings, a romantic fireplace and access to the California Room. All other bedrooms are complete suites with full private baths and walk-in closets.

Floor Plans

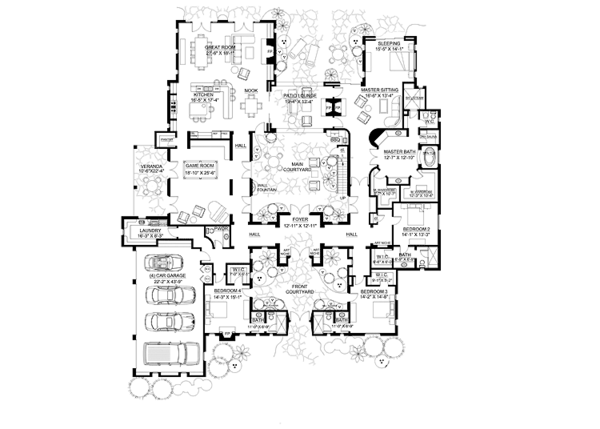

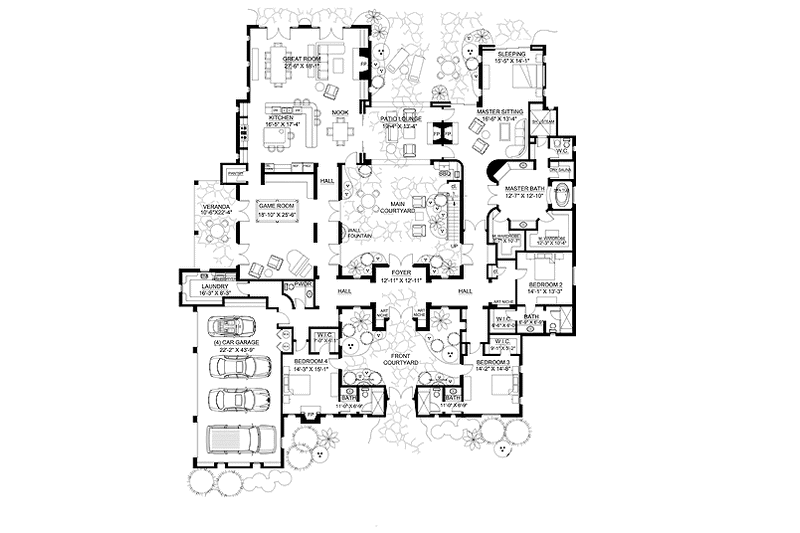

Floor Plan - Main Floor Plan
Mediterranean Floor Plan - Main Floor Plan Plan #944-1

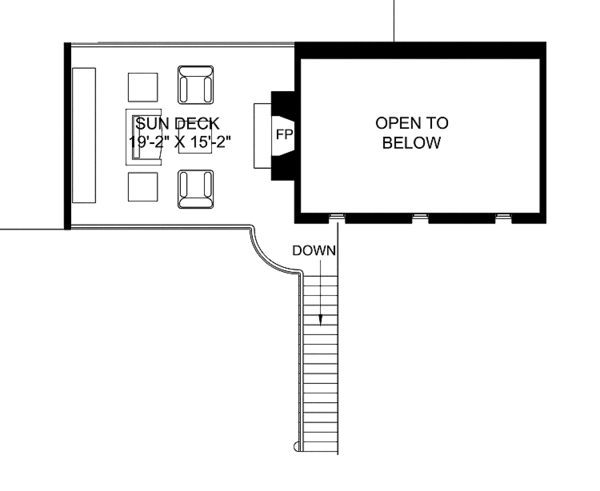

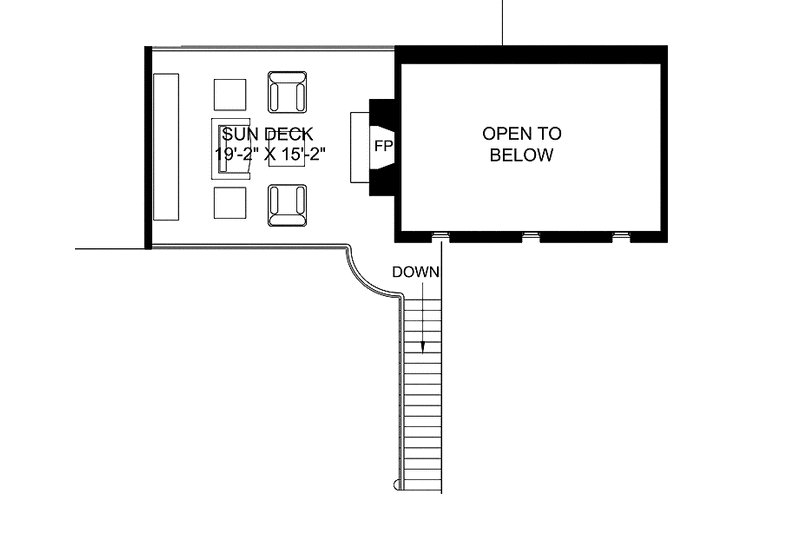

Floor Plan - Other Floor Plan
Mediterranean Floor Plan - Other Floor Plan Plan #944-1

Full Specs & Features

Depth : 112' 3"
Height : 22' 6"
Width : 100' 6"
Deck: 323 sq/ft
First Floor: 5308 sq/ft
Garage: 915 sq/ft
Bedroom Features
Walk In Closet
Formal Dining Room
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Main Floor Laundry
Outdoor Spaces

Game room:

width 18' 10" x depth 25' 6"


597 sq/ft width 25' 5" x depth 23' 6"

Garage Two:

556 sq/ft width 22' 6" x depth 24' 9"


403 sq/ft width 17' 3" x depth 23' 5"

Master Bathroom:

218 sq/ft width 14' 9" x depth 14' 10"

Master Walk-In Closet:

212 sq/ft width 11' x depth 19' 4"


184 sq/ft width 13' 4" x depth 13' 10"


242 sq/ft width 17' x depth 14' 3"


70 sq/ft width 10' x depth 7'


326 sq/ft width 20' x depth 16' 4"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

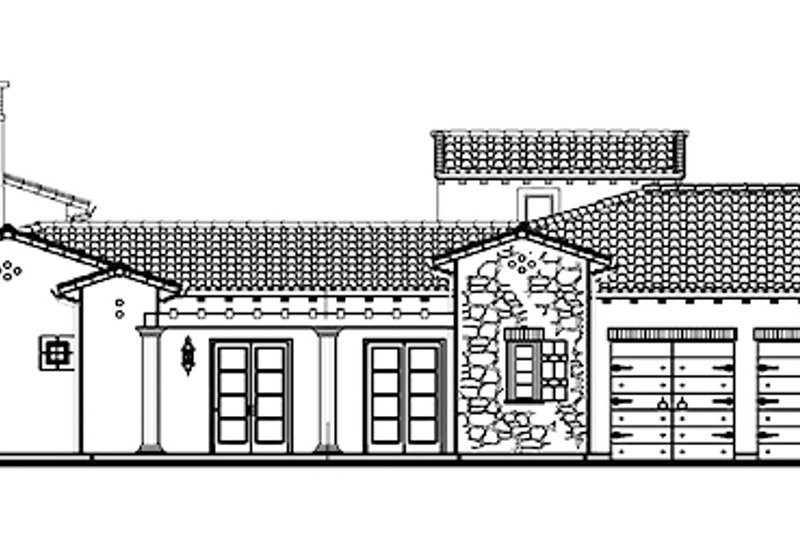

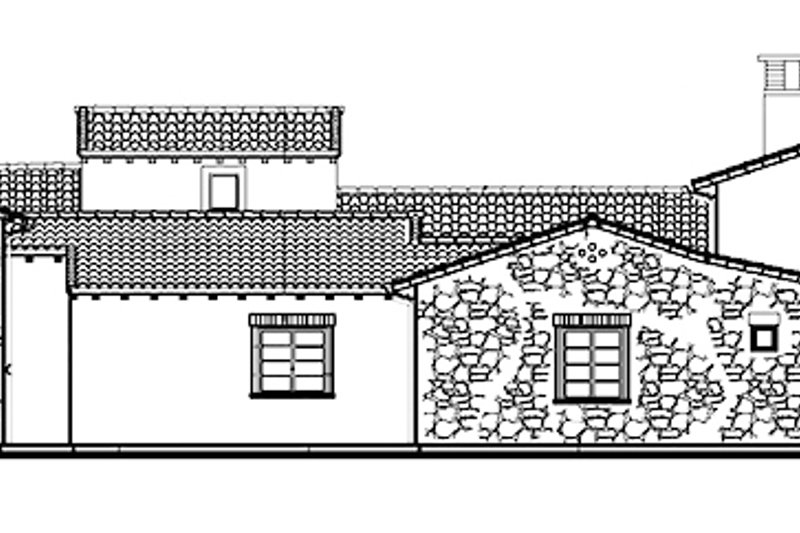

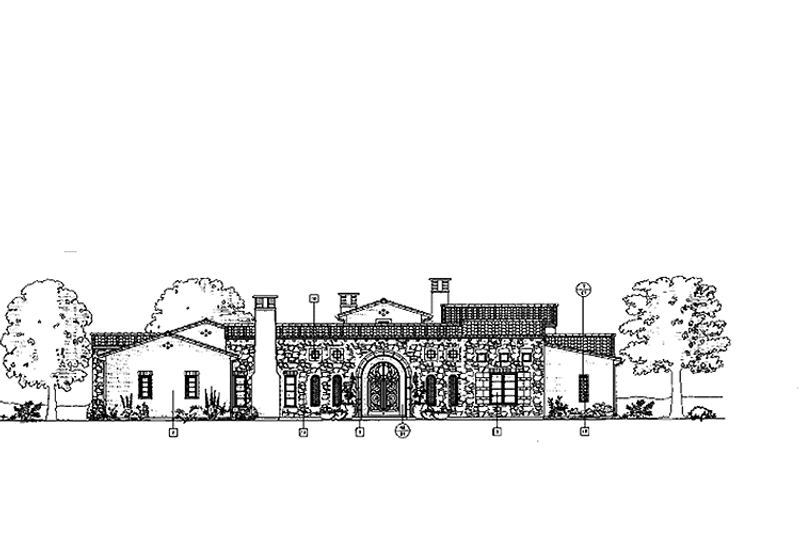

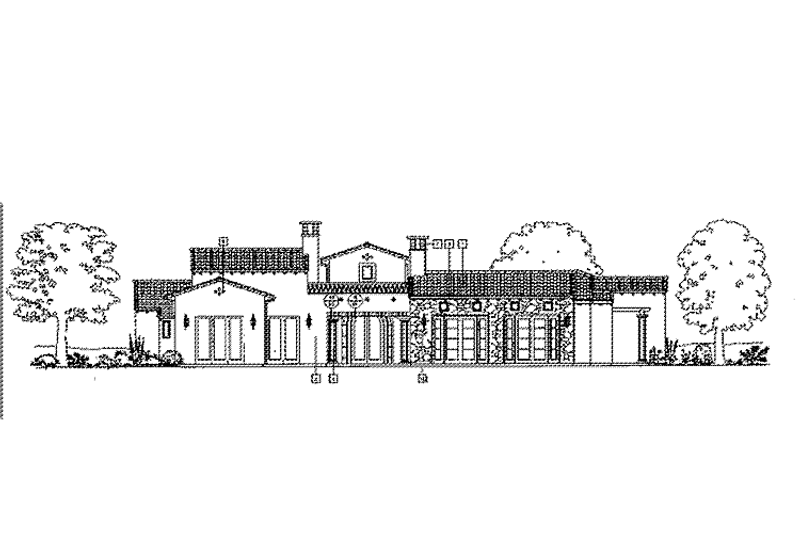

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for level lot, single layer concrete poured directly on grade.
Wood 2x6:
Wood 2x6
Additional Options
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
