PLAN 935-16

Select Plan Set Options

What's included?
Subtotal
NOW $1275.00
You save $225.00
(15% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 935-16

Key Specs


5326
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

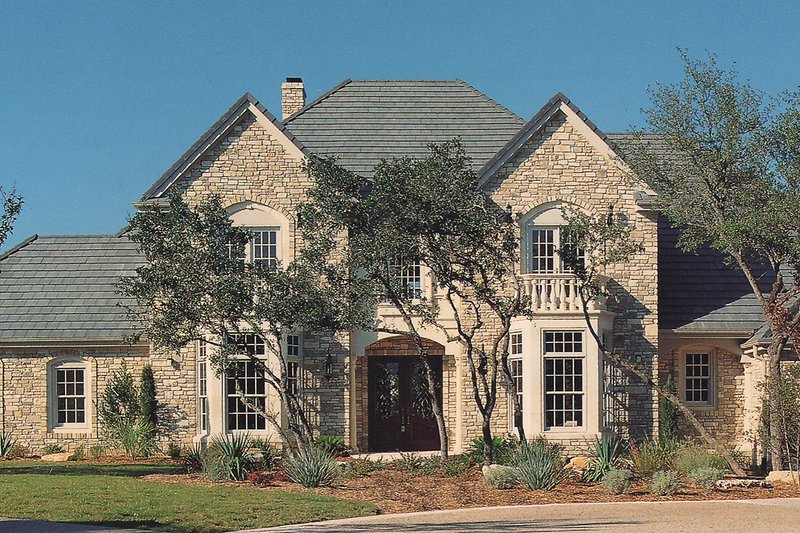

This traditional design offers an immense amount of room for family, entertaining and relaxing. The entry is flanked by ample dining space and a study/guest room with an ensuite bath. A gallery acts as the conduit connecting the palatial master suite with the living room and the kitchen/family space. Speaking of that master suite, it boasts a bedroom with a large window-lined sitting area. The master bath contains both tub and walk-in shower while the water closet is discreetly tucked away. Two full-size walk in closets make this a truly wonderful place to start your day or unwind. Upstairs a further three bedrooms await; two with their own balconies and each with a walk-in closet. A spacious game room allows ample room to spread out.

Floor Plans

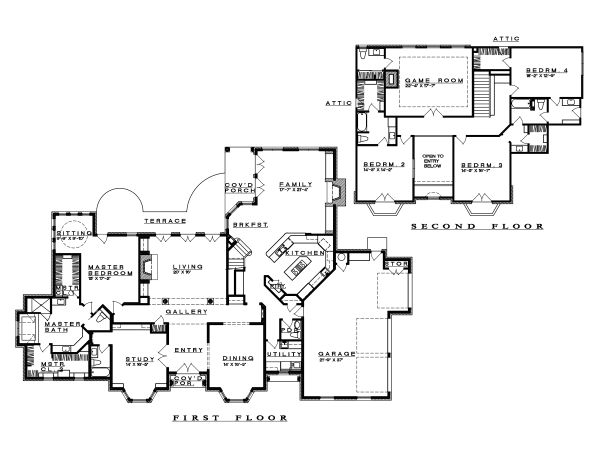

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 65' 11"
Height : 37' 2"
Width : 102' 3"
Area
Garage : 890 sq/ft
Main Floor : 3471 sq/ft
Porch : 150 sq/ft
Upper Floor : 1855 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 10/12
Roof Framing : Conventional
Roof Type : Tile
Secondary Pitch : 12/12
Exterior Wall Framing
Exterior Wall Finish : Stucco/Stone
Framing : 2x6 or 2x4
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
More
Additional Half Bath

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$1275.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1700.00
5 printed plan sets mailed to you.
8 Copy Set :
$1912.50
8 printed plan sets mailed to you.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$425.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$85.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$170.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
