PLAN 453-47

Key Specs

5343
sq ft

5
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This French country estate features a 2 story foyer that leads to a central grand room with French doors to the terrace. Fireplaces may be found in the formal dining room and study that flank the foyer. A guest apartment over the garage will house visiting or live-in relatives, or may be used as a maid's quarters. Sleeping quarters throughout this house offer wonderful amenities.

Floor Plans

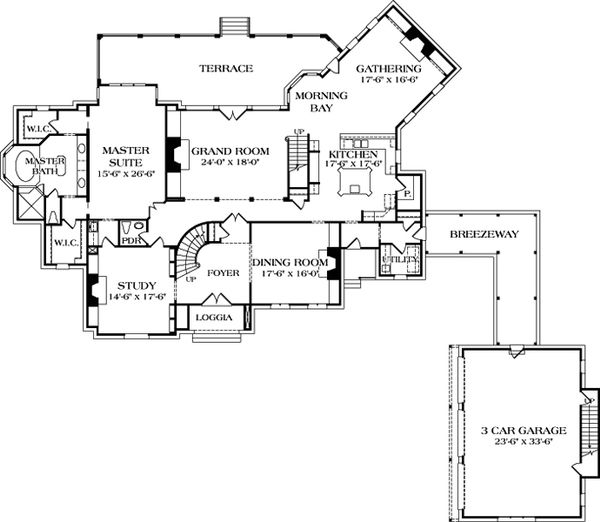

Floor Plan - Main Floor Plan

Reverse

European Floor Plan - Main Floor Plan Plan #453-47

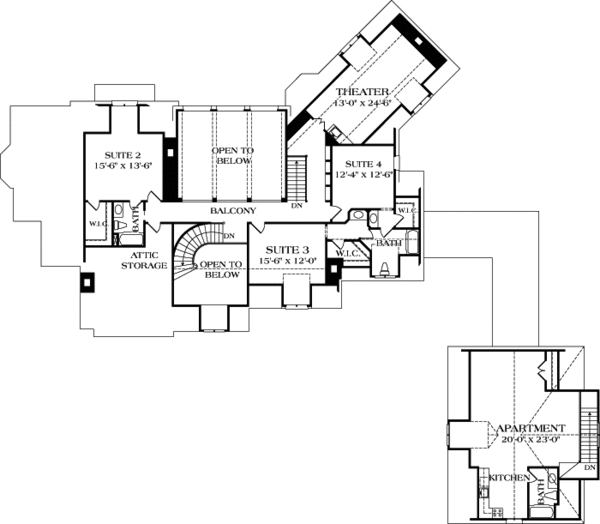

Floor Plan - Upper Floor Plan

Reverse

European Floor Plan - Upper Floor Plan Plan #453-47

Full Specs & Features

Dimension

Depth : 104' 4"
Height : 34'
Width : 121' 2"

Area

First Floor: 3560 sq/ft height 10'
Second Floor: 1783 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 10'
Upper Ceiling Ft : 9'

Roof

Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone
Framing : 2"x4"

Bedroom Features

Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Play Flex Room
Wet Bar

Garage Features

Detached Garage
Oversized Garage
Side Entry Garage

Lot Characteristics

Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

Outdoor Spaces

Balcony
Breezeway
Covered Front Porch
Covered Rear Porch

Jack & Jill Bath
Suited For Vacation Home
Unusual Shape

Structural Information Provided

Foundation Drawing

Rooms

3rd BR Closet:

32 sq/ft width 4' x depth 8'

Bedroom 2:

209 sq/ft width 15' 6" x depth 13' 6"

Bedroom 2 Closet:

40 sq/ft width 5' x depth 8'

Bedroom 3:

186 sq/ft width 15' 6" x depth 12'

Bedroom 3 Closet:

40 sq/ft width 5' x depth 8'

Bedroom 4:

154 sq/ft width 12' 4" x depth 12' 6"

Bedroom 4 Closet:

22 sq/ft width 4' x depth 5' 6"

Bonus Room - Finished:

460 sq/ft width 20' x depth 23'

Dining Room:

280 sq/ft width 17' 6" x depth 16'

Foyer:

183 sq/ft width 14' 6" x depth 12' 8"

Game Room:

128 sq/ft width 9' 6" x depth 13' 6"

Garage:

787 sq/ft width 23' 6" x depth 33' 6"

Gathering Room:

306 sq/ft width 17' 6" x depth 17' 6"

Hall Closet:

11 sq/ft width 4' x depth 2' 10"

Kitchen:

306 sq/ft width 17' 6" x depth 17' 6"

Living Room:

432 sq/ft width 24' x depth 18'

Master Bedroom:

410 sq/ft width 15' 6" x depth 26' 6"

Master Closet:

52 sq/ft width 7' 6" x depth 7'

Study:

253 sq/ft width 14' 6" x depth 17' 6"

Utility Room:

40 sq/ft width 7' 4" x depth 5' 6"

Walk-In Closet:

7 sq/ft width 3' 6" x depth 2'

What's Included In This Plan Set

See a sample plan set This plan typically includes:

Dimensioned and detailed Foundation plan (type as listed on home plan description)
Dimensioned and detailed floor plans
Framing plans (framing may be shown on floor plans in some cases.)
Complete front, side and rear elevations
Roof plan
Typical building sections (as deemed necessary for construction)
Typical foundation details, wall sections, and cornice details necessary for construction
Separate electrical plan (may be shown on floor plans in some cases)

» See important information before purchasing.

Plan Set

PDF Set : $1800.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1800.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Additional Construction Sets : $40.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $80.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $31.20	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $160.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Material List : $80.00	A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets : $0.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
