PLAN 132-275
Key Specs
5367
sq ft
4
Beds
4.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 132-275
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description
This Craftsman gem has a lot to offer, with three floors of livability. The main level is home to open areas, such as the kitchen and family, dining, and living rooms. The master suite is full of amenities that will surely please. Use the covered deck with outdoor fireplace yearround. Downstairs, host guests with two bedrooms, a second master, and a rec room. The secluded second-floor loft suits a home office.
Full Specs & Features
Dimension
Depth : 68' 6"
Height : 22' 4"
Width : 93'
Height : 22' 4"
Width : 93'
Area

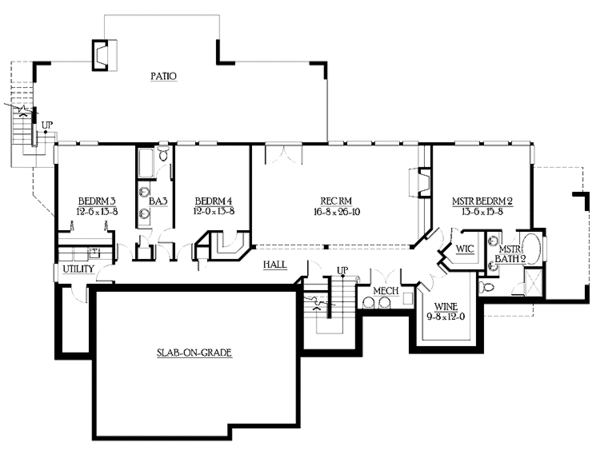

Basement Living: 2224 sq/ft

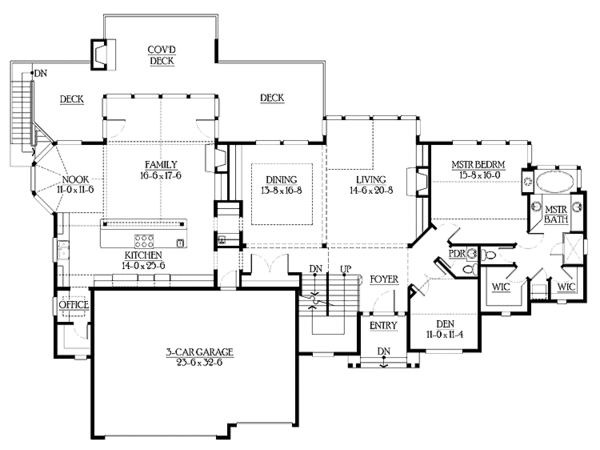

First Floor: 2636 sq/ft
Garage: 771 sq/ft

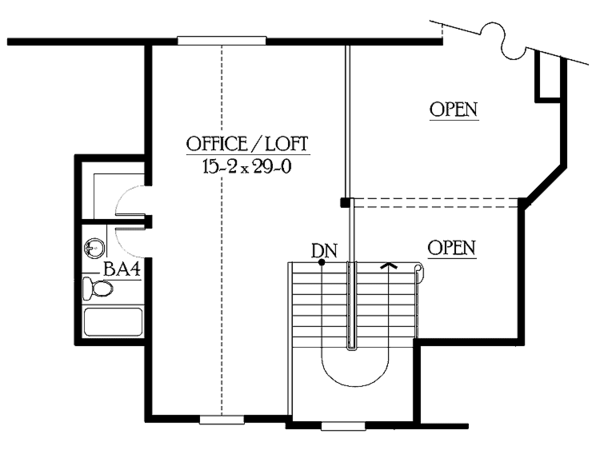

Second Floor: 507 sq/ft
First Floor: 2636 sq/ft
Garage: 771 sq/ft
Second Floor: 507 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Shingle/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Wine Cellar
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Open Floor Plan
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Wine Cellar
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Outdoor Fireplace
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Outdoor Fireplace
More
Jack & Jill Bath
Rooms
Bedroom 2:
211 sq/ft width 13' 6" x depth 15' 8"
Bedroom 3:
170 sq/ft width 12' 6" x depth 13' 8"
Bedroom 4:
164 sq/ft width 12' x depth 13' 8"
Dining Room:
227 sq/ft width 13' 8" x depth 16' 8"
Family Room:
288 sq/ft width 16' 6" x depth 17' 6"
Garage:
763 sq/ft width 23' 6" x depth 32' 6"
Kitchen:
357 sq/ft width 14' x depth 25' 6"
Living Room:
299 sq/ft width 14' 6" x depth 20' 8"
Loft:
439 sq/ft width 15' 2" x depth 29'
Master Bedroom:
250 sq/ft width 15' 8" x depth 16'
What's Included In This Plan Set
Purchasing a CAD set gives you a multi-build license. The 5 copy set allows you to build the home one time.
If you are building this plan in the state of Washington, please call us before placing your order.
- Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
- Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
- Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
- Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
- Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
- Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
- Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
- Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $2700.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Unlimited Build
: $4300.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $250.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
