PLAN 46-740
Key Specs
5377
sq ft
3
Beds
2
Baths
1
Floors
3
Garages
Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 46-740
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

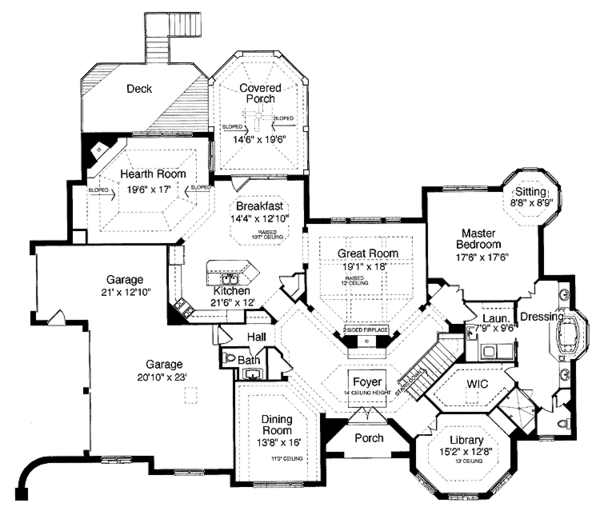

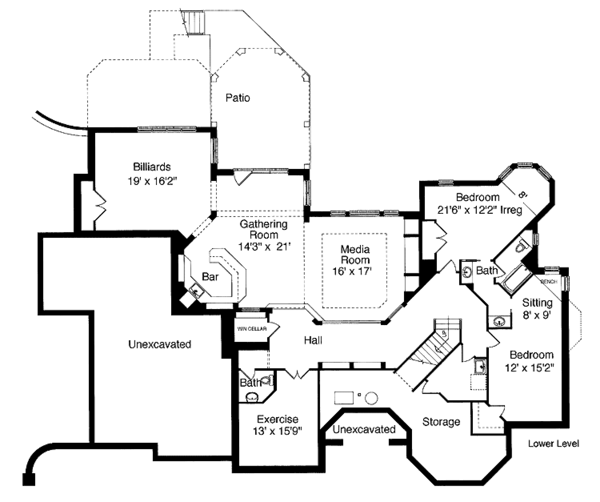

Stone accents and a charming turret enhance the exterior of this spacious plan. A beamed ceiling highlights the great room, which shares a two-sided fireplace with the foyer; another fireplace can be found in the hearth room, which overlooks a covered rear porch and deck area. A resplendent master suite, with easy access to the laundry area, sits to the right of the plan and boasts a private sitting bay, a dual-vanity dressing area, and a large walk-in closet. The lower level includes media, billiards, and exercise rooms, two bedrooms, and a gathering area that opens to a patio.
