PLAN 17-2629
Photographs may show modified designs.
- Jump to:
- All (10)
- Floor plans (2)
Get Personalized Help
Key Specs
5548
sq ft
5
Beds
4.5
Baths
2
Floors
3
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-2629
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans

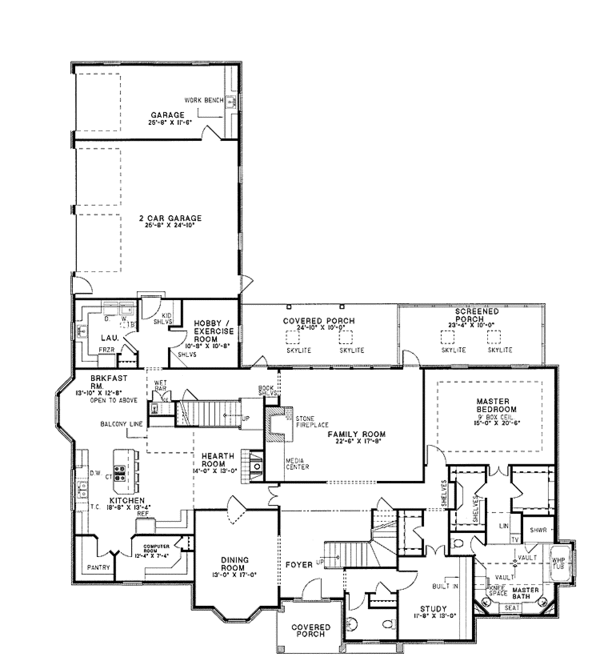

Floor Plan - Main Floor

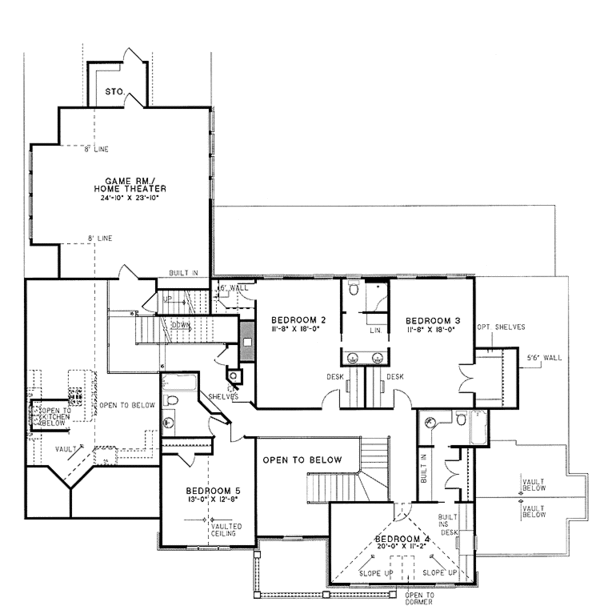

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 93' 2"
Width : 81' 6"
Area
First Floor: 3276 sq/ft height 9'
Second Floor: 2272 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Media Room
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Rear Porch
Rooms
3rd BR Closet:
53 sq/ft width 8' 9" x depth 6' 1"
Bathroom 2:
60 sq/ft width 11' 4" x depth 5' 4"
Bedroom 2:
210 sq/ft width 18' x depth 11' 8"
Bedroom 2 Closet:
36 sq/ft width 6' x depth 6'
Bedroom 3:
210 sq/ft width 18' x depth 11' 8"
Bedroom 3 Closet:
36 sq/ft width 6' x depth 6'
Bedroom 4:
164 sq/ft width 13' x depth 12' 8"
Bedroom 4 Closet:
17 sq/ft width 6' 10" x depth 2' 6"
Bedroom 5:
223 sq/ft width 20' x depth 11' 2"
Breakfast Room:
175 sq/ft width 13' 10" x depth 12' 8"
Den/Office or Bedroom 1:
151 sq/ft width 13' x depth 11' 8"
Dining Room:
221 sq/ft width 17' x depth 13'
Garage:
932 sq/ft width 25' 8" x depth 36' 4"
Gathering Room:
182 sq/ft width 14' x depth 13'
Hall:
width 3' 6" x depth 0"
Hall Bathroom:
68 sq/ft width 7' 3" x depth 9' 6"
Hall Closet:
29 sq/ft width 7' 4" x depth 4'
Kitchen:
248 sq/ft width 18' 8" x depth 13' 4"
Master Bathroom:
203 sq/ft width 13' x depth 15' 8"
Master Bedroom:
307 sq/ft width 20' 6" x depth 15'
Master Closet:
58 sq/ft width 7' 4" x depth 8'
Porch - Rear:
481 sq/ft width 48' 2" x depth 10'
Powder Room:
43 sq/ft width 8' 4" x depth 5' 2"
Study:
591 sq/ft width 24' 10" x depth 23' 10"
Walk-In Closet:
67 sq/ft width 7' 10" x depth 8' 8"
Wash Room:
110 sq/ft width 10' x depth 11'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1480.00
$1560.00
$1760.00
$2040.00
$2960.00
$2960.00
Foundation
$0.00
$0.00
$239.20
$239.20
Framing
$0.00
$239.20
Additional Options
$239.20
$64.00
$80.00
$396.00
$31.20
$119.20
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
