Dream House Plan - Mediterranean Exterior - Front Elevation Plan #1017-43

Dream House Plan - Mediterranean Floor Plan - Main Floor Plan #1017-43

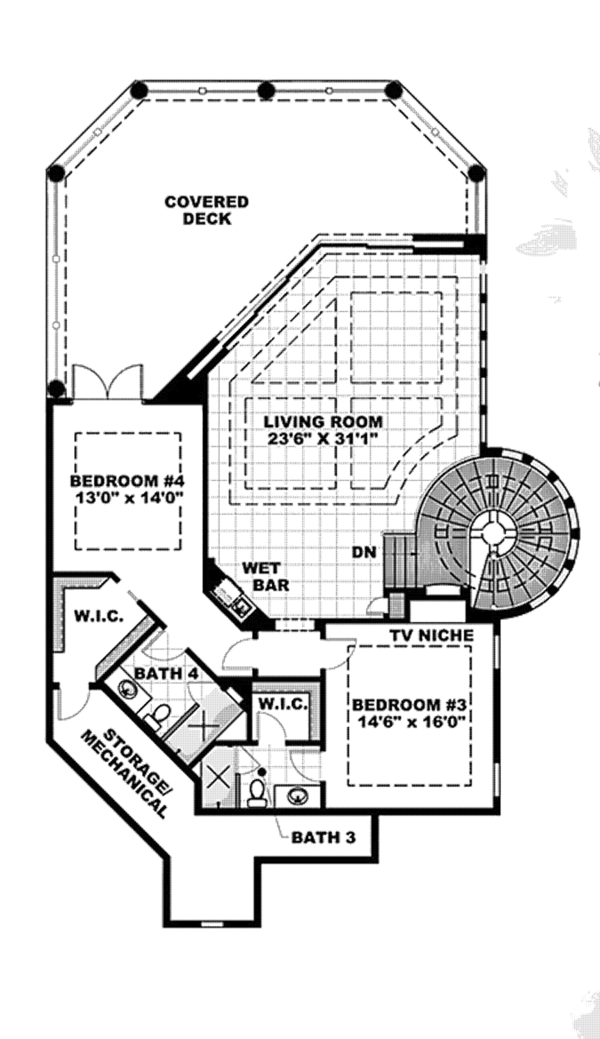

Dream House Plan - Mediterranean Floor Plan - Upper Floor Plan #1017-43

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

5796
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

	Additional Construction Sets$76.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$85.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

NOW $4250.00

You save $750.00 (15% savings)

Sale ends soon!

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1017-43

Home > Style > Mediterranean

Key Specs

5796
sq ft

4
Beds

4.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Note: First story walls are constructed of concrete block; upper stories are 2 x 6 wood-framed.

Floor Plans

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 114' 10"

Height : 30'

Width : 101' 4"

Area

First Floor: 4335 sq/ft

Garage: 917 sq/ft

Second Floor: 1461 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Tile

Exterior Wall Framing

Exterior Wall Finish : Stucco

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Master Sitting Area

Open Floor Plan

Unfinished Future Space

Vaulted / Cathedral Ceilings

Rooms

Bedroom 2:

252 sq/ft width 14' x depth 18'

Bedroom 3:

232 sq/ft width 14' 6" x depth 16'

Bedroom 4:

182 sq/ft width 13' x depth 14'

Dining Room:

265 sq/ft width 14' 4" x depth 18' 6"

Family Room:

807 sq/ft width 25' 6" x depth 31' 8"

Garage:

831 sq/ft width 22' 8" x depth 36' 8"

Kitchen:

436 sq/ft width 25' 8" x depth 17'

Living Room:

370 sq/ft width 19' 4" x depth 19' 2"

Master Suite:

416 sq/ft width 17' x depth 24' 6"

Study:

139 sq/ft width 11' 4" x depth 12' 4"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

Questions? Call 1-800-447-0027

Plan Set

CAD Set:
$4250.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$4250.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$4250.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Additional Construction Sets:
$76.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
