PLAN 1069-37
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

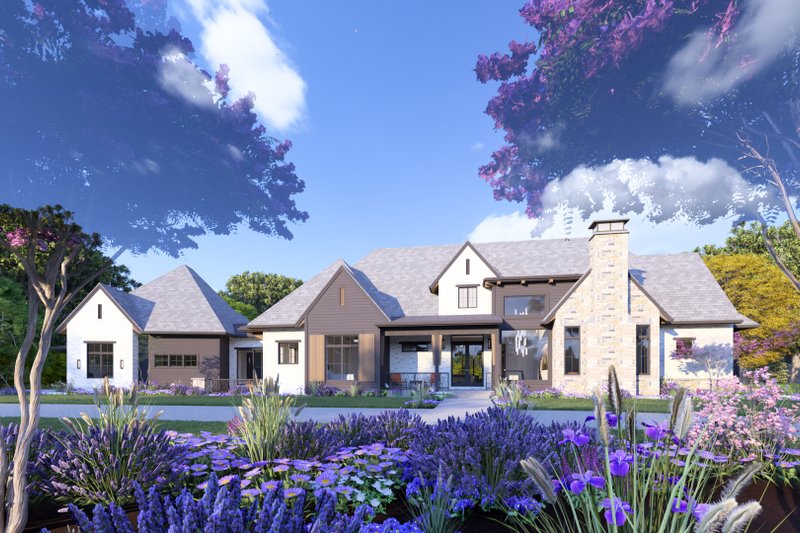

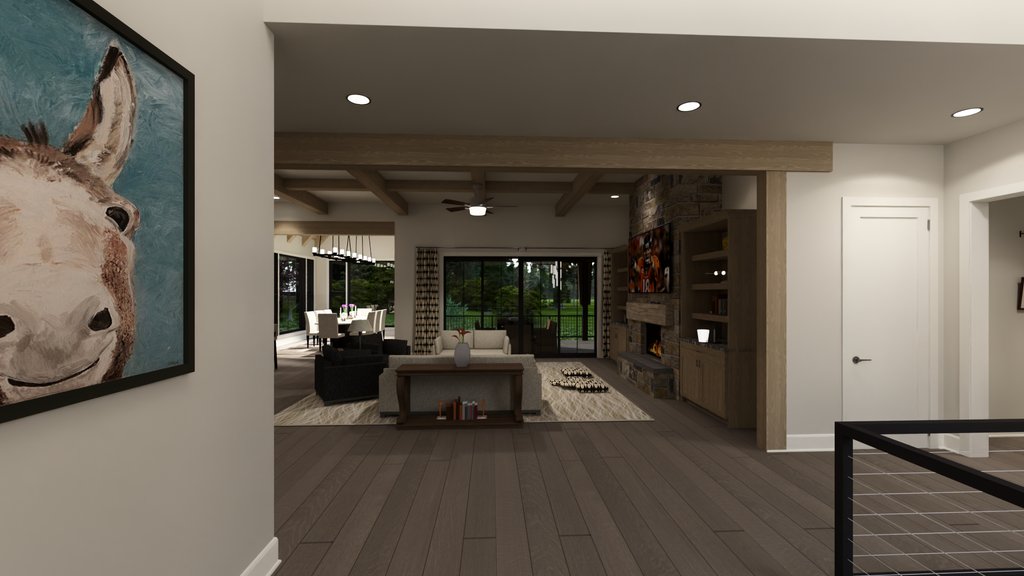

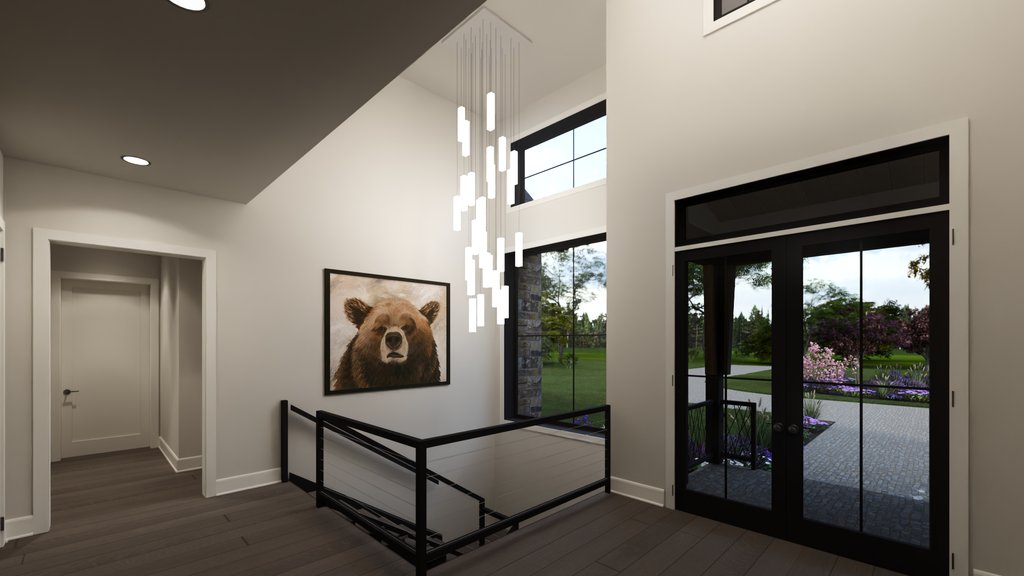

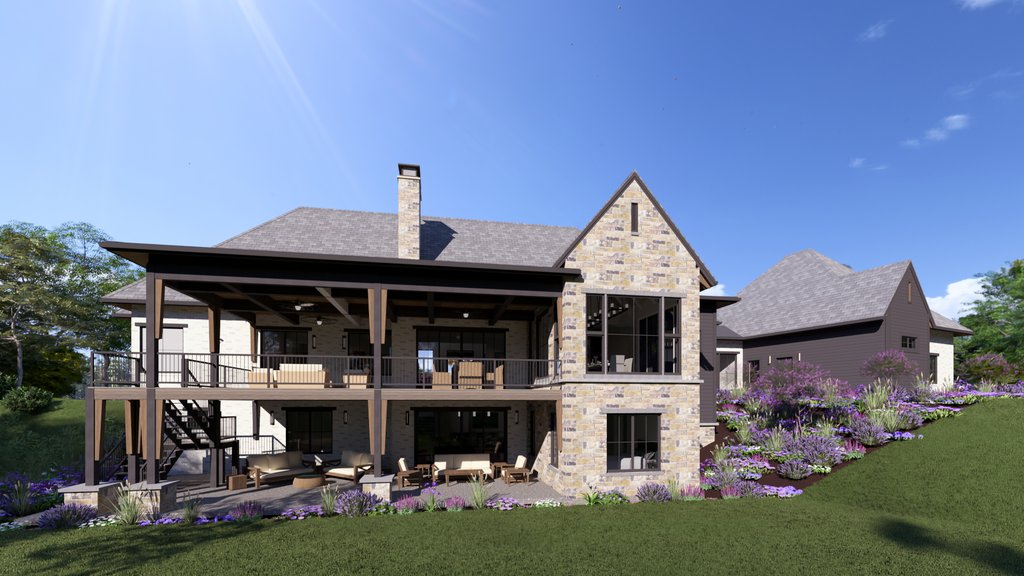

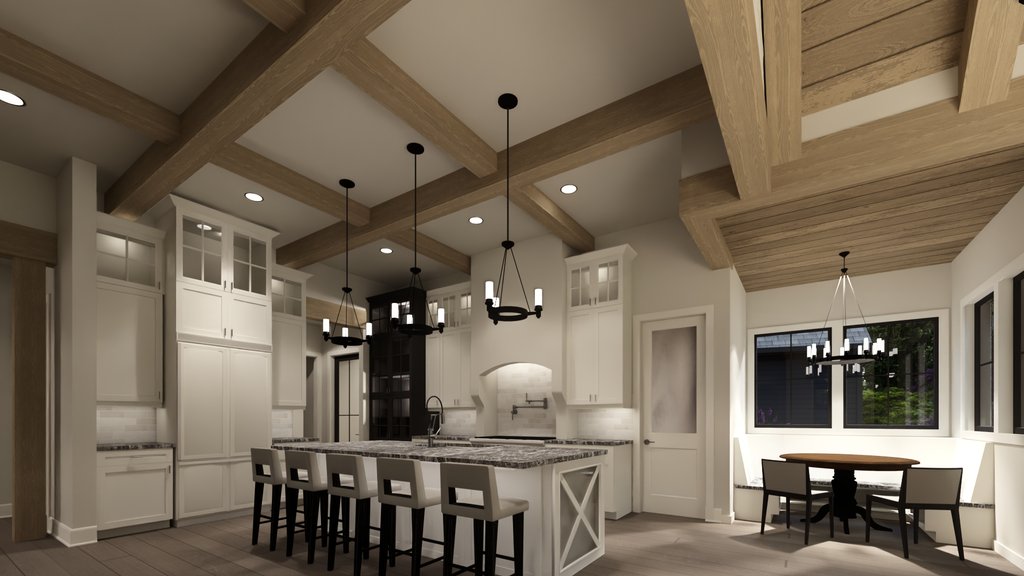

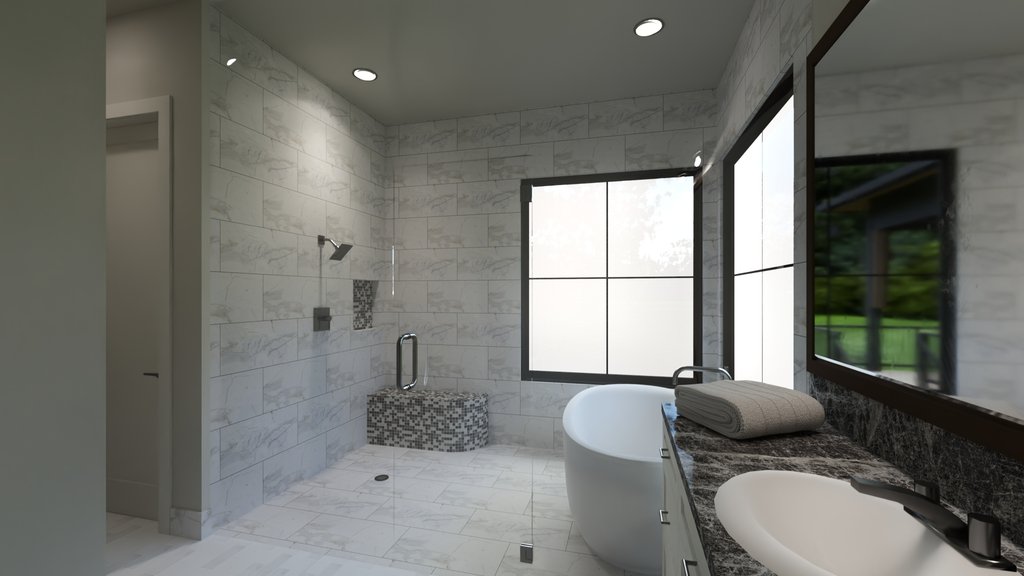

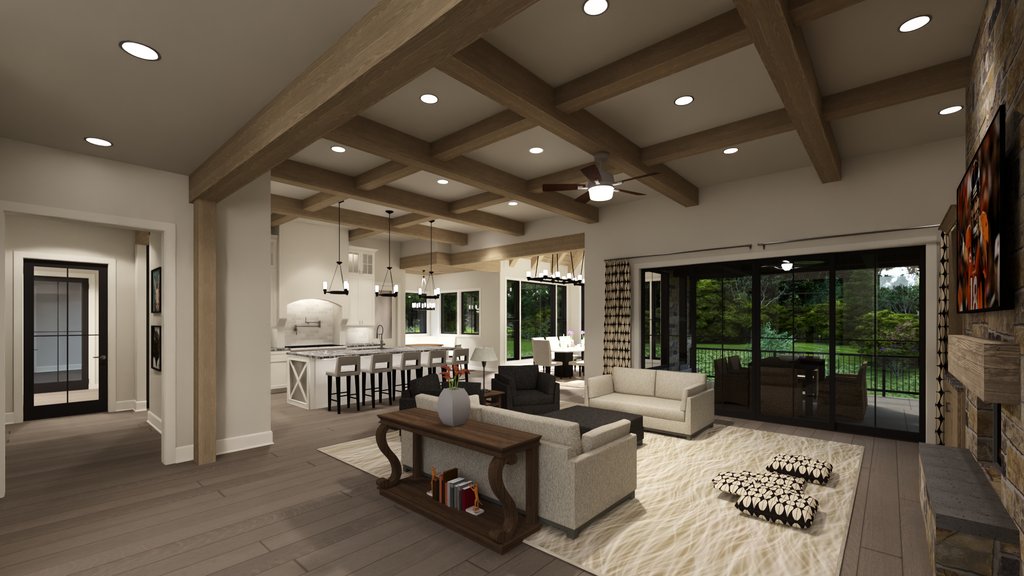

Modern Tudor exterior design with a mix of modern and traditional interiors. Large double owner bathrooms, spacious and open living room, dining room, kitchen arrangement. The entry foyer is a welcoming voluminous space with a grand stair to the basement.
Floor Plans

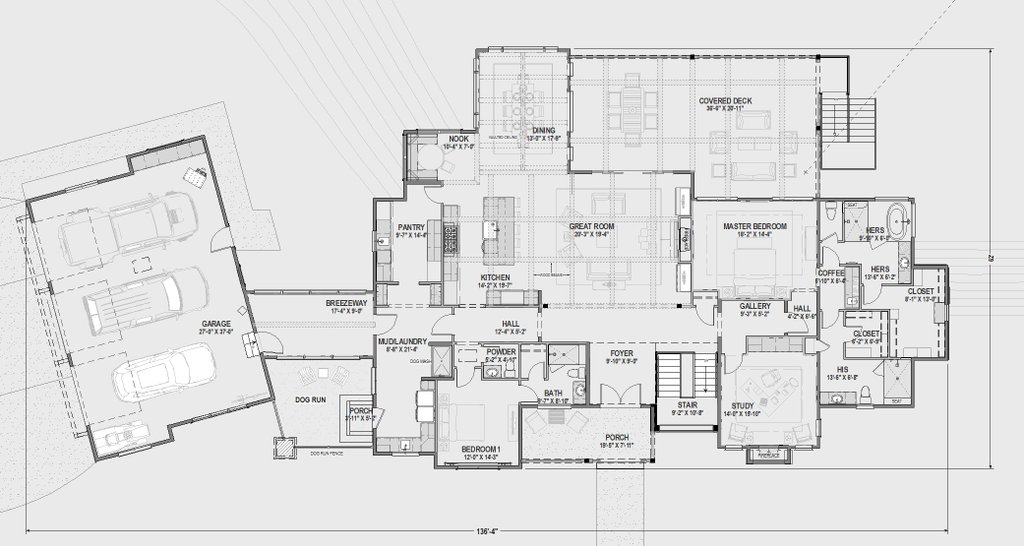

Floor Plan - Main Floor

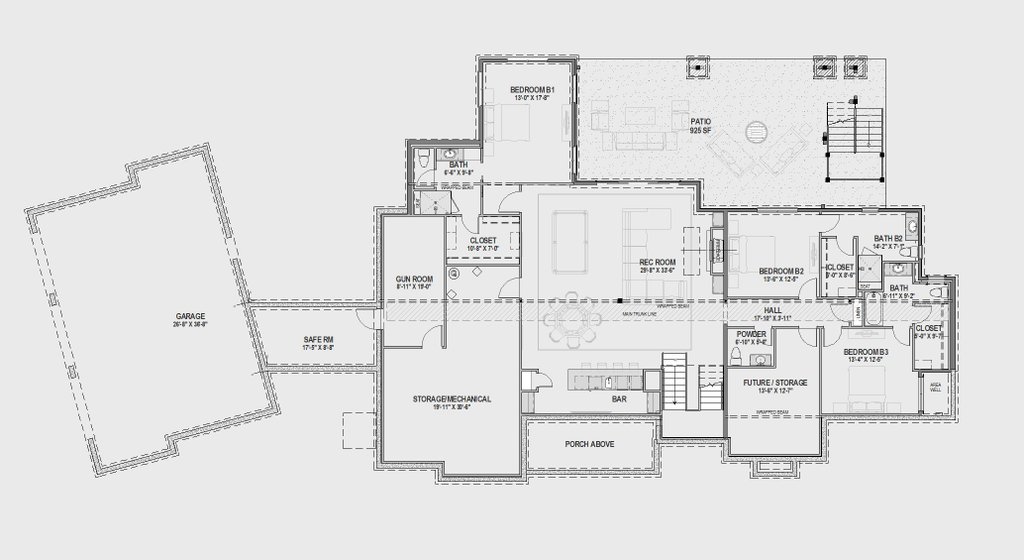

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 62'
Height : 31' 8"
Width : 136' 4"
Area
Basement : 2381 sq/ft
Decks : 697 sq/ft
Garage : 1113 sq/ft
Lower Floor : 2381 sq/ft
Main Floor : 3536 sq/ft
Patios : 925 sq/ft
Porch : 154 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling

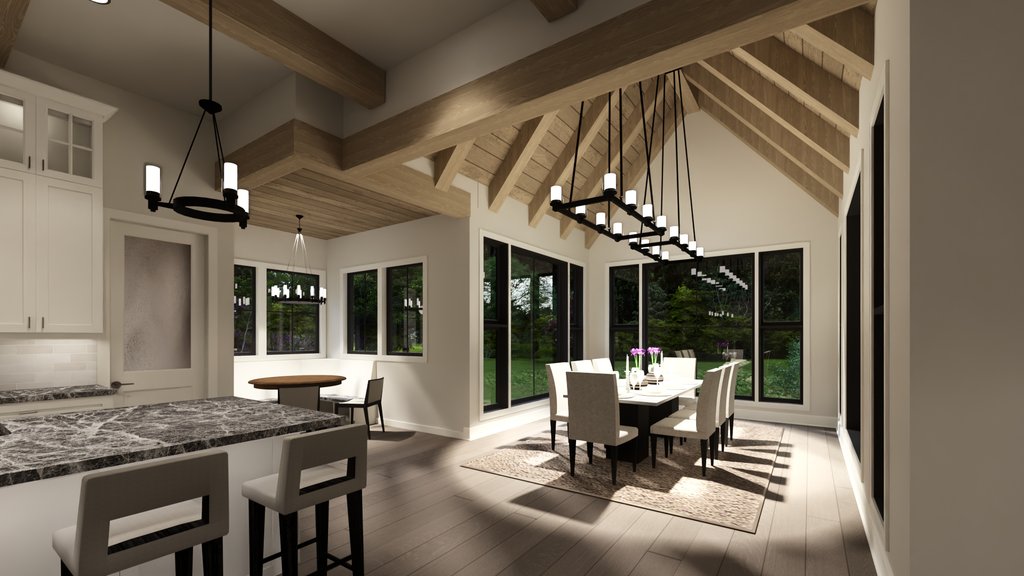

Ceiling Details : Raised entry, vaulted dining, beamed dining, living, kitchen
Garage Ceiling : 10'
Lower Ceiling : 10'
Main Ceiling : 10'
Roof
Primary Pitch : 12/12
Roof Framing : trus and stick
Roof Load : per local code
Roof Type : hip and gable
Secondary Pitch : 3/12
Exterior Wall Framing
Exterior Wall Finish : stone, brick, lap siding
Framing : 2x6
Insulation : per local code
Bedroom Features
Guest Suite
Lower Level Bedrooms
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook

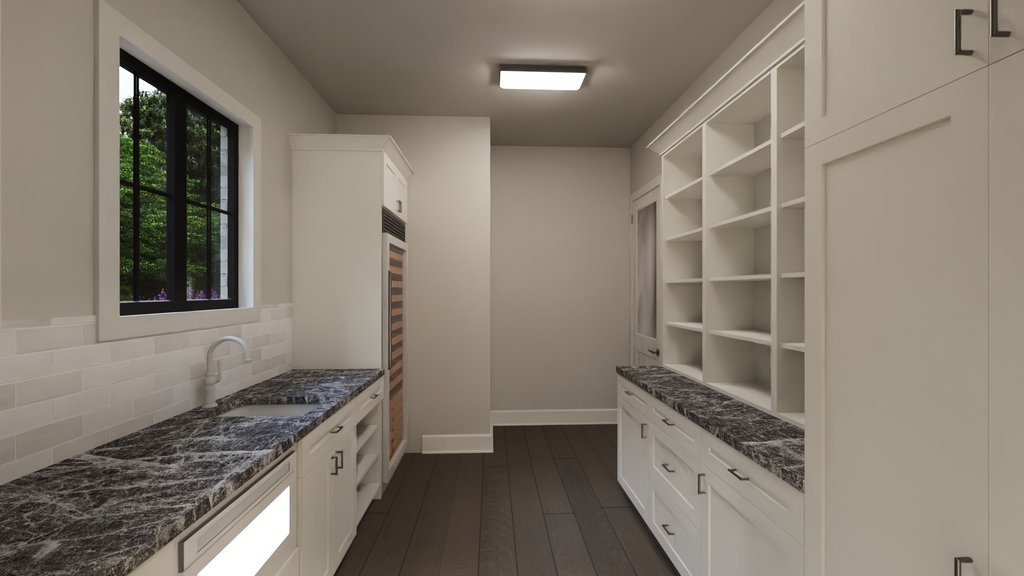

Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Mud Room
Storage Area
Unfinished Future Space
Wet Bar
Garage Features
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot
Outdoor Spaces
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill
More
Additional Half Bath
Jack & Jill Bath
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.

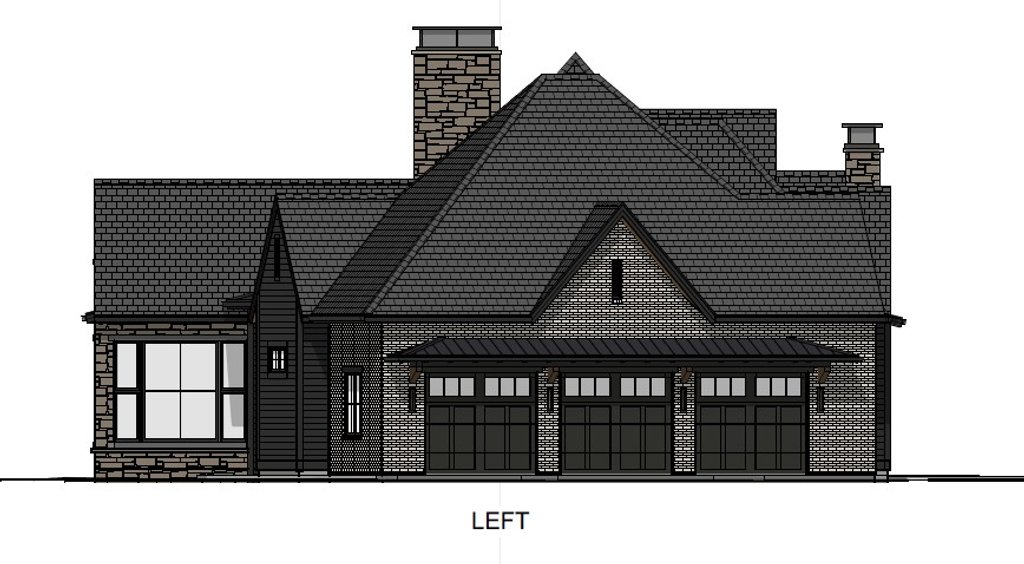

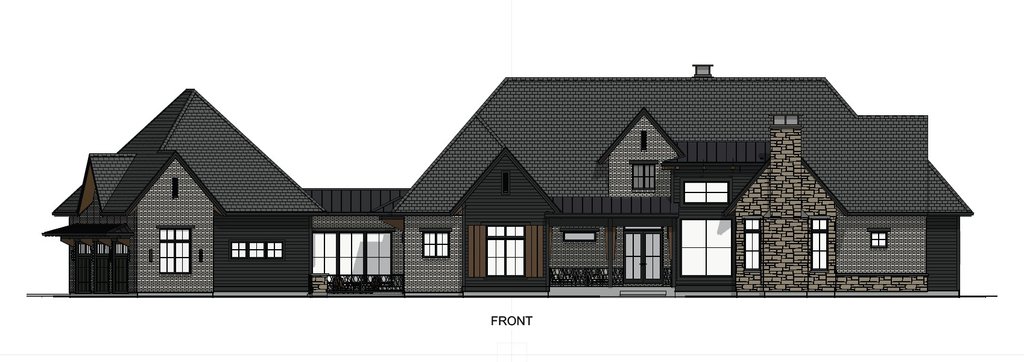

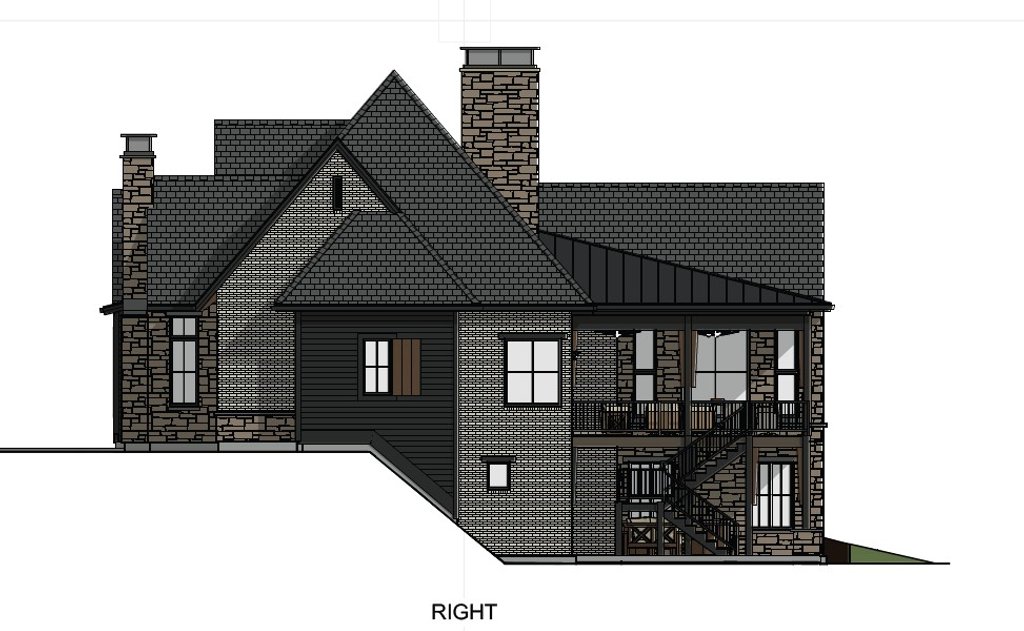

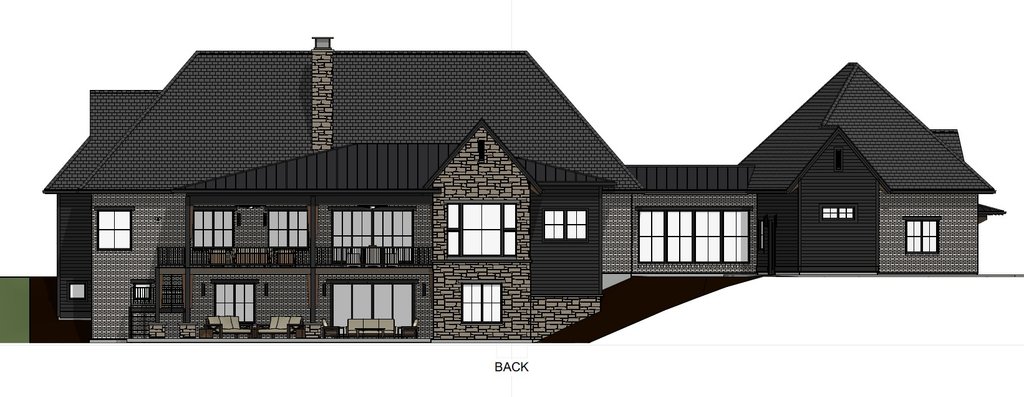

- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$1487.50
$1487.50
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set:
$1997.50
$1997.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$2125.00
$2125.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$2125.00
$2125.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$2762.50
$2762.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Eight Copy and PDF Set:
$2762.50
$2762.50
8 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Five Copy and PDF Set Unlimited Build:
$2762.50
$2762.50
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Walk Out Basement:
$0.00
$0.00
Ideal for a sloping lot, lower level with outdoor access.
Basement:
$255.00
$255.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$255.00
$255.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$255.00
$255.00
Ideal for sloping lot, lower level of home partially underground.
Monolithic Slab:
$255.00
$255.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$255.00
$255.00
Ideal for level lot, single layer concrete poured directly on grade.
Partial Basement:
$425.00
$425.00
Ideal for builds where a full basement is not necessary or site conditions don’t allow for excavation. Typically combined with a slab or crawlspace.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$425.00
$425.00
Wood 2x4 Exterior Walls
Block:
$637.50
$637.50
Concrete Block Exterior Walls (Upper Levels may be wood-framed)
Insulated Concrete Forms:
$637.50
$637.50
ICF Block Exterior Walls (Upper Levels may be wood-framed)
Structural Insulated Panels:
$637.50
$637.50
Exterior walls are designed to use SIP construction
Wood 2x8:
$637.50
$637.50
Wood 2x8 Exterior Walls
Concrete Masonry Unit and Wood 2x6:
$850.00
$850.00
CMU on Main Floor and Wood 2x6 Upper level(s)
Additional Options
Right-Reading Reverse:
$255.00
$255.00
Choose this option to reverse your plans and to have the text and dimensions readable.
2 Car Front-Loading Garage:
$255.00
$255.00
Changes garage to front load
2 Car Side-Loading Garage:
$0.00
$0.00
Changes garage to side load
3 Car Front-Loading Garage:
$255.00
$255.00
Changes garage to front load
3 Car Side-Loading Garage:
$0.00
$0.00
Changes garage to side load
Additional Construction Sets:
$170.00
$170.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$170.00
$170.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Mirror Reversed Sets:
$255.00
$255.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License:
$255.00
$255.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
