PLAN #117-828

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

Log cabin with open living area and upper level storage loft.

Floor Plans

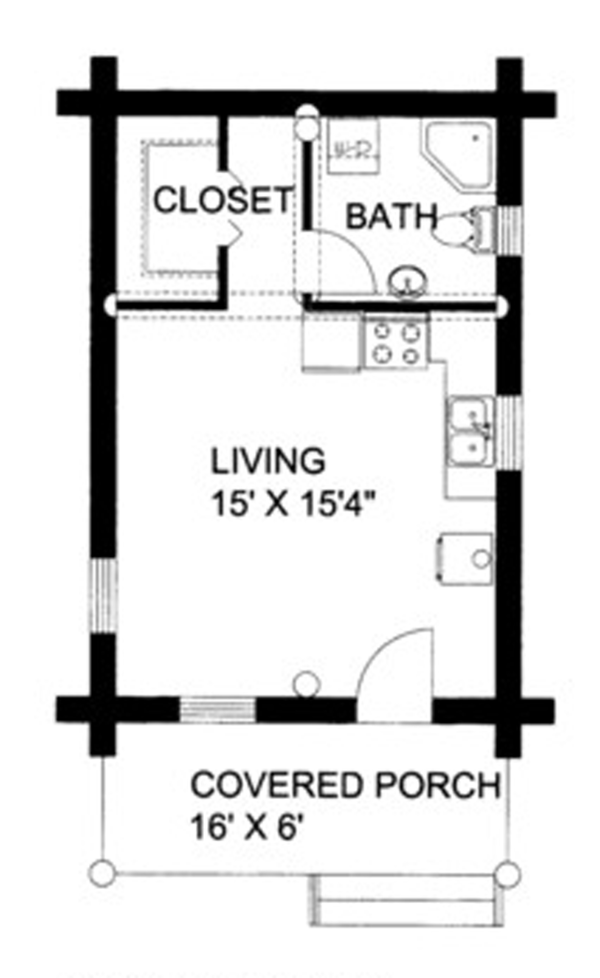

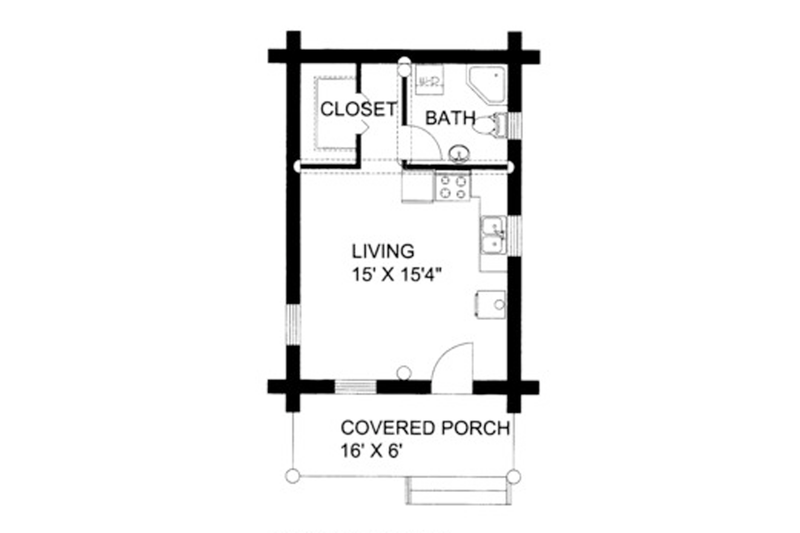

Floor Plan - Main Floor Plan
Log Floor Plan - Main Floor Plan Plan #117-828

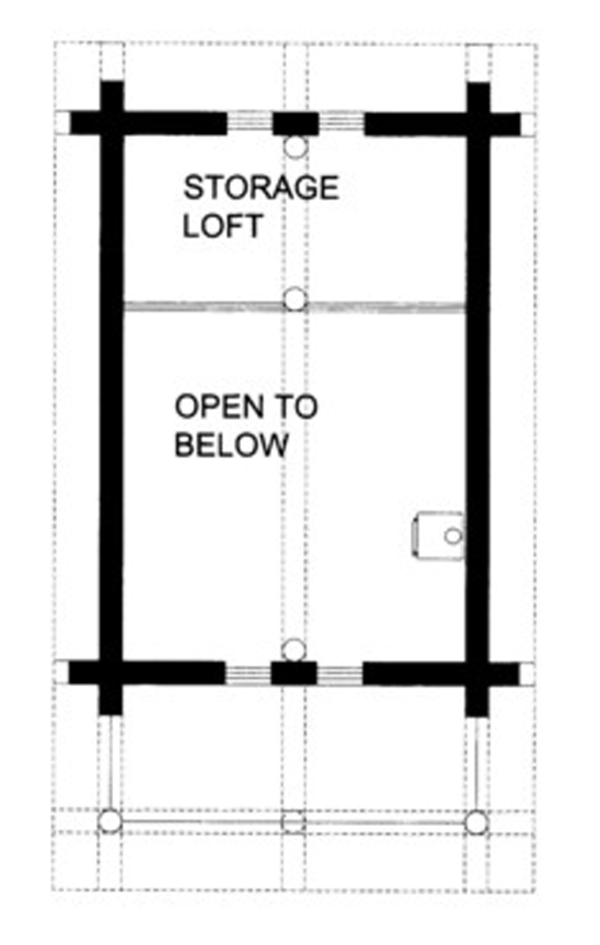

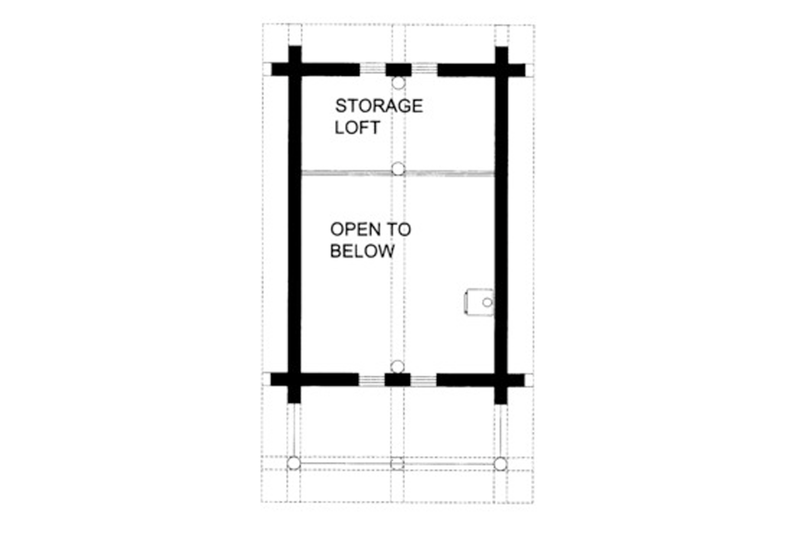

Floor Plan - Upper Floor Plan
Log Floor Plan - Upper Floor Plan Plan #117-828

Full Specs & Features

Depth : 24'
Height : 20' 6"
Width : 16'
First Floor: 395 sq/ft
Second Floor: 200 sq/ft
Bedroom Features
Walk In Closet
Additional Room Features
Great Room Living Room
Outdoor Spaces
Covered Front Porch
Loft Balcony

Covered Front Porch:

96 sq/ft width 16' x depth 6'

Living Area:

width 15' x depth 15' 4"


200 sq/ft

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

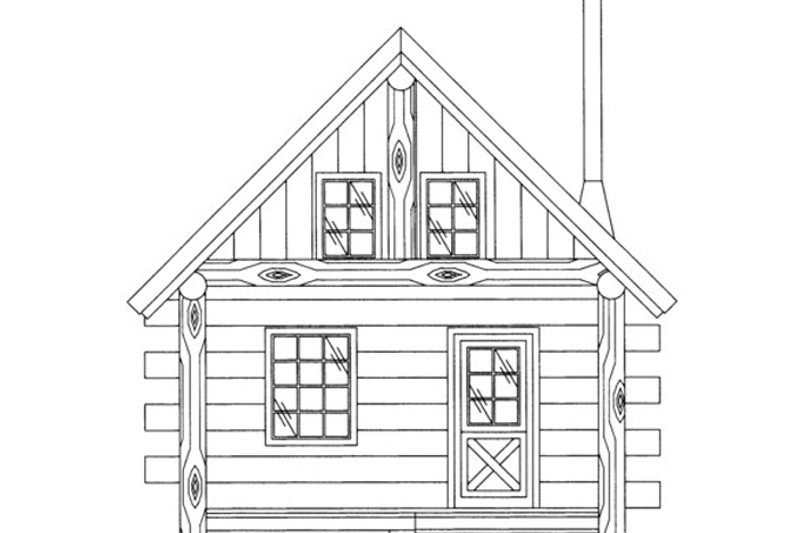

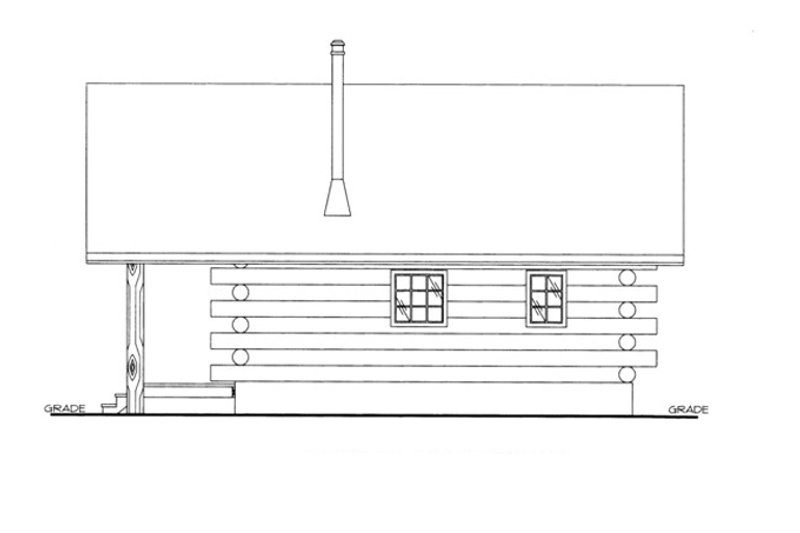

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
8 Copy Set :
8 printed plan sets mailed to you.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Single Set :
One printed set for bidding purposes only. Not a legal building set for construction.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
