Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

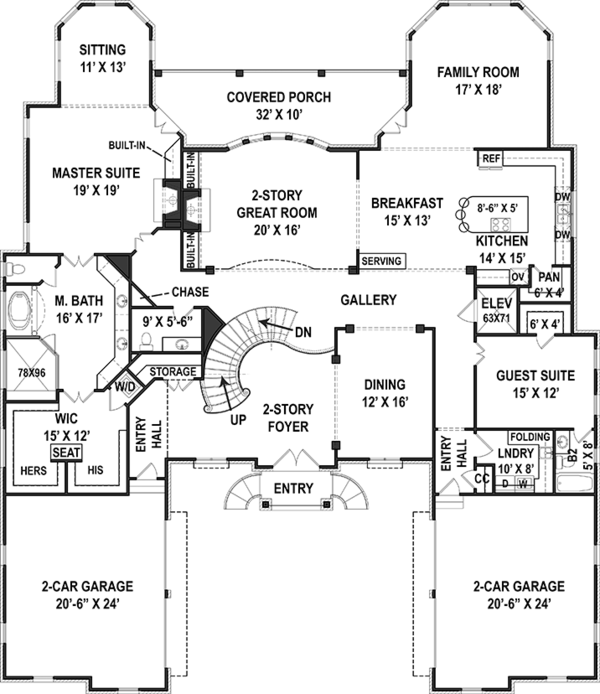

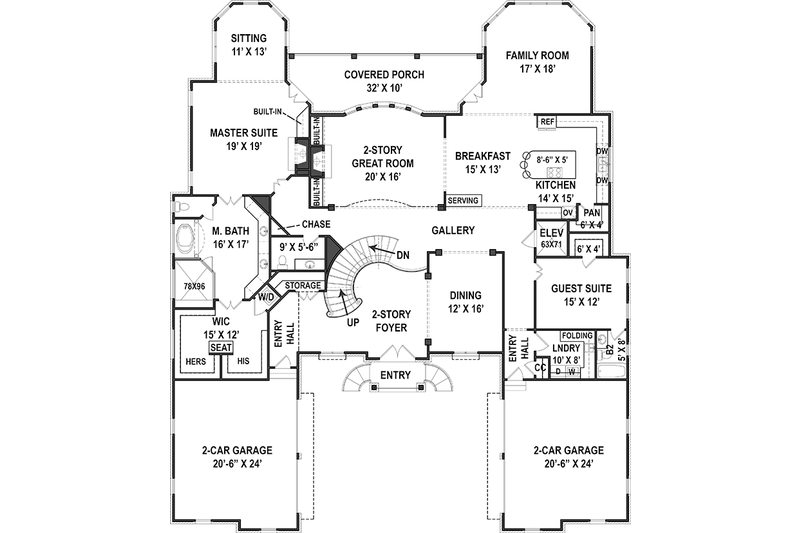

Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #119-423

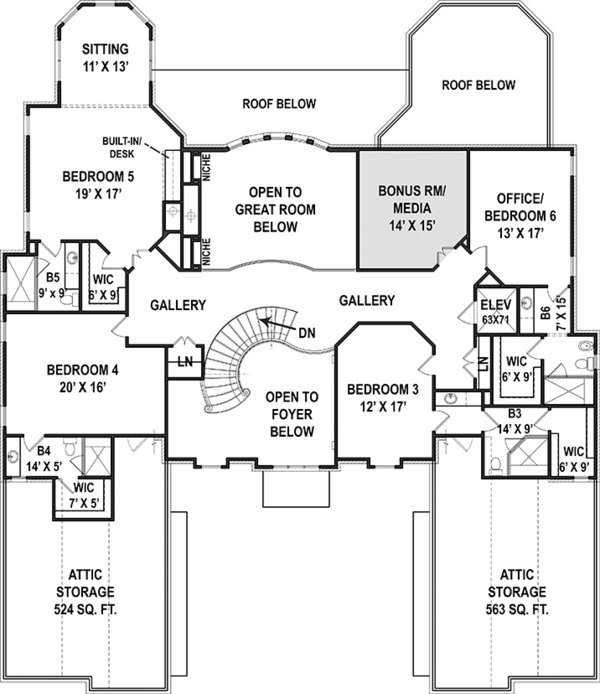

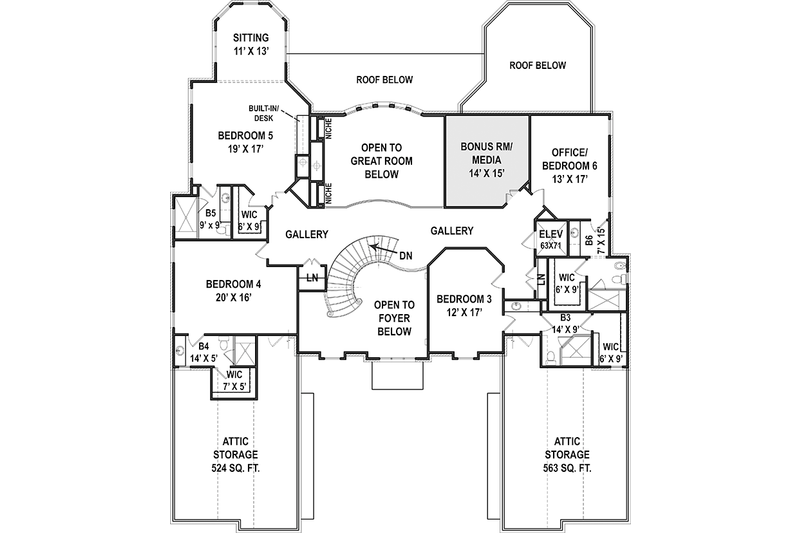

Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #119-423

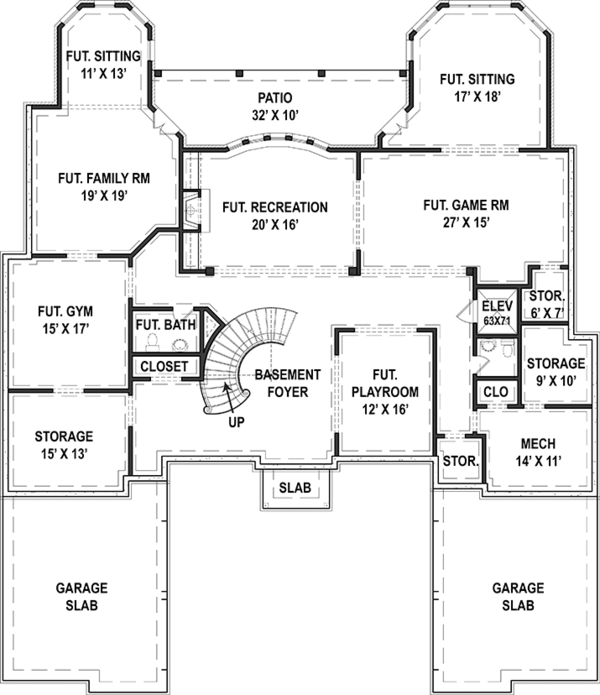

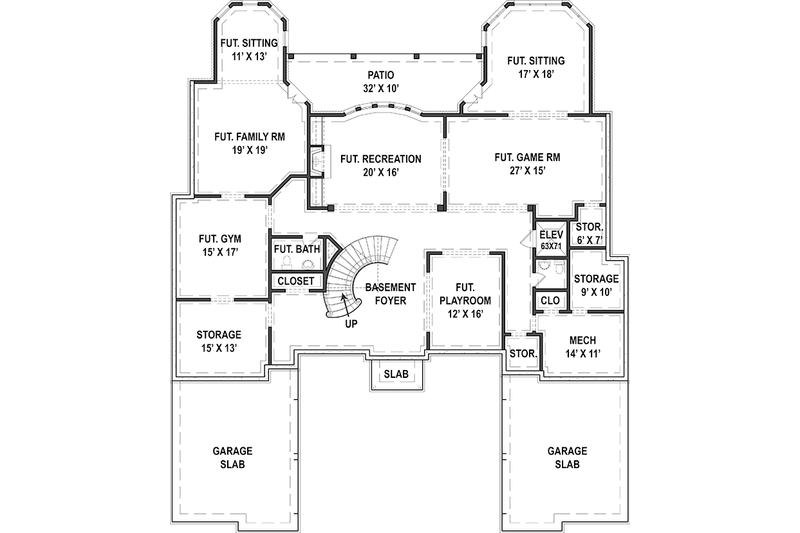

Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #119-423

Full Specs & Features

Depth : 88'
Height : 36'
Width : 76'
Basement Unfinished: 3581 sq/ft
Bonus: 209 sq/ft
First Floor: 3699 sq/ft height 10'
Garage: 1033 sq/ft
Second Floor: 2373 sq/ft height 9'
Storage: 1087 sq/ft
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Master Sitting Area
Media Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Wheelchair Adaptable

Attic Storage 1:

524 sq/ft

Attic Storage 2:

563 sq/ft

Bath 3:

126 sq/ft width 14' x depth 9'

Bath 4:

70 sq/ft width 14' x depth 5'

Bath 5:

81 sq/ft width 9' x depth 9'

Bath 6:

105 sq/ft width 7' x depth 15'

Bedroom 3:

204 sq/ft width 12' x depth 17'

Bedroom 3 Closet:

54 sq/ft width 6' x depth 9'

Bedroom 4:

320 sq/ft width 20' x depth 16'

Bedroom 4 Closet:

35 sq/ft width 7' x depth 5'

Bedroom 5:

323 sq/ft width 19' x depth 17'

Bedroom 5 Closet:

54 sq/ft width 6' x depth 9'

Bedroom 5 Sitting:

143 sq/ft width 11' x depth 13'

Bonus Room/ Media:

210 sq/ft width 14' x depth 15'


345 sq/ft width 15' x depth 13'

Covered Rear Porch:

288 sq/ft width 32' x depth 10'

Dining Room:

192 sq/ft width 12' x depth 16'


37 sq/ft width 6' 3" x depth 5' 11"

Family Room:

306 sq/ft width 17' x depth 18'

Garage 1:

492 sq/ft width 20' 6" x depth 24'

Garage 2:

492 sq/ft width 20' 6" x depth 24'

Great Room:

320 sq/ft width 20' x depth 16'

Guest Bath:

40 sq/ft width 5' x depth 8'

Guest Closet:

24 sq/ft width 6' x depth 4'

Guest Suite:

180 sq/ft width 15' x depth 12'

Half Bath:

50 sq/ft width 9' x depth 5' 6"


210 sq/ft width 14' x depth 15'

Laundry Room:

80 sq/ft width 10' x depth 8'

Master Bath:

272 sq/ft width 16' x depth 17'

Master Bedroom:

361 sq/ft width 19' x depth 19'

Master Closet:

180 sq/ft width 15' x depth 12'

Master Shower:

52 sq/ft width 6' 6" x depth 8'

Master Sitting:

143 sq/ft width 11' x depth 13'

Office/ Bedroom 6:

221 sq/ft width 13' x depth 17'

Office/ Bedroom 6 Closet:

54 sq/ft width 6' x depth 9'


24 sq/ft width 6' x depth 4'

What's Included In This Plan Set

  • Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.
  • Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
  • Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting: The same details as provided for the first floor.

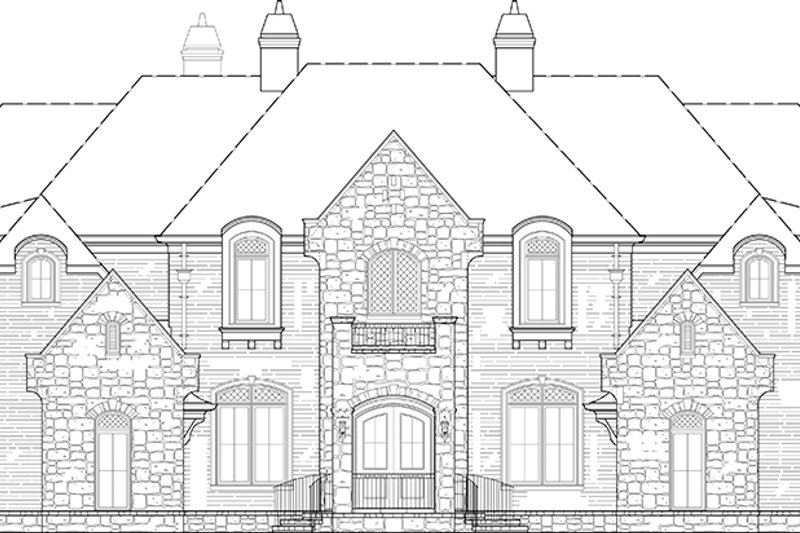

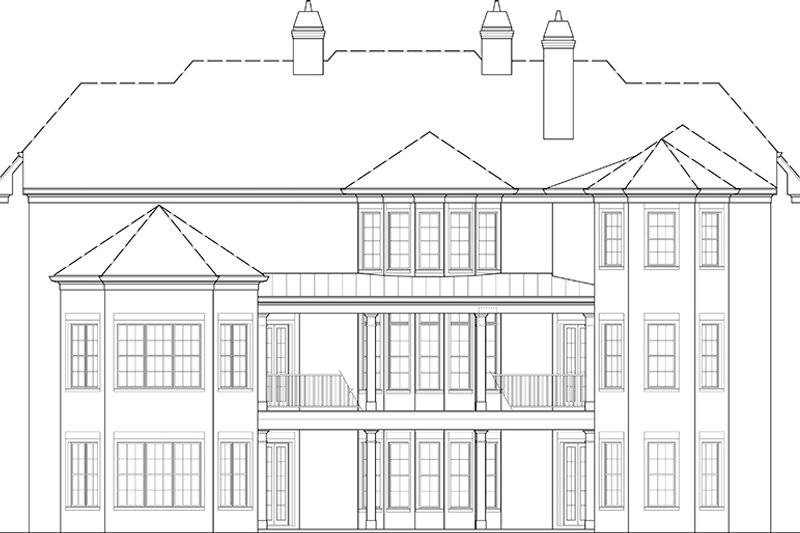

  • Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

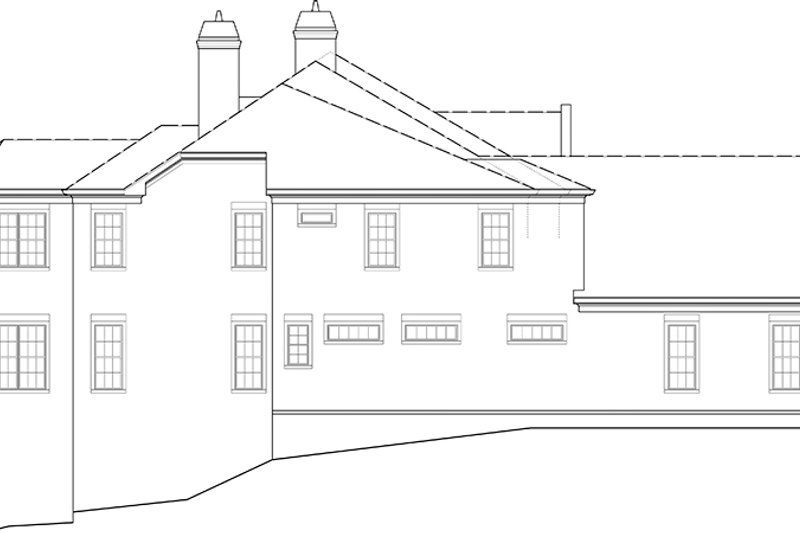

  • Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
  • Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
  • General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
