Key Specs
614
sq ft
1
Beds
1
Baths
2
Floors
1
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 126-206
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 28'
Height : 24'
Width : 30'
Area

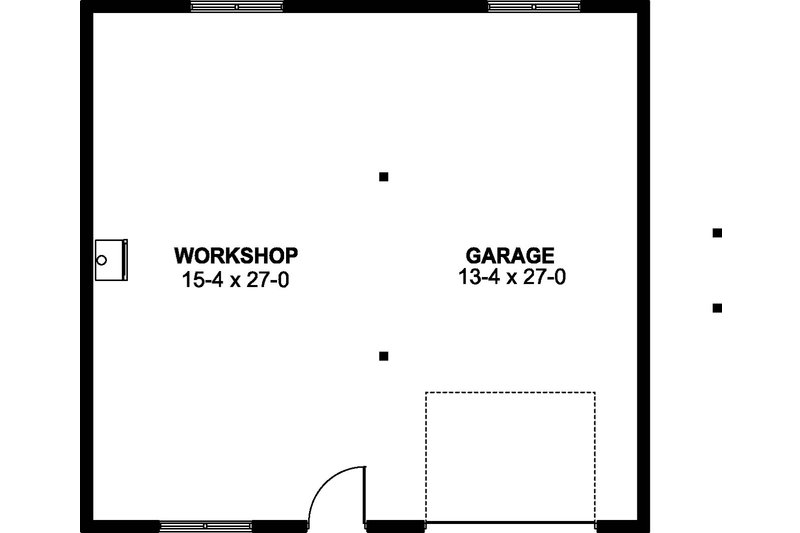

Garage : 840 sq/ft

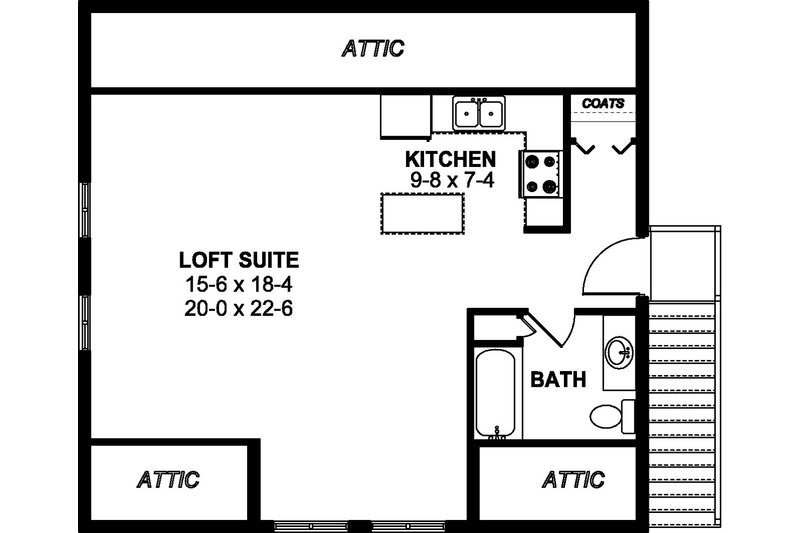

Upper Floor : 614 sq/ft
Ceiling
Ceiling Details : Vaulted ceiling upper level.
Garage Ceiling : 9' 4"
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 16:12
Roof Framing : Truss
Roof Load : 50
Roof Type : Ashpalt Shingle
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6
Insulation : Batt
Bedroom Features
Upstairs Bedrooms
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Loft
Workshop
Garage Features
Front Entry Garage
Oversized Garage
What's Included In This Plan Set
- Cover Sheet: Designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Including lighting fixture placement
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$930.75
$1143.25
$1355.75
Foundation
$0.00
Framing
$0.00
Additional Options
$170.00
$46.75
$140.25
$33.15
$140.25
$106.25
