PLAN #124-829

Key Specs


6192
sq ft

3
Beds

2
Baths

2
Floors

4
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This traditional estate home is as symmetrical on the exterior as it is spacious inside. All of the rooms at its heart are naturally bright and relaxingly spacious. A pocket door on the right of the vaulted living room brings you into a large dining room where another pocket door leads into the gourmet kitchen and sun-washed nook.

Floor Plans

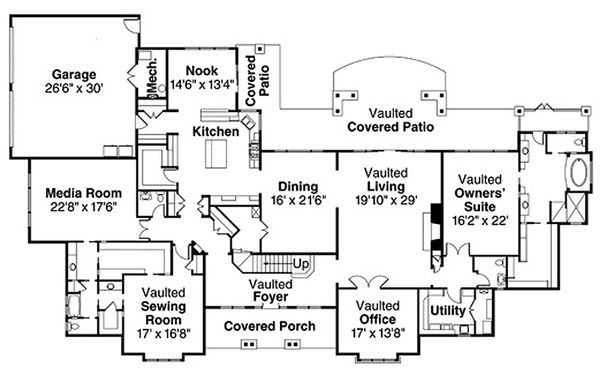

Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #124-829

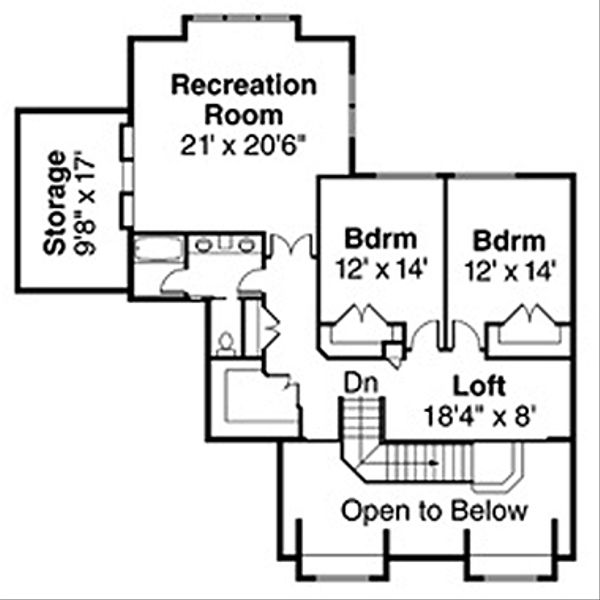

Floor Plan - Upper Floor Plan
Traditional Floor Plan - Upper Floor Plan Plan #124-829

Full Specs & Features


Dimension Depth : 74' 4"
Height : 31' 2"
Width : 125'
Area Bonus : 190 sq/ft
Garage : 902 sq/ft
Main Floor : 4849 sq/ft
Upper Floor : 1343 sq/ft
Ceiling Main Ceiling : 10'
Roof Roof Framing : Truss
Roof Load : 25
Primary Pitch : 8:12
Roof Type : shingle
Exterior Wall Framing Exterior Wall Finish : brick
Framing : 2"x6"
Bedroom Features Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features Eating Bar
Kitchen Island
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Media Room
Storage Area
Garage Features Side Entry Garage
Lot Characteristics Suited For Corner Lot
Suited For View Lot
Outdoor Spaces Covered Front Porch
Covered Rear Porch
Code Compliance Irc 2006
Structural Information Provided Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing
Bedroom 2 168 sq/ft width 12' x depth 14'
Bedroom 3 168 sq/ft width 12' x depth 14'
Dining Room 344 sq/ft width 16' x depth 21' 6"
Garage 795 sq/ft width 26' 6" x depth 30'
Living Room 575 sq/ft width 19' 10" x depth 29'
Loft 146 sq/ft width 18' 4" x depth 8'
Master Suite 355 sq/ft width 16' 2" x depth 22'
Media Room 396 sq/ft width 22' 8" x depth 17' 6"
Nook 193 sq/ft width 14' 6" x depth 13' 4"
Office 232 sq/ft width 17' x depth 13' 8"
Recreation Room 430 sq/ft width 21' x depth 20' 6"
Sewing Room 283 sq/ft width 17' x depth 16' 8"
Storage 164 sq/ft width 9' 8" x depth 17'

What's Included In This Plan Set


Please note, if ordering a PDF set, it is not-modifiable. The CAD set is best for making local modifications

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

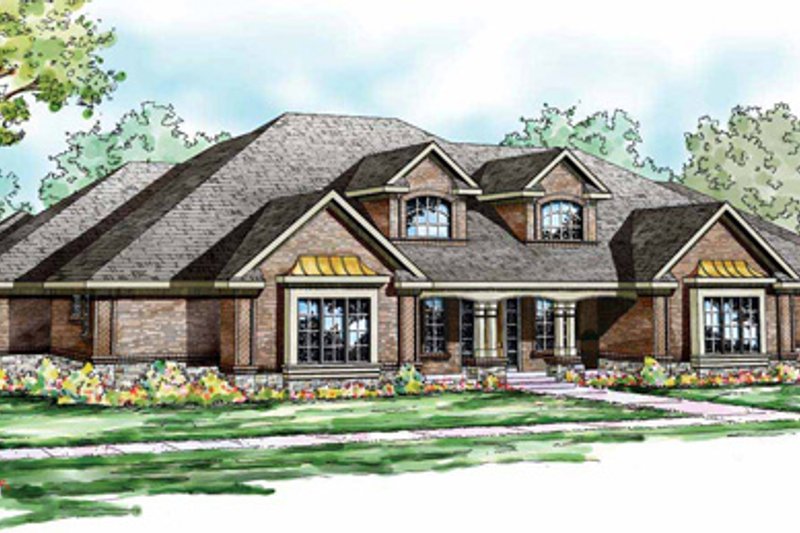

  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.
Plan Set
5 Copy Set :
$1655.00
5 printed plan sets mailed to you.
8 Copy Set :
$1880.00
8 printed plan sets mailed to you.
PDF Set :
$3350.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3675.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$1325.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$400.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Right-Reading Reverse :
300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
