PLAN #930-357

Key Specs


6315
sq ft

4
Beds

4
Baths

2
Floors

3
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

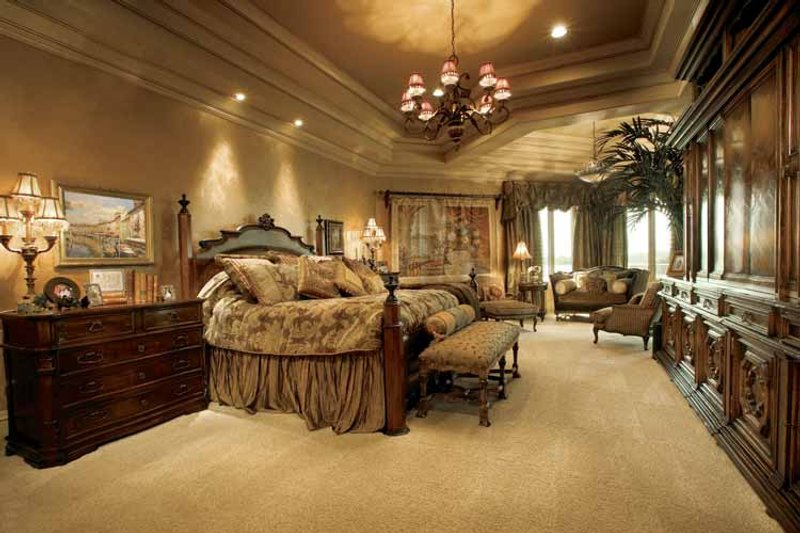

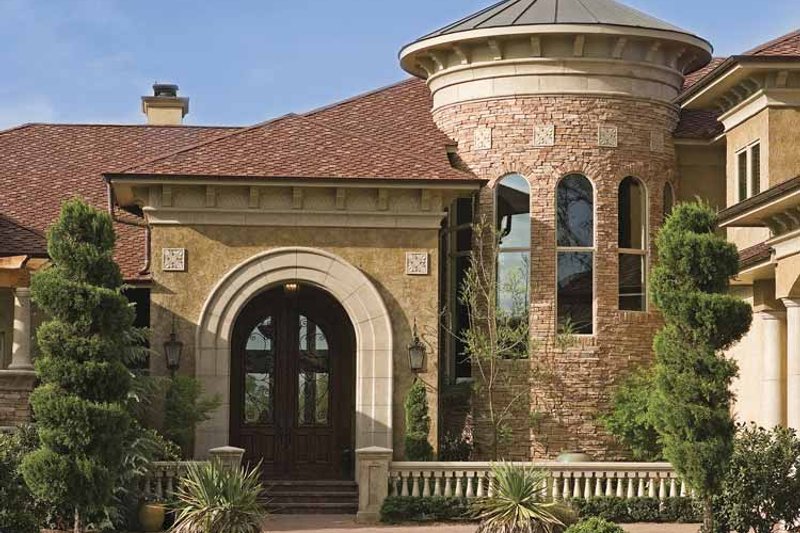

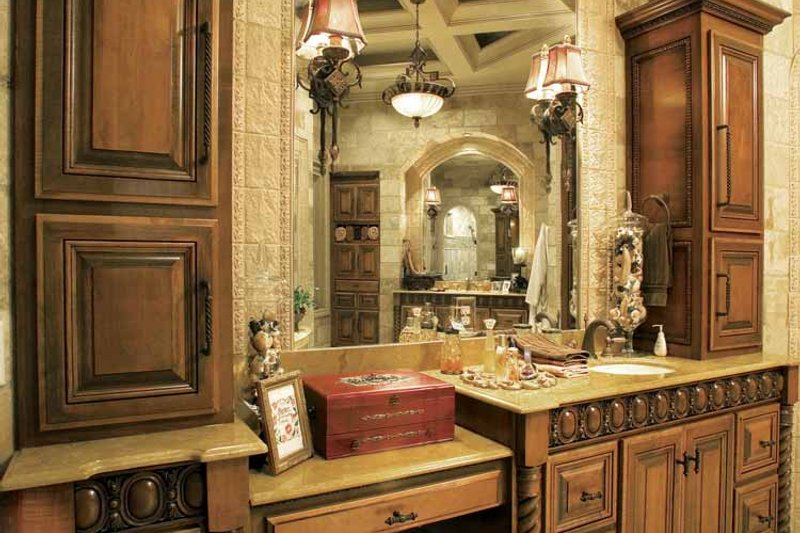

A variety of organic shapes and materials makes this award-winning villa appear as if it grew right up out of a rocky Mediterranean cliff. A nautilus-shaped staircase winds through a windowed turret by the entry, leading to the guest suites and media room on the second floor. Downstairs, the master suite features an opulent bath that lends the sense of bathing outdoors: the many windows open onto a walled privacy garden. The leisure room is bound by nothing more than retreating walls of glass; when open, the entire family gathering wing becomes an ideal location for living al fresco.

Floor Plans

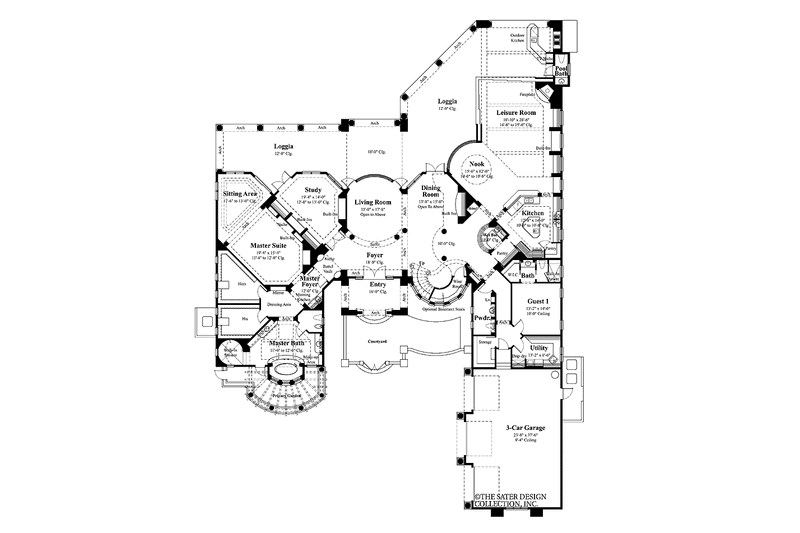

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

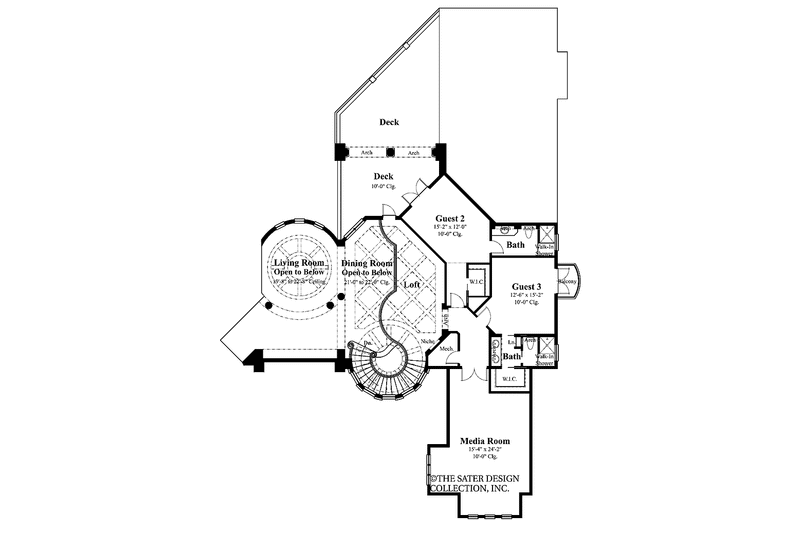

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 4744 sq/ft
Upper Floor : 1571 sq/ft
Bedroom Features Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Fireplace

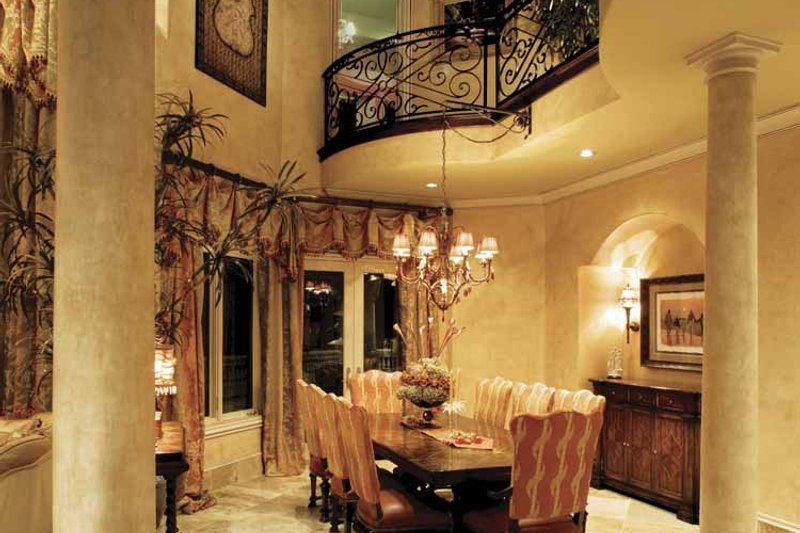

Formal Dining Room
Formal Living Room / Parlor
Kitchen Features Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Breakfast Nook
Walk In Pantry Cabinet Pantry
Additional Room Features Den Office Study Computer
Family Room Keeping Room
Main Floor Laundry
Media Room
Wine Cellar
Open Floor Plan
Vaulted / Cathedral Ceilings
Outdoor Spaces Courtyard
Loft Balcony
Outdoor Kitchen Grill
Deck

What's Included In This Plan Set


Sater Design Collection

Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection.

Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.

Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site.

Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced.

Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable).

Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location.

Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information.

Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section.

Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings.

Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations.

Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings.

Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section.

Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home.

Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.

» See important information before purchasing.
Plan Set
PDF Set :
$5018.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$5018.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$9410.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$650.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$750.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$875.00
Ideal for sloping lot, lower level of home partially underground.
Framing
Block:
$0.00
Block
Wood 2x6:
$0.00
Wood 2x6
Additional Options
Right-Reading Reverse :
275.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
65.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
