PLAN 80-215

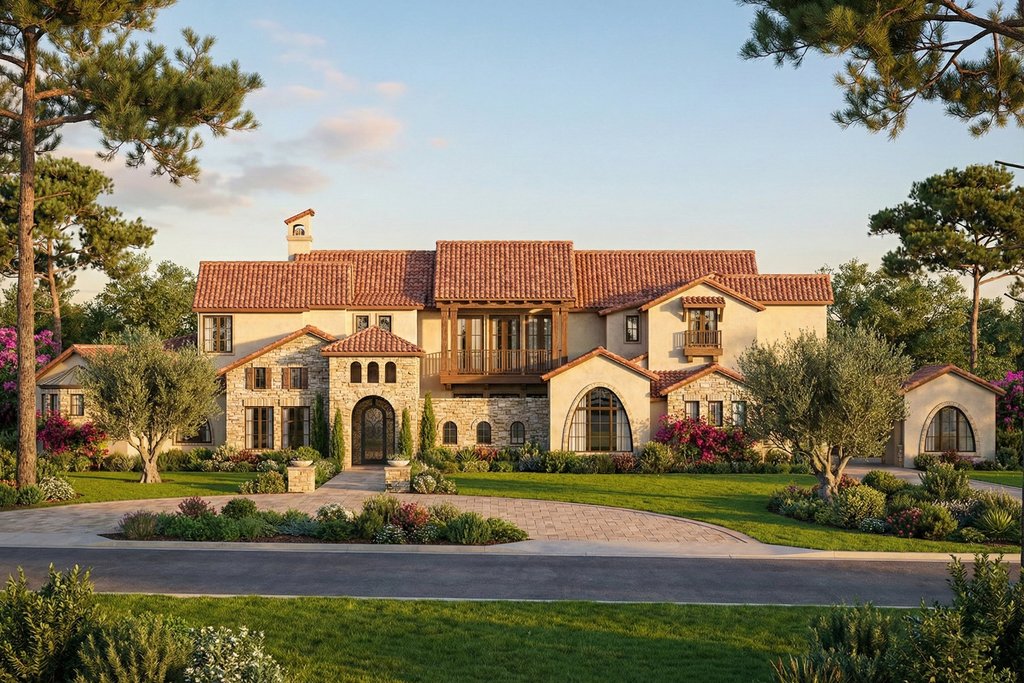

Mediterranean Exterior - Front Elevation Plan #80-215
Mediterranean Exterior - Other Elevation Plan #80-215

Key Specs


6509
sq ft

6
Beds

7
Baths

2
Floors

4
Garages

Select Plan Set Options

What's included?
Subtotal
NOW $1890.00
You save $210.00
(10% savings)
Sale ends soon!
Also order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 80-215

Key Specs


6509
sq ft

6
Beds

7
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


A substantial Mediterranean two-story designed around a central courtyardl. The focal point of this home is the circular kitchen with a central island ideal for family cooking. A large cooktop with stone surround accents the kitchen and a separate circular breakfast bar area is perfect for the kids. The large pantry is extra convenient with two access doors. The open dining room overlooks a beautiful coutyard with a view to the exposed wood trellis. Located near the dining is a butler's pantry and a wine cellar. Cathedral ceilings at the great room with fireplace and rear porch access. The outdoor living area features a second fireplace, outdoor kitchen and pool bath access ideal for entertaining. The master suite has a unique curved wall with lots of windows and a rear porch access. An oversized walk in closet, dual vanities, large shower with curved tile seat and a tub in the bay window nook. Private guest suite complete with kitchenette, walk-in shower, garden tub and access from the exterior. The 2nd floor has a large gameroom and a convenient bar area. Private bathrooms for each bedroom and large walk-in closets make the upstairs fully functional. Completing the home is a media room your kids will love.

Full Specs & Features


Dimension
Depth : 113'
Height : 31'
Width : 132'
Area
Decks : 300 sq/ft
Garage : 1098 sq/ft
Main Floor : 4201 sq/ft
Porch : 1496 sq/ft
Upper Floor : 2308 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 11'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 6:12
Roof Framing : Stick
Roof Type : Conc Tile
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : 2x4
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Play Flex Room
Storage Area
Wet Bar
Wine Cellar
Garage Features
Oversized Garage
Rear Entry Garage
Side Entry Garage
Split Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Balcony
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-800-447-0027
Plan Set
PDF Set :
$1890.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3780.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$180.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
