PLAN 310-354
Key Specs
6685
sq ft
5
Beds
5.5
Baths
2
Floors
4
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 310-354
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 114' 7"
Height : 39'
Width : 120' 9"
Height : 39'
Width : 120' 9"
Area

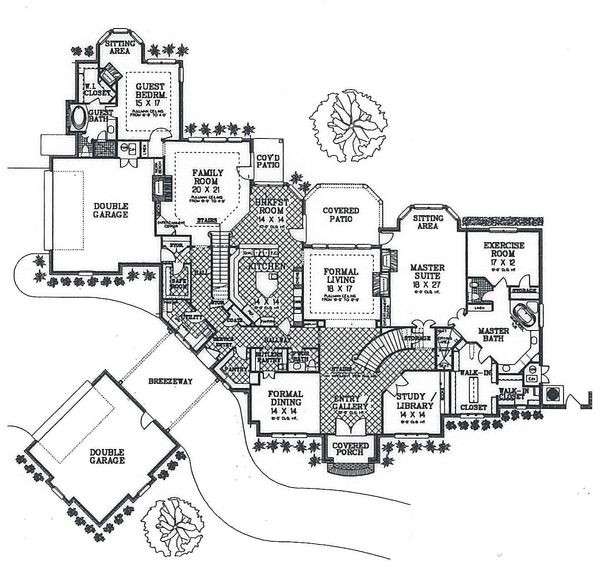

First Floor: 4958 sq/ft height 10'

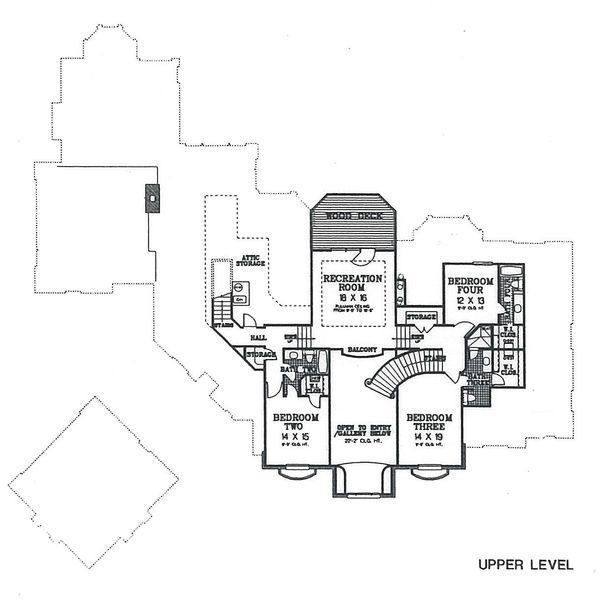

Second Floor: 1727 sq/ft
Second Floor: 1727 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 16:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Secondary Pitch : 12:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Guest Suite
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Main Floor Bedrooms
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Storage Area
Hobby Rec Room Game Room
Loft
Master Sitting Area
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Balcony
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Breezeway
Courtyard
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
210 sq/ft width 14' x depth 15'
Bedroom 3:
266 sq/ft width 14' x depth 19'
Bedroom 4:
156 sq/ft width 12' x depth 13'
Breakfast Room:
196 sq/ft width 14' x depth 14'
Dining Room:
196 sq/ft width 14' x depth 14'
Exercise Room:
204 sq/ft width 17' x depth 12'
Family Room:
420 sq/ft width 20' x depth 21'
Guest Bedroom:
255 sq/ft width 15' x depth 17'
Kitchen:
196 sq/ft width 14' x depth 14'
Living Room:
306 sq/ft width 18' x depth 17'
Master Bedroom:
486 sq/ft width 18' x depth 27'
Master Closet:
216 sq/ft width 12' x depth 18'
Master Closet Two:
48 sq/ft width 6' x depth 8'
Recreation Room:
288 sq/ft width 18' x depth 16'
Study:
196 sq/ft width 14' x depth 14'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence
- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Questions? Call 1-800-447-0027
Plan Set
| 5 Copy Set : $2511.00 |
5 printed plan sets mailed to you. |
| 8 Copy Set : $2637.00 |
8 printed plan sets mailed to you. |
| PDF Set : $2772.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set : $2772.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
| CAD Set : $4491.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| Single Set : $2461.50 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Additional Options
| Additional Construction Sets : $45.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design : $90.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $35.10 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $180.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets : $45.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
