PLAN 945-136
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
PLAN 945-136
Key Specs
7038
sq ft
6
Beds
4
Baths
2
Floors
4
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Floor Plans

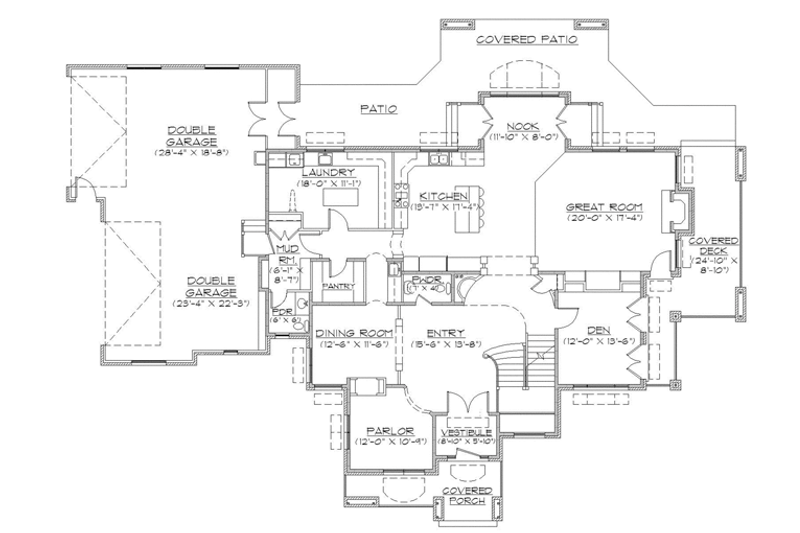

Floor Plan - Main Floor Plan

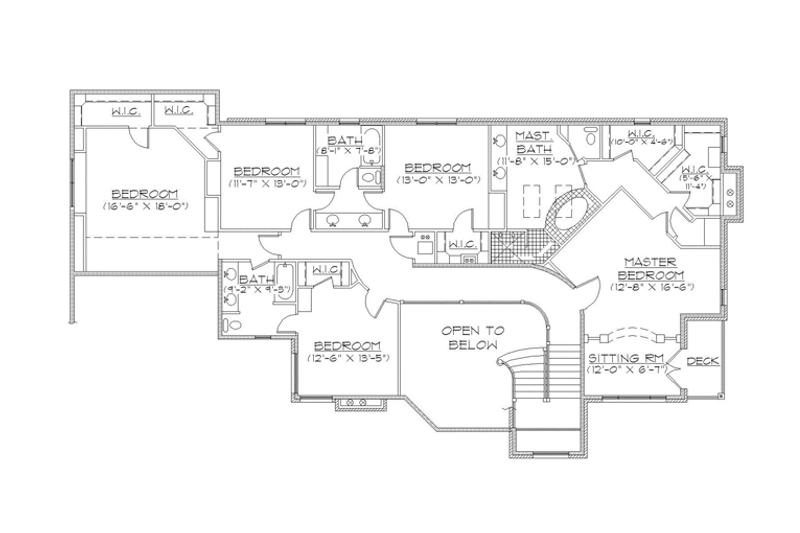

Floor Plan - Upper Floor Plan

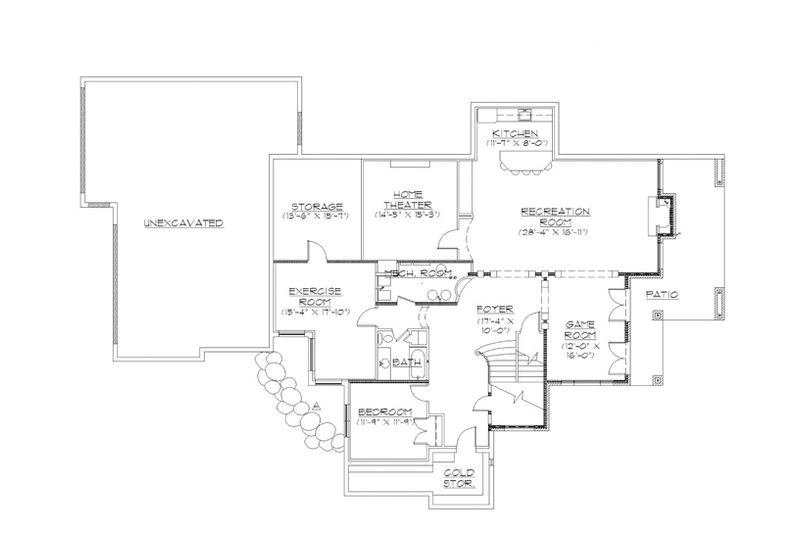

Floor Plan - Lower Floor Plan
Full Specs & Features
Height : 36' 10"
Width : 91' 6"
First Floor: 2444 sq/ft
Garage: 1198 sq/ft
Second Floor: 2331 sq/ft
Roof Framing : Truss
Roof Type : Asphalt
Framing : Wood - 2x6
Formal Dining Room
Formal Living Room / Parlor
Upstairs Master Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Exercise Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Master Sitting Area
Media Room
Mud Room
Open Floor Plan
Storage Area
Vaulted / Cathedral Ceilings
Workshop
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Bath 2:
width 9' 2" x depth 9' 3"
Bath 3:
width 8' 1" x depth 7' 8"
Bedroom 2:
width 16' 6" x depth 18'
Bedroom 3:
width 12' 6" x depth 13' 5"
Bedroom 4:
width 11' 7" x depth 13'
Bedroom 5:
width 13' x depth 13'
Bedroom 6:
width 11' 9" x depth 11' 9"
Covered Front Porch:
146 sq/ft
Covered Rear Porch:
949 sq/ft
Covered Side Deck:
width 8' 10" x depth 24' 10"
Den:
width 12' x depth 13' 6"
Dining Room:
width 12' 6" x depth 11' 6"
Double Garage 1:
width 28' 4" x depth 18' 8"
Double Garage 2:
width 23' 4" x depth 22' 3"
Entry:
width 15' 6" x depth 13' 8"
Exercise Room:
width 13' 4" x depth 17' 10"
Game Room:
width 12' x depth 16'
Great Room:
width 20' x depth 17' 4"
Home Theater:
width 14' 5" x depth 13' 3"
Kitchen:
width 13' 7" x depth 17' 4"
Laundry Room:
width 18' x depth 11' 1"
Lower Level Foyer:
width 17' 4" x depth 10'
Lower Level Kitchen:
width 11' 7" x depth 8'
Master Closet 1:
width 10' x depth 4' 6"
Master Closet 2:
width 5' 6" x depth 11' 4"
Master Bath:
width 11' 8" x depth 15'
Master Bedroom:
width 12' 8" x depth 16' 6"
Master Sitting Area:
width 12' x depth 6' 7"
Mud Room:
width 6' 1" x depth 8' 7"
Nook:
width 11' 10" x depth 8'
Parlor:
width 12' x depth 10' 9"
Powder Room 1:
width 7' x depth 4'
Powder Room 2:
width 6' x depth 6'
Recreation Room:
width 28' 4" x depth 16' 11"
Vestibule:
width 8' 10" x depth 5' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

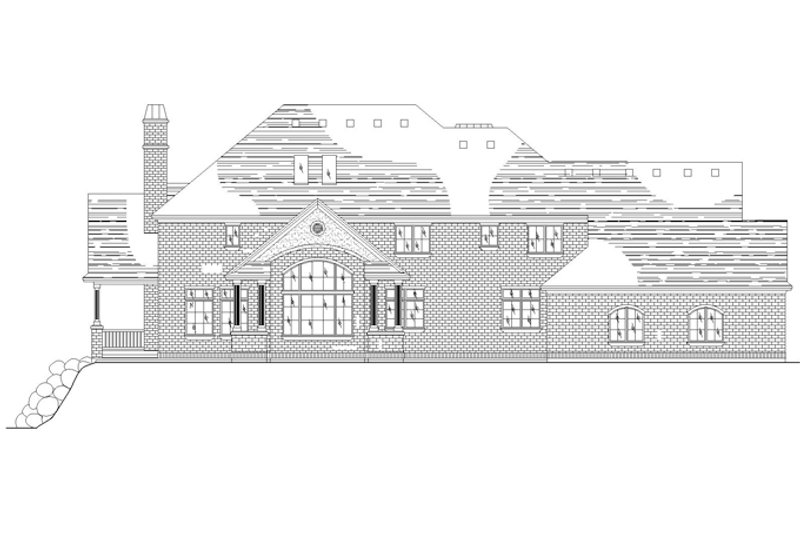

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
| 5 Copy Set
: $7038.00 |
5 printed plan sets mailed to you. |
| PDF Set
: $7238.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| Reproducible Set
: $7238.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $500.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Additional Construction Sets
: $50.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Home Furniture Planner
: $19.00 |
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Mirror Reversed Sets
: $50.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
