PLAN 928-265
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
PLAN 928-265
Key Specs
5008
sq ft
4
Beds
4.5
Baths
2
Floors
4
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.Plan Description

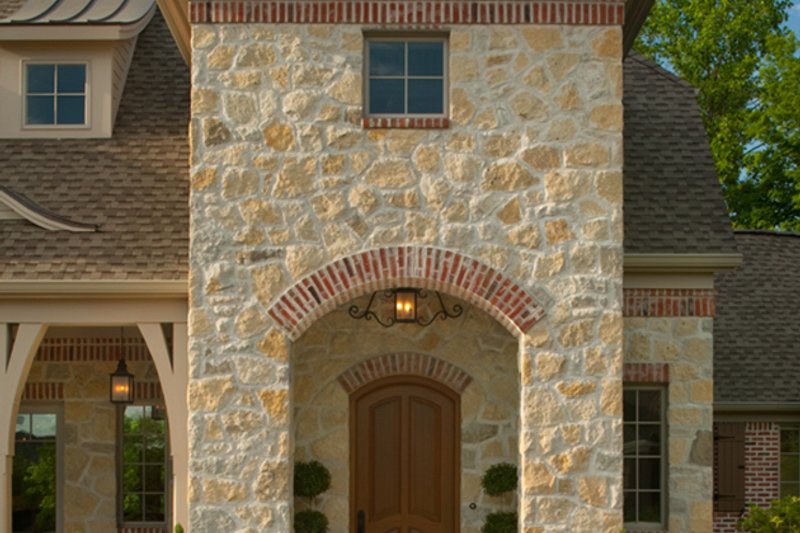

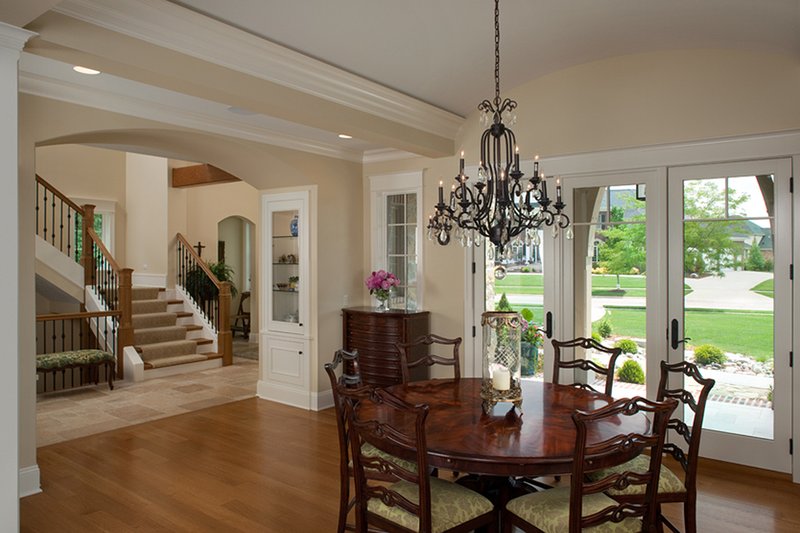

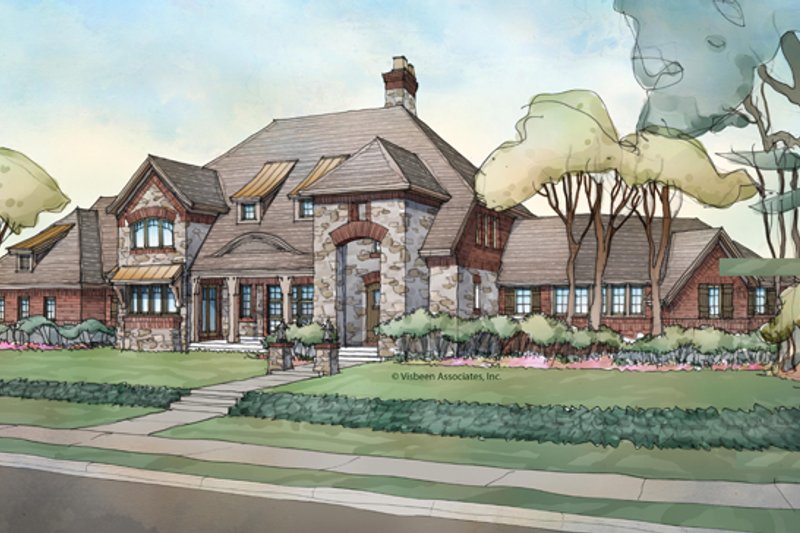

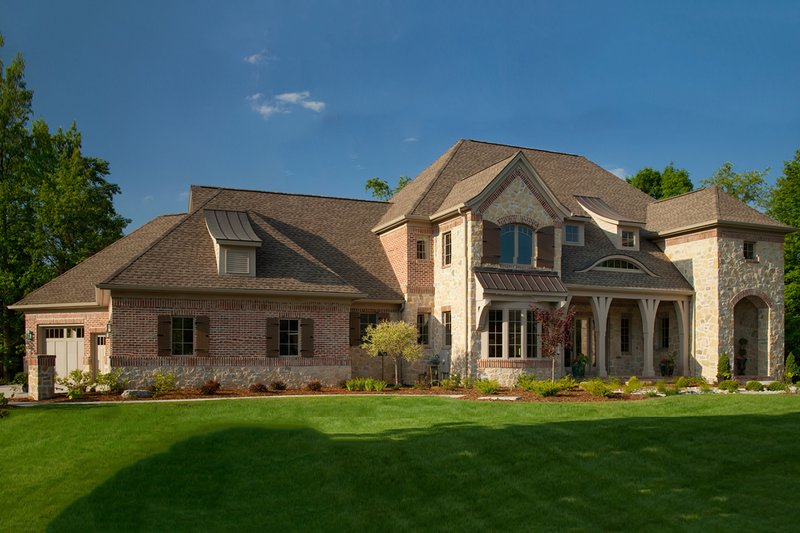

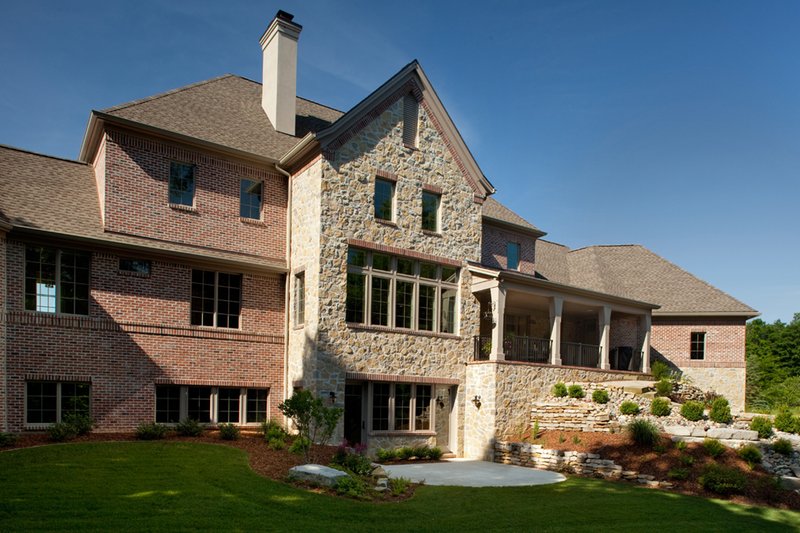

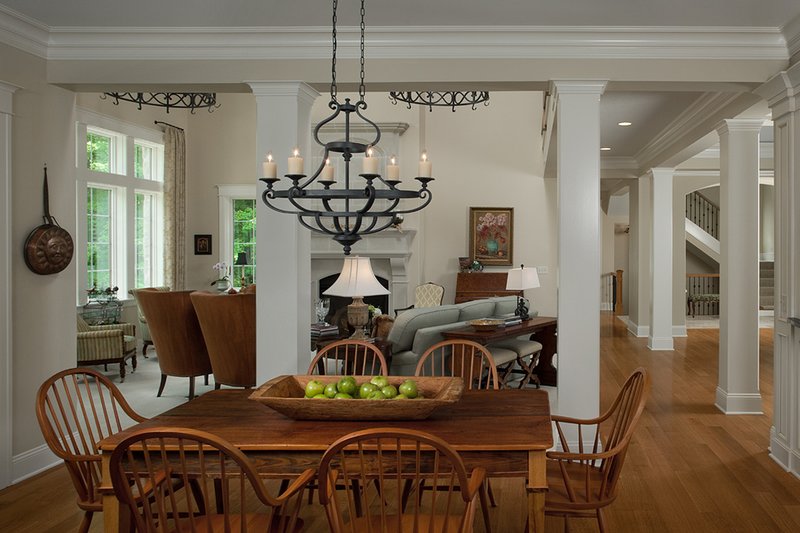

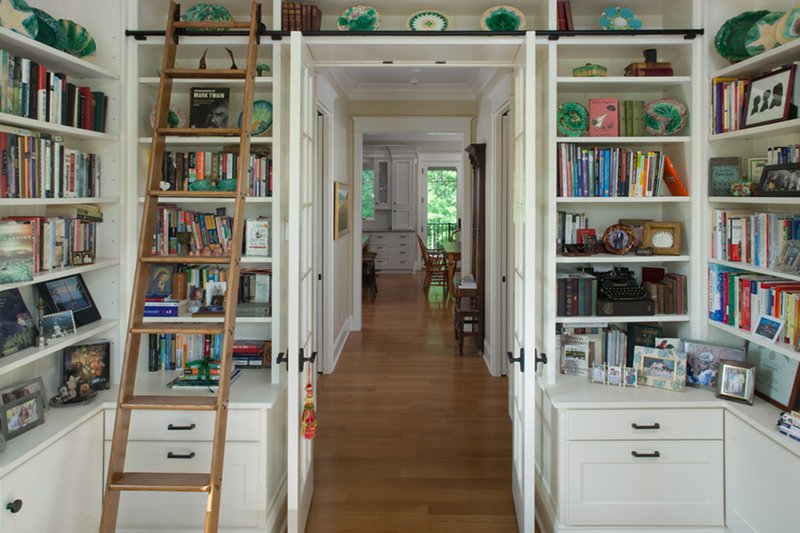

Evoking an English manor, this Visbeen Architects design displays a stone façade, towering rooflines, and graceful arches. Stretching out across the property, the home features a separate wing for the main-level master suite. The interior focal point is the dramatic dining room, which faces the front of the house and opens out onto the front porch. The study, large living room, and back patio offer additional gathering places, along with the kitchen’s island and table seating. Three bedroom suites fill the upper level, each with a private bathroom. Fun spaces are ready for guests and family entertainment on the lower level.
Floor Plans

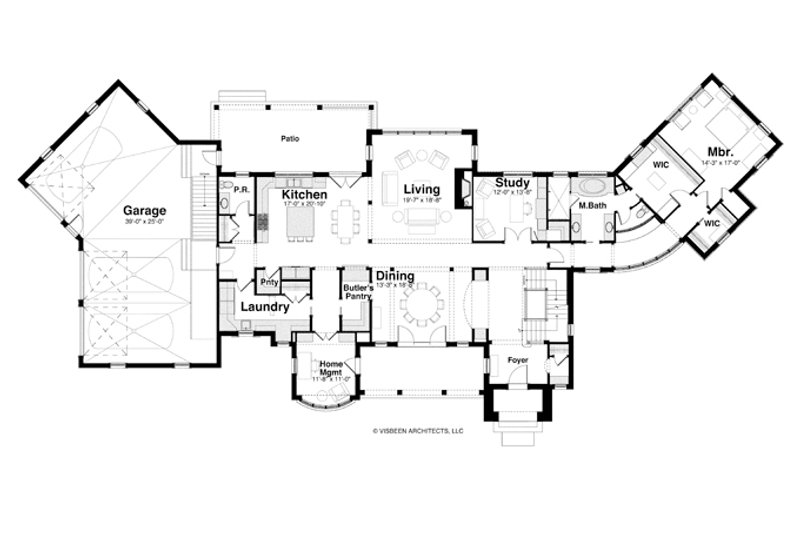

Floor Plan - Main Floor Plan

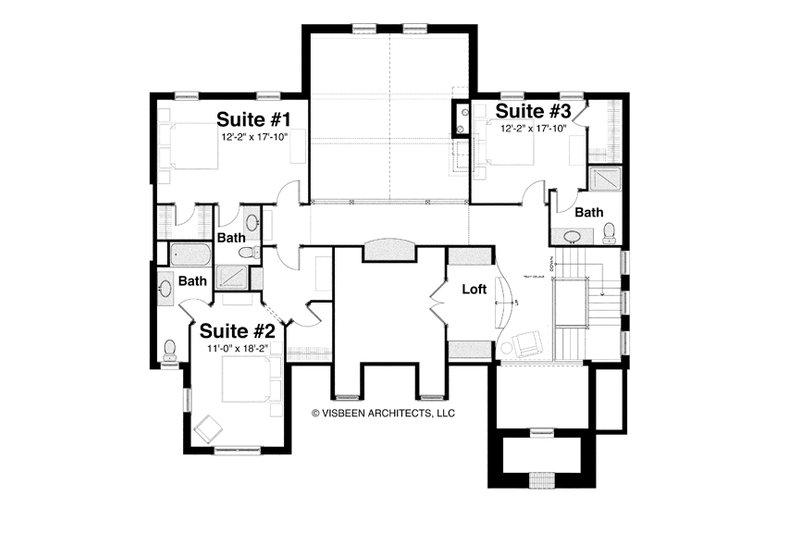

Floor Plan - Upper Floor Plan

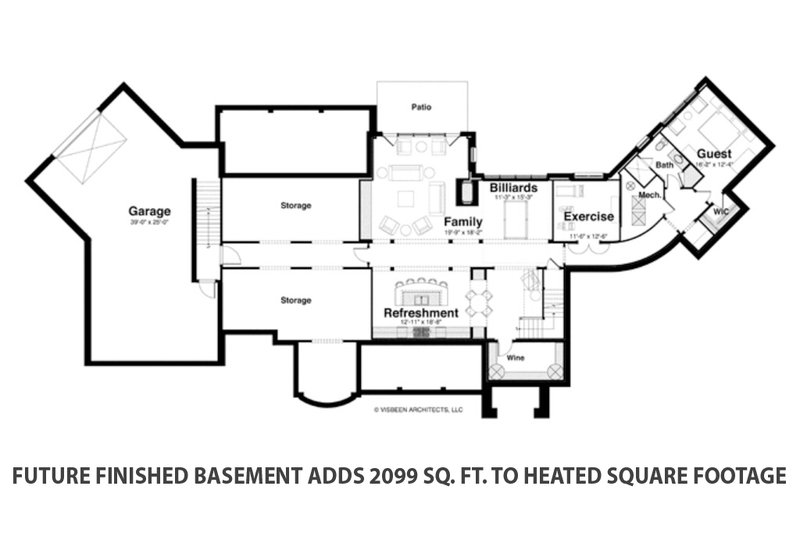

Floor Plan - Other Floor Plan
Full Specs & Features
Height : 39' 9"
Width : 142' 5"
First Floor: 3316 sq/ft height 10'
Second Floor: 1692 sq/ft height 9'
Roof Framing : Truss
Roof Type : Asphalt
Framing : Wood - 2x6
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Butler's Pantry

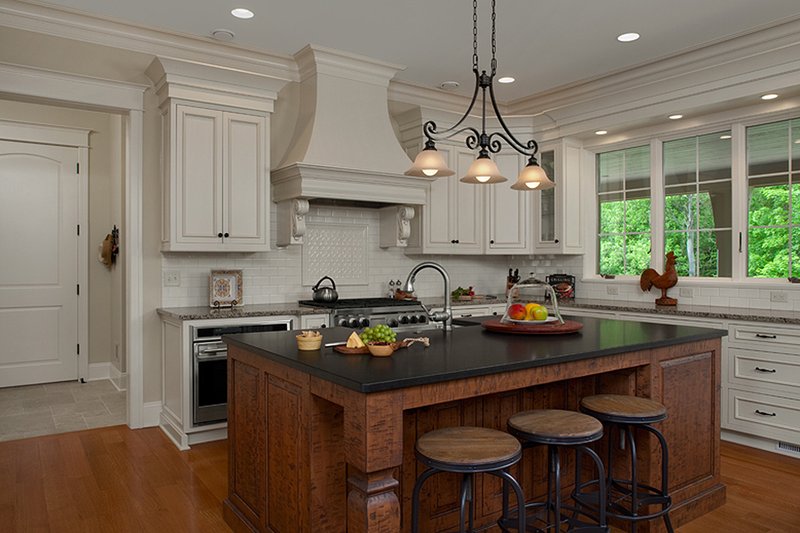

Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room

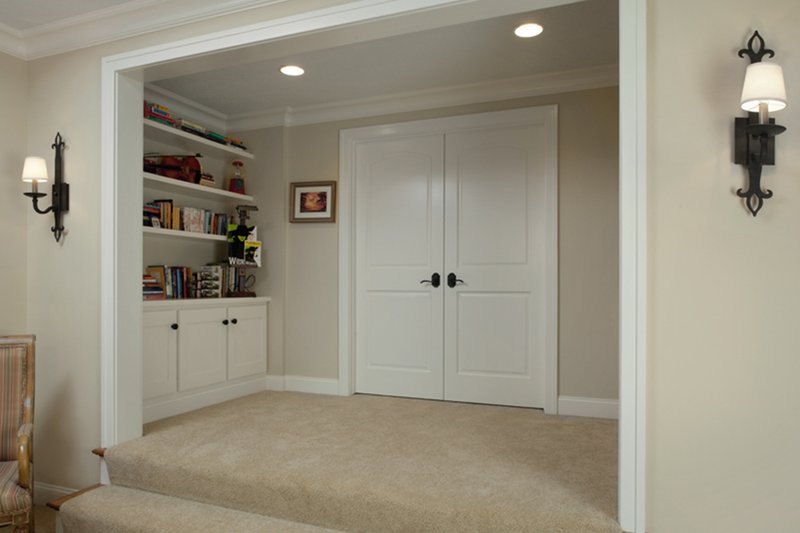

Loft
Main Floor Laundry
Safe Room / Hidden Room
Vaulted / Cathedral Ceilings
Wine Cellar
Workshop
Covered Front Porch
Covered Rear Porch
Billiards:
width 11' 3" x depth 15' 3"
Dining:
width 13' 3" x depth 18' 8"
Exercise:
width 11' 6" x depth 12' 6"
Family Room:
width 19' 9" x depth 18' 2"
Garage:
width 39' x depth 25'
Garage 2:
width 39' x depth 25'
Guest Suite:
width 16' 2" x depth 12' 4"
Home Management:
width 11' 8" x depth 11'

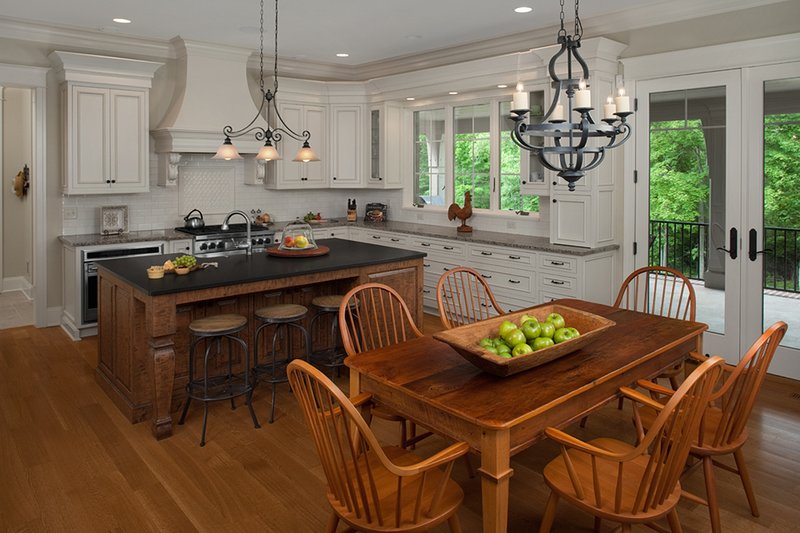

Kitchen:
width 17' x depth 20' 10"

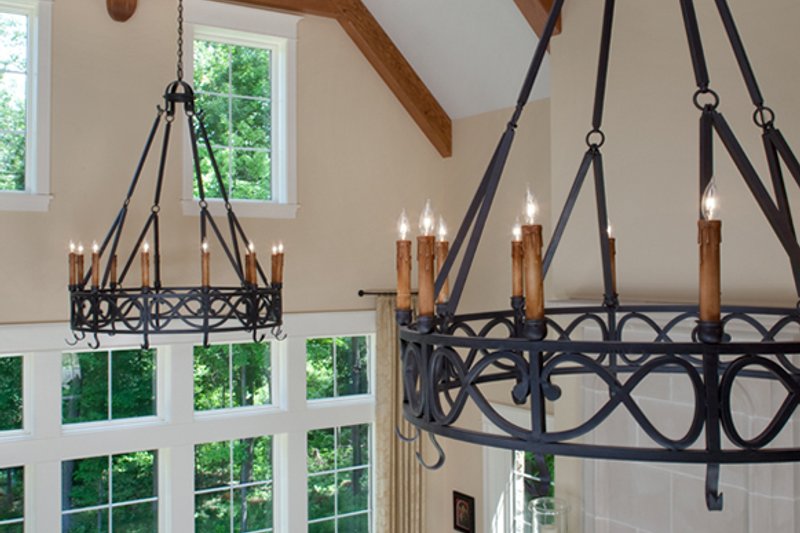

Living Room:
width 19' 7" x depth 18' 8"

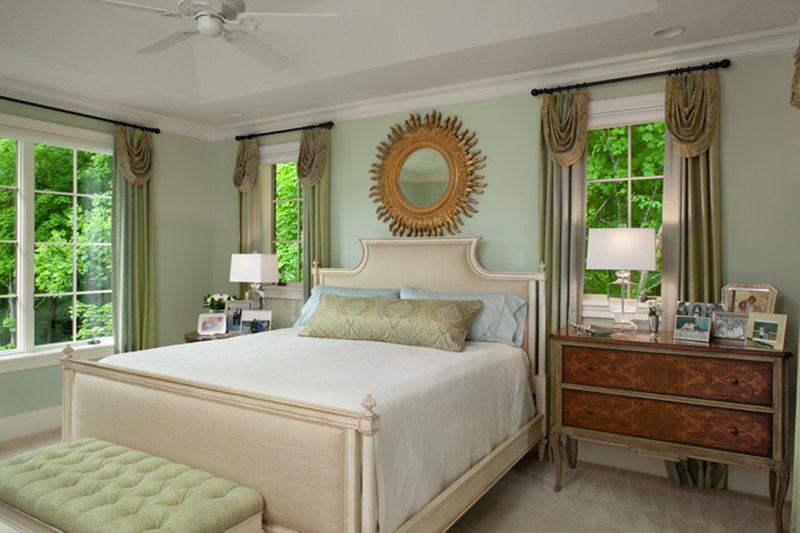

Master Bedroom:
width 14' 3" x depth 17'
Refreshment:
width 12' 11" x depth 18' 8"

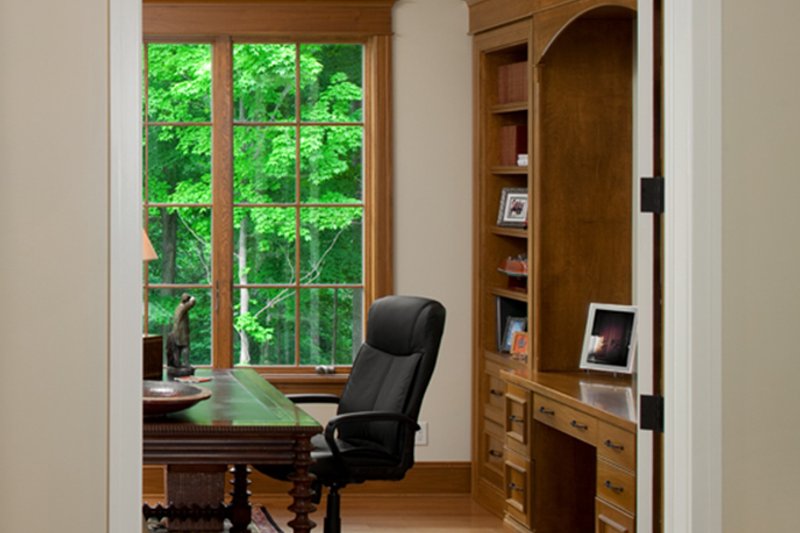

Study:
width 12' x depth 13' 8"
Suite 1:
width 12' 2" x depth 17' 10"
Suite 2:
width 11' x depth 18' 2"
Suite 3:
width 12' 2" x depth 17' 10"
What's Included In This Plan Set
See a sample plan set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Plan Set
| PDF Set
: $1995.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $3995.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
