PLAN #124-661

Key Specs


711
sq ft

0
Beds

0
Baths

2
Floors

1
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This traditional garage plan can house up to 2 cars. The garage door is 12' wide and 8' tall. At the back of the garage is a double door storage closet, as well as a set of stairs that access the unfinished bonus room above. The garage's main floor is also wide enough that a small shop could be set up on the right side.

Floor Plans

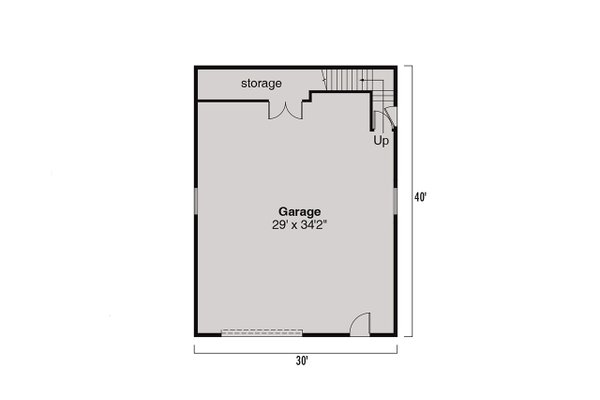

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

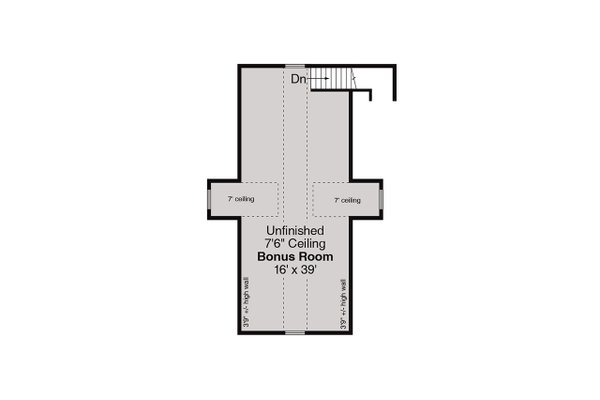

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 40'
Height : 20'
Width : 30'
Area Garage : 1200 sq/ft
Upper Floor : 711 sq/ft
Ceiling Main Ceiling : 9'
Roof Primary Pitch : 7:12
Exterior Wall Framing Framing : 2"x6"
Additional Room Features Bonus Play Flex Room
Storage Area
Garage Features Detached Garage
Lot Characteristics Suited For Corner Lot
Suited For Narrow Lot
Code Compliance Irc 2006
Structural Information Provided Foundation Drawing
Structural 1st Floor Framing
Structural 2nd Floor Framing
Structural Roof Framing

What's Included In This Plan Set


Associated Designs, Inc.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
» See important information before purchasing.
Plan Set
5 Copy Set :
$375.00
5 printed plan sets mailed to you.
PDF Set :
$425.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set :
$450.00
8 printed plan sets mailed to you.
CAD Set :
$675.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
100.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
20.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
