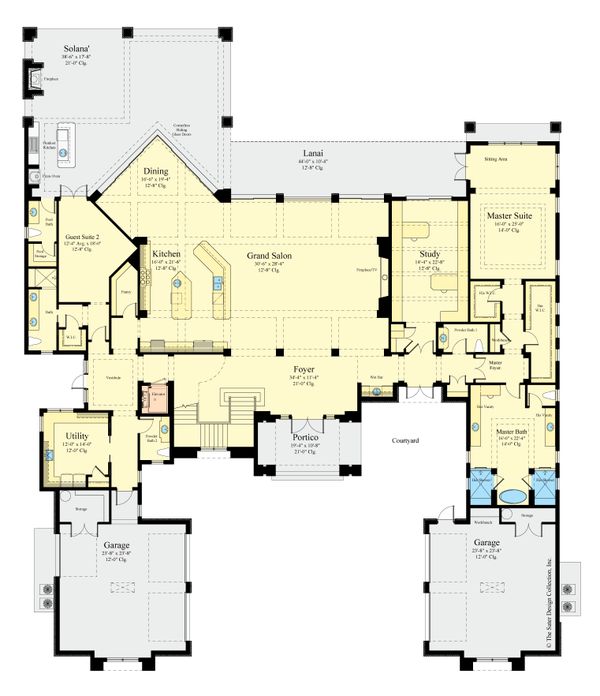

Do you need a house plan that will take advantage of its surroundings? A home design that will have lots of expansive windows, that has clean lines with a modern and casual feel? Look no further, the Waters Edge house plan is what you are looking for. Let's talk storage. You get two garages. Each is a full sized two-car garage. Both feature extra storage space. The garage on the right also has a built-in work bench. Located off the left garage, you will love the huge utility room with its sink and ample cabinets. Let's not forget the generous walk-in pantry conveniently located adjacent to the kitchen. Yes, there is even more storage! Out back in the Solana, with its outdoor fireplace, you’ll find an outdoor kitchen with a built-in grill. That is where you’ll find access to the pool bath. If you have a pool bath and a pool, you’re gonna need some place to store pool things. Luckily you have more storage off of the pool bath. After taking a dip in your pool, you can retire to the master suite where you’ll find even more storage in the generous his-and-hers walk-in closets. After exploring all those storage spaces you might need some place to relax. Fortunately, the first floor master suite has a private sitting area that has access to the lanai. The theme of his-and-hers carries on into the master bath with his-and-hers walk-in showers and vanities. But you’re gonna have to share the large soaking tub. The large kitchen and grand salon, with its fireplace, are well served with a wet bar by the foyer. This makes entertaining lots of people extremely easy. If you want a more intimate place to gather, simply take the elevator up to the second floor. The game room can easily be used as a media room. It has a very large wet bar, which could also be used as a morning kitchen. To make entertaining on the second floor easier, there is a powder bath located just off the stair loft. When you combine the elevator with the 3 bedrooms, which all have their own full baths, the second floor has all the amenities needed for a multi-generational home. You even get a generous exercise room with access to the balcony and sun deck. The Waters Edge is a modern, contemporary luxury house plan designed to take advantage of where ever it is built. Dan Sater has been designing award-winning house plans for decades. This home is an excellent example of the level of detail and attention Dan gives to all his plans.
Sater Design Collection charges $50.00 to review plan changes and prepare an estimate for your modifications. This fee can be applied to your plan purchase once you move forward with the modifications. Please call if you would like to order a Plan Modification quote from the Sater Design Collection. Some of Sater Design Collection's ready-made house plans are not for sale in Lee and Collier Counties of Florida. Please give us a call if you are building in one of these counties.
Cover Sheet, Index & Site Plan: The cover sheet features an elevation of the exterior of the house that shows approximately how the home will look when built. The index lists the order of the drawings included, with page numbers for easy reference. The site plan is a scaled footprint of the house to help determine how the home will be placed on the building site. Wall Sections & Notes: This section shows section cuts of the exterior wall from the roof down through the foundation. These wall sections specify the home’s construction and building materials. They also show the number of stories, type of foundation and the construction of the walls. Roofing materials, insulation, floor framing, wall finishes and elevation heights are all shown and referenced. Typical Details & Notes: This section addresses all the facets and typical details you will want to include in your home, with the exception of local building code requirements. Architectural and structural elements are detailed, including: window and door components, railings, balusters, wood stairs and headers, interior walls, interior partitions, concrete steps and footings (if applicable). Foundation layout Plan: This sheet provides a fully dimensioned and noted foundation layout, including references to footings, pads, and support walls. For plans with a basement, additional walls and columns may be shown. Basement plans come with a floor framing layout which may be included in this section or the floor framing section, depending on the plan. *Actual structural information should be obtained by a locally licensed engineer for your specific site location. Detailed Floor Plan: This section provides detailed floor plan drawings and descriptions of all the elements that will be included on each floor of the home. The home’s exterior footprint, openings and interior rooms are carefully dimensioned. Important features are noted including built-ins, niches and appliances. All doors and windows are identified. Typically this section also includes the square footage information. Reflected Ceiling Plan: One of Sater home’s most distinguishable features is the highly detailed ceiling treatments. This section shows ceiling heights and treatments. It also shows the details, profiles and finishes of the ceiling treatments. Arches and soffits are also specified in this section. Floor Framing Plans: Homes with a basement or crawl space will have a floor framing plan for the first floor. Multi-story homes will have floor framing plans for upper floors as well. The floor framing plans provide structural information such as the joist location, spacing and direction, as well as the floor heights and stair openings. Roof Layout: The overall layout and necessary details for roof design are provided in this section. If trusses are used, we suggest using a local truss manufacturer to design your roof trusses to comply with your local codes and regulations. Exterior Elevations: Exterior elevations are drawings that show how the finished home will approximately look. In this section, elevations of the front, rear and left and right sides of the home are shown. Exterior materials, details and heights are noted on these drawings. Building Section & Details: This section will illustrate the important changes in the floor, ceiling and roof heights or the relationship of different floors to one another. Interior elements of rooms and areas, such as columns, arches, headers and soffits, are also discernible and easier to visualize in a cross section. Interior Elevations: These interior elevations show the specific details and design of the kitchen, bathrooms, utility rooms, fireplaces, bookcases, built-in units and other special interior features. The interior elevations vary based on the complexity of the home. Electrical Plan: This section shows an electrical plan that will enhance functionality and highlight the unique architectural features of the home.» See important information before purchasing.
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
