Plan Description
- A 16' wide and 8' tall garage door opens to the 642 square feet of parking on the ground level of this ADU or carriage house plan. A powder room is located in the back-right corner next to the dedicated utility closet. - A man door on the right also get you and has access to the garage or to the stairs that take you to the living level where wo bedrooms line the back wall and share a bath. - The front portion gives you a kitchen with island seating and a lounge area. -GIVING BACK: Please note the designer of this plan gives 10% of their profits on all sales to charities focused on helping children and families in foster care.
Floor Plans
Floor Plan - Main Floor

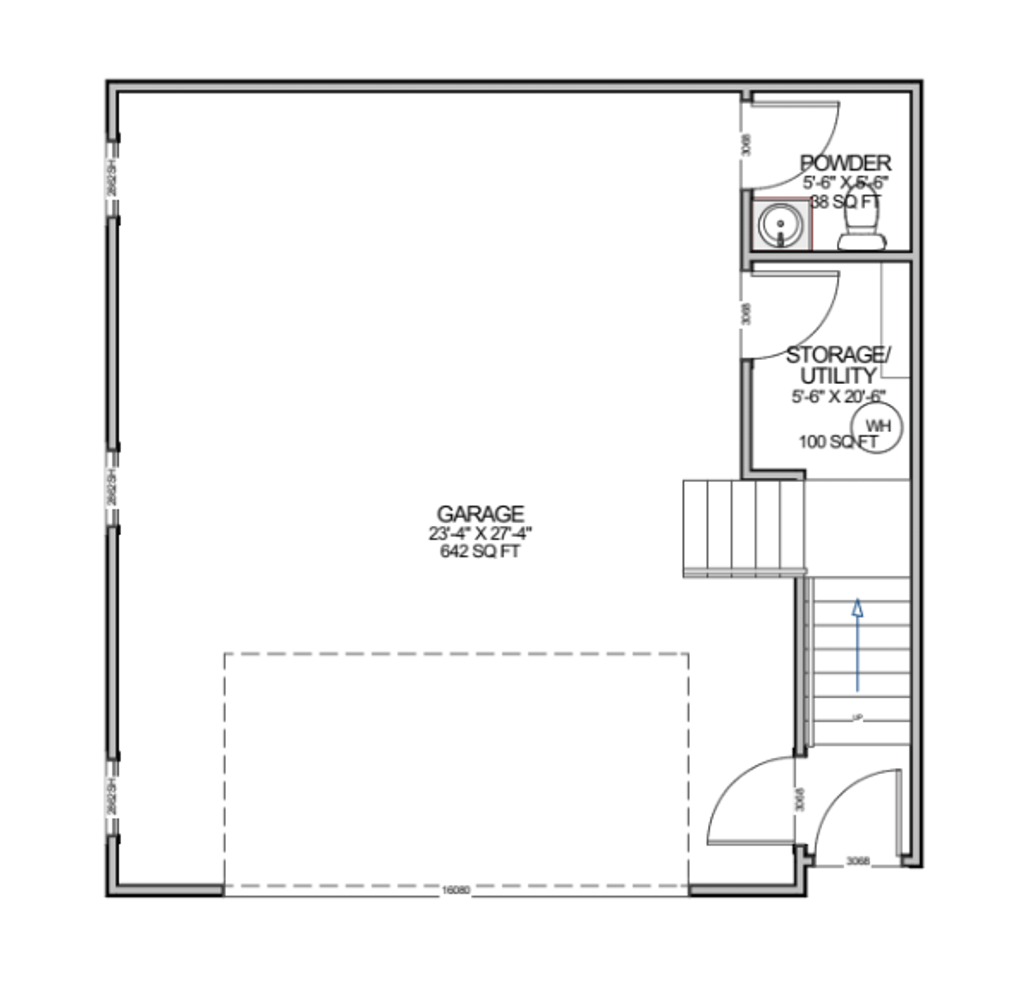

Floor Plan - Lower Floor
Full Specs & Features
Dimension
Depth : 28' 8"
Height : 27' 1"
Width : 28' 8"
Area
Garage : 642 sq/ft
Main Floor : 38 sq/ft
Upper Floor : 712 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Lower Ceiling : 8'
Main Ceiling : 8'
Roof
Primary Pitch : 8/12
Roof Framing : Stick
Roof Type : Gable
Secondary Pitch : 4/12
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x4
Kitchen Features
Eating Bar
Additional Room Features
Great Room Living Room
Main Floor Laundry
Garage Features
Detached Garage
Front Entry Garage
Garage Under
Lot Characteristics
Suited For Narrow Lot
More
Economical To Build
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
- Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
- Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.
