PLAN 1064-96
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This craftsman design floor plan is 765 sq ft and has 0 bedrooms and 1 bathrooms.
Floor Plans

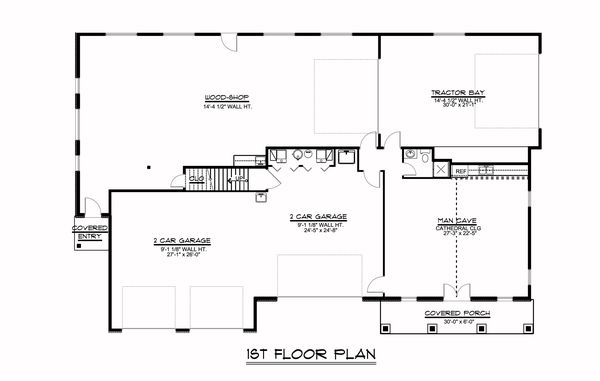

Floor Plan - Main Floor

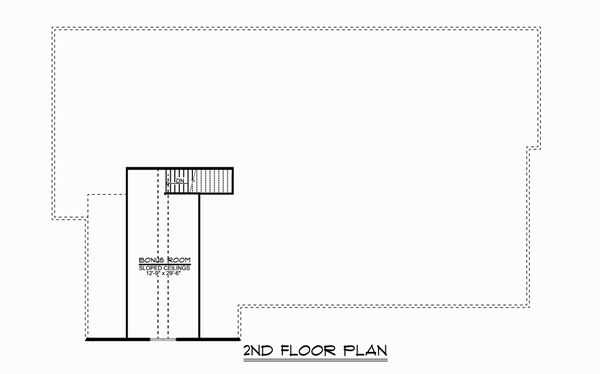

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth: 56' 6"
Height: 20' 4"
Width: 88'
Area
Bonus: 391 sq/ft
Garage: 3640 sq/ft
Main Floor: 765 sq/ft
Porch: 225 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Bonus Ceiling: 8' 1"
Ceiling Details: Cathedral Ceiling in Man Cave 14'-4 1/2" ceiling in Woodshop and Tractor Bay
Garage Ceiling: 9' 1"
Roof
Primary Pitch: 9/12
Roof Framing: Truss
Roof Load: 30 psf
Roof Type: Shingles
Secondary Pitch: 4/12
Exterior Wall Framing
Exterior Wall Finish: Siding/Manufactured Stone
Framing: 2x6
Insulation: R-19
Additional Room Features
Loft
Storage Area
Workshop
Garage Features
Detached Garage
Front Entry Garage
RV Garage
Outdoor Spaces
Covered Front Porch
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Artist sketch of the front elevation and a plan sheet index
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing Room Dimensions, Wall Partitions, a Window and Door Schedule, Area Schedule, and General Notes
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details. * May be shown at 1/8" Scale.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Electrical Plan(s): Shows the locations of lights, receptacles, switches, etc. throughout the dwelling with a legend.
- Mechanical Plan(s): Shows the suggested location of mechanical items like a water heater and furnace (reference only). Ductwork and HVAC systems not included.
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Wall Section(s): Wall Sections for Porches, Main Structure, Garage, and Foundations (as Per Plan)
Questions? Call 1-800-447-0027
Plan Set
PDF Set:
$680.00
$680.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
$977.50
$977.50
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
PDF Unlimited Build:
$1105.00
$1105.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD and PDF Set Unlimited Build:
$1402.50
$1402.50
For use by design professionals to make substantial changes to your house plan and inexpensive local printing plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$250.75
$250.75
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Basement:
$335.75
$335.75
Ideal for level lot, lower level of home partially or fully underground.
Walk Out Basement:
$335.75
$335.75
Ideal for a sloping lot, lower level with outdoor access.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$250.75
$250.75
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$233.75
$233.75
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$59.50
$59.50
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$250.75
$250.75
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials directly onto your PDF (foundation to rooftop showing interior and exterior materials). Comprehensive material lists will be delivered 5-7 days after your plan order. Note, this product is only available with a PDF plan purchase.
Construction Guide:
$33.15
$33.15
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$140.25
$140.25
Receive an overlay sheet with suggested placement of lighting fixtures.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
