PLAN #928-3

Key Specs


7669
sq ft

5
Beds

6
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

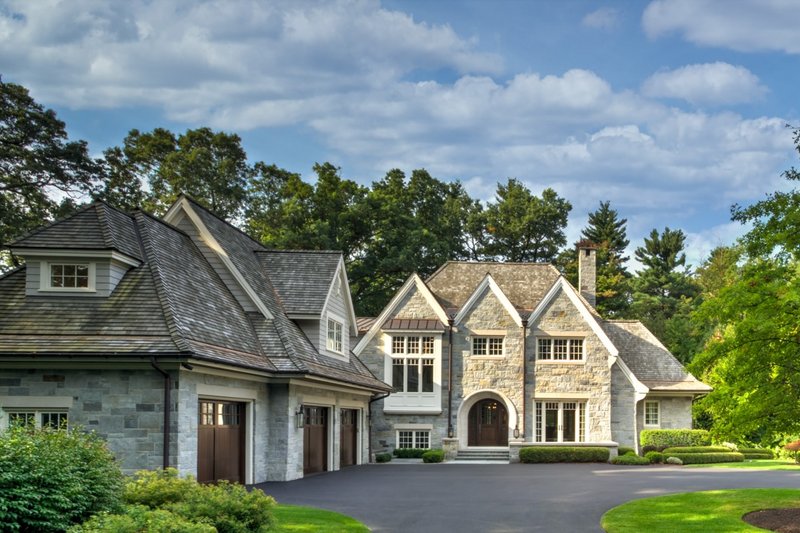

Meet a 5 bedroom 5 bath home with chateau character. The muiti-gabled entrance hugs a roundabout drive and quaint front patio, while the rear of the home offers rows of windows and two levels of patios. On the main level, the open living room includes a hearth and three sets of French doors to the rear covered porch. The spacious island kitchen opens to the dining room, complete with cozy a window booth. The luxurious master suite occupies one end of the first floor, while the upper level offers three bedroom suites and a bonus room that would make a great exercise space. The lower level provides an extra guest suite, along with room for gathering and entertaining (don't miss the impressive bar!).

Floor Plans


Floor Plan - Main Floor Plan
European Floor Plan - Main Floor Plan Plan #928-3
Floor Plan - Upper Floor Plan
European Floor Plan - Upper Floor Plan Plan #928-3
Floor Plan - Lower Floor Plan
European Floor Plan - Lower Floor Plan Plan #928-3

Full Specs & Features


Dimension
Depth : 106'
Height : 39' 2"
Width : 77' 6"
Area
Basement Living: 2160 sq/ft height 10'
Bonus: 600 sq/ft
First Floor: 3723 sq/ft height 10'
Second Floor: 1786 sq/ft height 9'
Ceiling
Lower Ceiling : 10'
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Roof Framing : Truss
Primary Pitch : 16:12
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2x6
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Wet Bar
Garage Features
Oversized Garage
Side Entry Garage
Rooms

Bedroom 2:

17 sq/ft width 7' 2" x depth 0"

Bedroom 3:

width 13' x depth 13' 7"

Bedroom 4:

width 13' x depth 13' 7"

Bedroom 5:

width 14' 2" x depth 16' 2"

Billiards:

width 20' x depth 12' 6"

Crafts:

width 13' 8" x depth 14' 3"

Dining:

width 16' x depth 19'

Exercise Room:

width 19' x depth 23'

Family Room:

width 20' x depth 12' 6"

Game Room:

width 20' x depth 11'

Garage:

width 40' x depth 23'

Hearth:

width 20' 5" x depth 13' 8"

Kitchen:

width 21' x depth 19'

Living Room:

width 20' 5" x depth 22' 6"

Loft:

width 19' 8" x depth 10' 6"

Master Bedroom:

width 16' 6" x depth 15'

Nursery:

width 10' 8" x depth 8' 6"

Play Room:

width 19' x depth 16' 2"

Study:

width 13' x depth 14' 4"

What's Included In This Plan Set


Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Plan Set

PDF Set :
$1495.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$3495.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.

Additional Options

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
