Key Specs


Plan Sq Ft

7900
sq ft

Plan Bedrooms

4
Beds

Plan Bathrooms

5
Baths

Plan Floors

2
Floors

Plan Garages

4
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$300.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$495.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$4600.00
Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
are Only $4.99
with Code CTB2024 (limit 1)
This report will provide you cost estimates based on location and building materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 132-353

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description


Worthy of admiration from every angle inside and out, this home is sure to leave a lasting impression. Lavishly appointed with every imaginable amenity, no detail was overlooked. The first floor marries the focal points of the indoor and outdoor living spaces. The second floor houses home entertainment options including a theater and game room. A kitchenette conveniently serves both. The magnificent master suite indulges with a private deck and an adjoining hearth-warmed sitting room. Enviable views are found throughout.

Full Specs & Features


Dimension

Depth : 135'

Height : 39' 7"

Width : 95'

Area

First Floor: 3400 sq/ft

Garage: 1345 sq/ft

Porch: 1240 sq/ft

Second Floor: 4500 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Shingle/Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Guest Suite

Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook

Butler's Pantry

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Hobby Rec Room Game Room

Loft

Master Sitting Area

Media Room

Mud Room

Storage Area

Unfinished Future Space

Upstairs Laundry

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Covered Front Porch

Covered Rear Porch

Deck

Grill Deck Sundeck

Outdoor Fireplace

Wrap Around Porch

Rooms

Master Bathroom:

286 sq/ft width 13' x depth 22'

Master Closet:

124 sq/ft width 15' 6" x depth 8'

Master Closet Two:

49 sq/ft width 6' x depth 8' 4"

Shop:

114 sq/ft width 12' x depth 9' 6"

What's Included In This Plan Set


Purchasing a CAD set gives you a multi-build license.

If you are building this plan in the state of Washington, please call us before placing your order.
  • This designer includes the bonus square feet in the total heated living square feet.
    • Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
    • Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
    • Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
    • Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

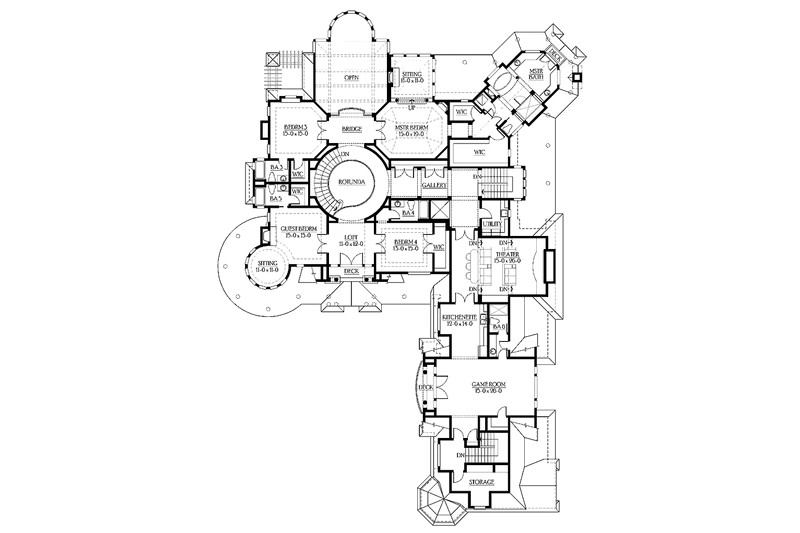

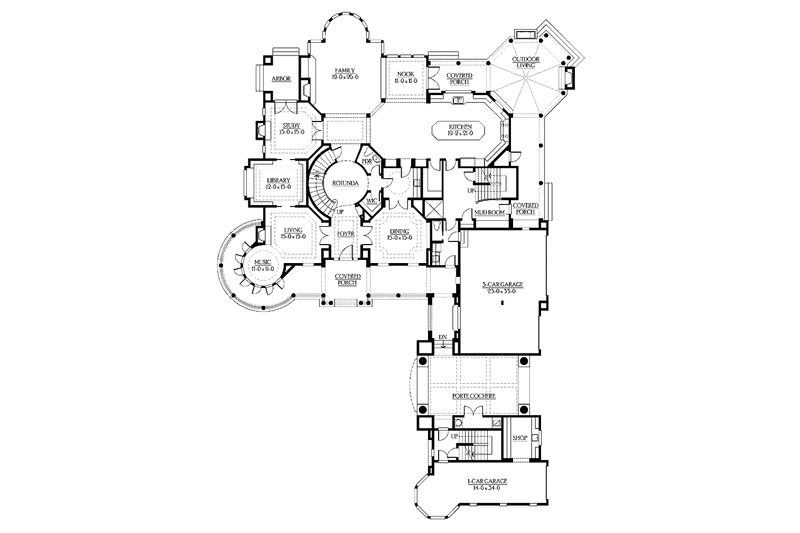

    • Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
