PLAN 132-522

Key Specs

7950
sq ft

4
Beds

5
Baths

2
Floors

4
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

This spectacular home boasts countless amenities, from a wraparound porch and home theater to the stand-alone guest studio and boat bay. Fireplaces warm the family and dining rooms, near the spacious island kitchen. The master suite includes an exceptional bumped-out bath for the feeling of bathing in nature. A swirling rotunda connects all three levels, including the lower level, which features a remarkable home theater, wine cellar, and kitchen. Family bedrooms include walk-in closets and decorative ceiling treatments.

Floor Plans

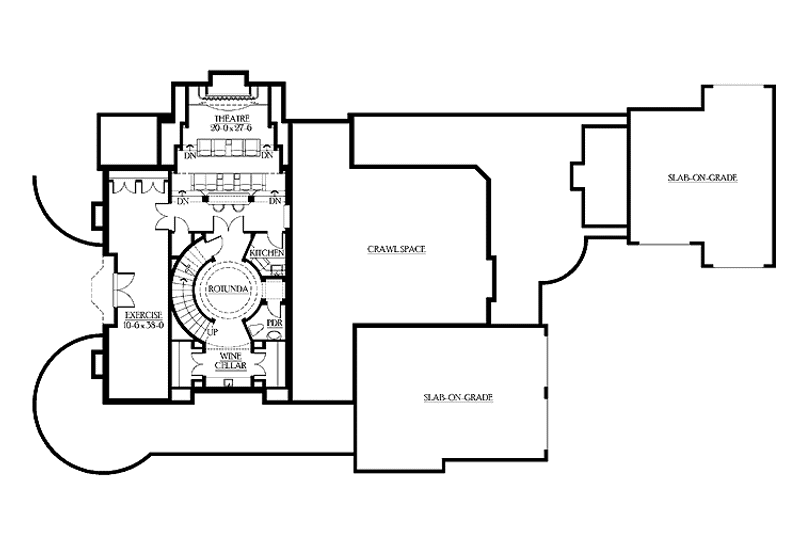

Floor Plan - Lower Floor Plan

Reverse

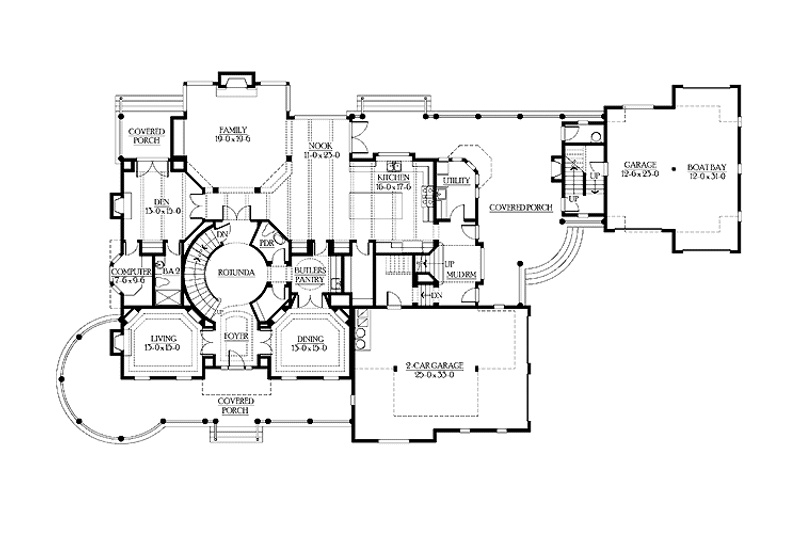

Floor Plan - Main Floor Plan

Reverse

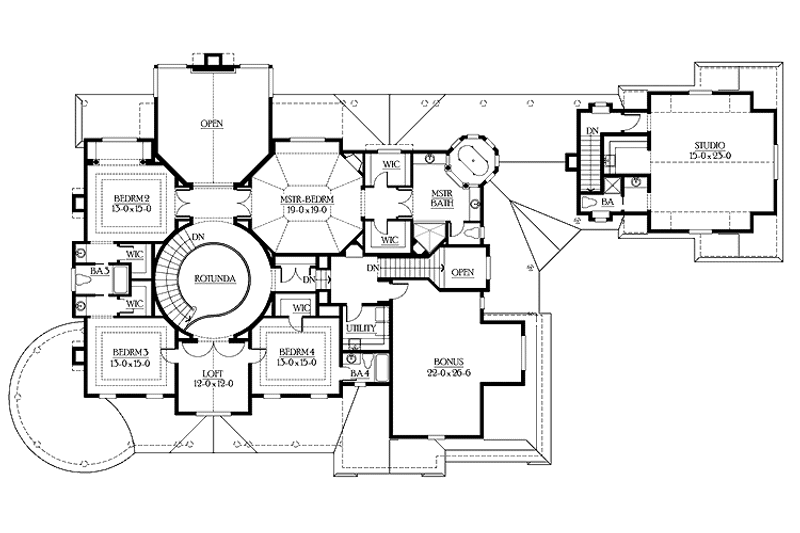

Floor Plan - Upper Floor Plan

Reverse

Full Specs & Features

Dimension

Depth : 71'
Height : 36' 2"
Width : 125'

Area

Basement Living: 1510 sq/ft
Bonus: 500 sq/ft
First Floor: 2895 sq/ft
Garage: 1584 sq/ft
Second Floor: 3545 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Upstairs Master Bedrooms

Kitchen Features

Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer
Exercise Room
Family Room Keeping Room
Hobby Rec Room Game Room
Loft
Master Sitting Area
Media Room
Mud Room
Storage Area
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Outdoor Fireplace
Wrap Around Porch

Jack & Jill Bath

Rooms

Bedroom 2:

195 sq/ft width 13' x depth 15'

Bedroom 3:

195 sq/ft width 13' x depth 15'

Bedroom 4:

195 sq/ft width 13' x depth 15'

Bonus Room - Finished:

500 sq/ft width 22' x depth 26' 6"

Den:

195 sq/ft width 13' x depth 15'

Dining Room:

195 sq/ft width 13' x depth 15'

Exercise Room:

399 sq/ft width 10' 6" x depth 38'

Family Room:

370 sq/ft width 19' x depth 19' 6"

Garage:

825 sq/ft width 25' x depth 33'

Garage Two:

287 sq/ft width 12' 6" x depth 23'

Kitchen:

280 sq/ft width 16' x depth 17' 6"

Living Room:

195 sq/ft width 13' x depth 15'

Loft:

144 sq/ft width 12' x depth 12'

Master Bedroom:

361 sq/ft width 19' x depth 19'

Nook:

253 sq/ft width 11' x depth 23'

Studio:

775 sq/ft width 15' x depth 25'

Theatre Room:

550 sq/ft width 20' x depth 27' 6"

What's Included In This Plan Set

Purchasing a CAD set or PDF set gives you a multi-build license. The 5 copy set allows you to build the home one time.

If you are building this plan in the state of Washington, please call us before placing your order.

Cover Sheet: The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet: The schedule sheet includes the window, roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

» See important information before purchasing.

Plan Set

PDF Set : $3300.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set : $3500.00	5 printed plan sets mailed to you.
CAD Set : $5300.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $150.00	Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets : $50.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $100.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $39.00	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner : $19.00	This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design : $200.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
