PLAN #25-4268

Key Specs


797
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

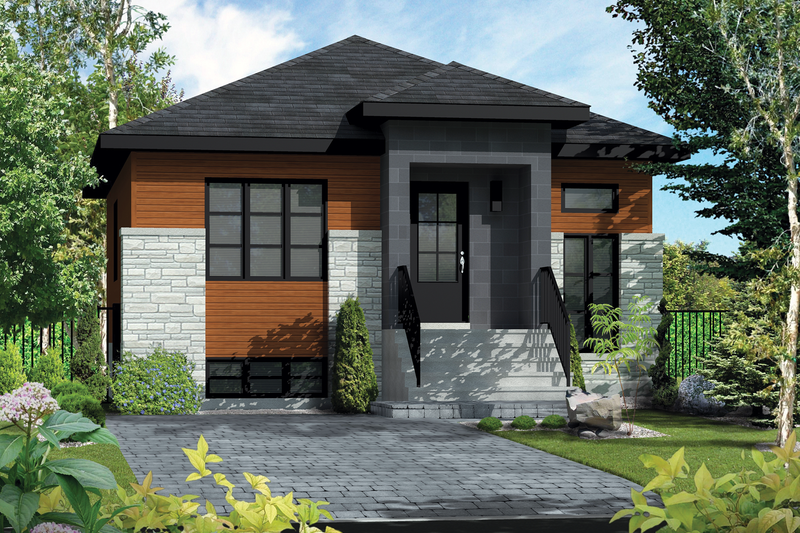

This distinctly urban brick, stone and wood bungalow stands out with its front porch, large windows and elegant exterior. The house is 26 feet 10 inches wide by 30 feet 6 inches deep and provides 797 square feet of living space.

 The open-concept home includes a living room, a dining room, an L-shaped kitchen with a large island, two bedrooms and a bathroom with a separate shower.

Floor Plans

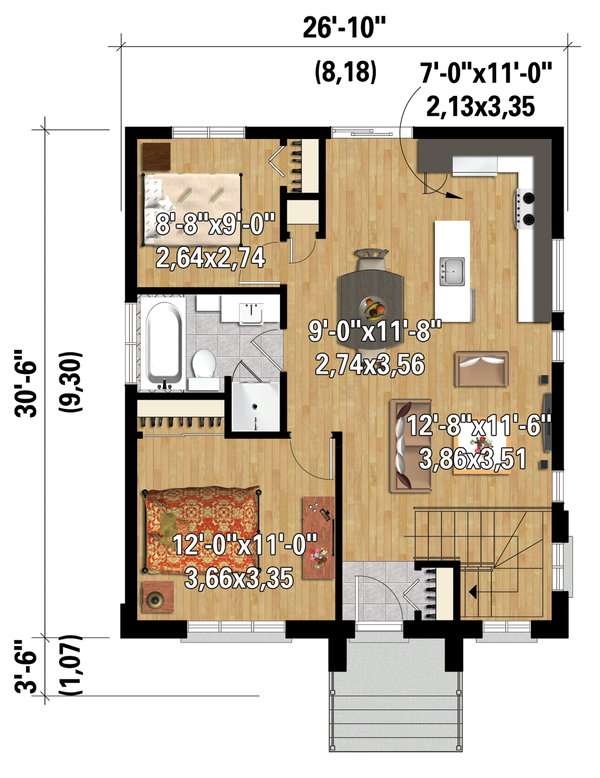

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

Full Specs & Features


Dimension Depth : 30' 6"
Height : 20' 5"
Width : 26' 10"
Area Basement : 0 sq/ft
Garage : 0 sq/ft
Lower Floor : 0 sq/ft
Main Floor : 797 sq/ft
Upper Floor : 0 sq/ft
Ceiling Main Ceiling : 8'
Roof Roof Framing : Truss
Roof Load : 50
Primary Pitch : 6/12
Secondary Pitch : 6/12
Exterior Wall Framing Insulation : R20
Exterior Wall Finish : Brick Shingle Stone
Framing : Wood - 2 x 6

What's Included In This Plan Set


Planimage

  • Exterior elevations: Four detailed exterior elevations showing the final appearance of each side of the house.
  • Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
  • Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
  • Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
» See important information before purchasing.
Plan Set
5 Copy Set :
$535.00
5 printed plan sets mailed to you.
8 Copy Set :
$575.00
8 printed plan sets mailed to you.
PDF Set :
$700.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1070.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1300.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$535.00
Ideal for level lot, lower level of home partially or fully underground.
Additional Options
Material List :
90.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
