Photographs may show modified designs.
PLAN 119-211
Key Specs
8280
sq ft
5
Beds
5
Baths
2
Floors
4
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Phone: 1-800-447-0027
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 119-211
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Full Specs & Features
Dimension
Depth : 93'
Height : 45'
Width : 119'
Height : 45'
Width : 119'
Area
Bonus: 360 sq/ft
First Floor: 4754 sq/ft height 10'
Garage: 1320 sq/ft
Second Floor: 3526 sq/ft height 9'
First Floor: 4754 sq/ft height 10'
Garage: 1320 sq/ft
Second Floor: 3526 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Loft
Master Sitting Area
Media Room
Play Flex Room
Storage Area
Family Room Keeping Room
Great Room Living Room
Loft
Master Sitting Area
Media Room
Play Flex Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Side Entry Garage
Entryway
Friend S Entry
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Suited For View Lot
Outdoor Spaces
Balcony
More
Jack & Jill Bath
Rooms
Bedroom 2:
338 sq/ft width 19' 4" x depth 17' 6"
Bedroom 3:
300 sq/ft width 17' 2" x depth 17' 6"
Bedroom 4:
296 sq/ft width 16' 11" x depth 17' 6"
Bonus Room - Unfinished:
373 sq/ft width 24' 6" x depth 15' 3"
Garage:
1020 sq/ft width 25' 6" x depth 40'
Grand Room:
476 sq/ft width 26' x depth 18' 4"
Guest Bedroom:
255 sq/ft width 17' x depth 15'
Keeping Room:
444 sq/ft width 23' 5" x depth 19'
Kitchen:
397 sq/ft width 26' 6" x depth 15'
Master Bedroom:
274 sq/ft width 16' x depth 17' 2"
Media Room:
177 sq/ft width 8' 1" x depth 22'
Study:
301 sq/ft width 17' 7" x depth 17' 2"
Study - Upper:
123 sq/ft width 13' x depth 9' 6"
What's Included In This Plan Set
- Cover Sheet: The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
- Foundation: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

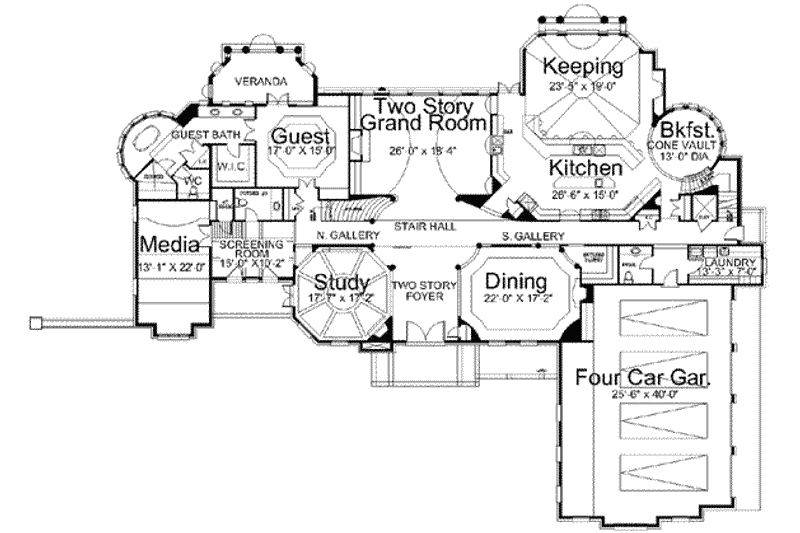

- First Floor Plan: This page is drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules. *Framing is not included.

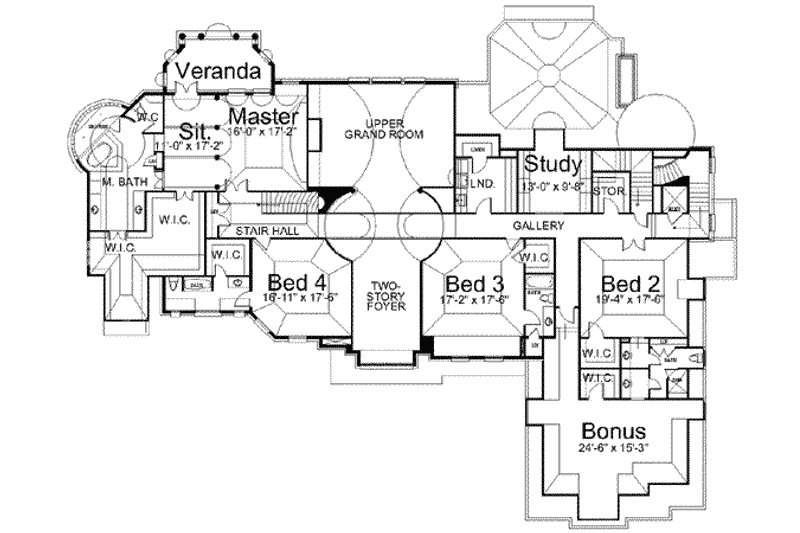

- Second Floor Plan: The second floor includes stair details. Often the reflective roof detail is shown legibly over the second floor plan. This is helpful for the framing contractor. *Framing is not included.
- Lighting and Electrical: On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is common place to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
- Second Floor Lighting: The same details as provided for the first floor.

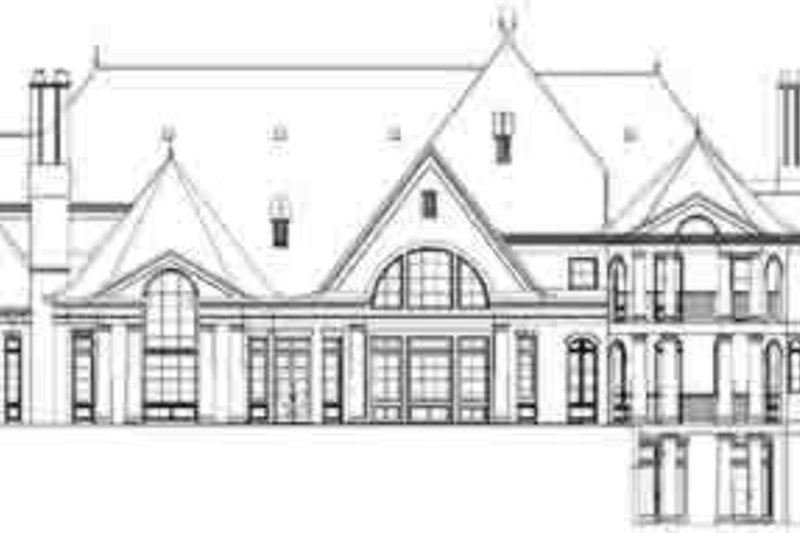

- Front and Rear Elevations: The front and rear elevations may be on separate pages depending on the size of the house. This page comes with exterior dimensions and notes required to complete construction. This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.
- Right and Left Elevations: The right and left elevations provide the same details as the front and rear elevations.
- Roof Plan: This drawing, usually at ¼”=1’-0” scale, will be a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.*Framing is not included.
- Cross-Sections: Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
- Cabinet Elevations*: Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes. Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified. Archival Designs believes cabinets should reflect your taste and budget. After framing and sheet rock installation sizes of walls may change slightly. The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: The majority of house plans will include cabinet elevations in construction set; however, not all will include.
- General Notes: Separate sheets that provide standard construction notes, in addition included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
Questions? Call 1-800-447-0027
Plan Set
| PDF Set
: $4095.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Single Build
: $4895.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
| 5 Copy and PDF Set
: $5000.00 |
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Additional Options
| Right-Reading Reverse
: $200.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
| Unlimited Use License
: $795.00 |
Unlimited Use License. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
