PLAN #923-5

Key Specs


844
sq ft

1
Beds

1
Baths

2
Floors

0
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

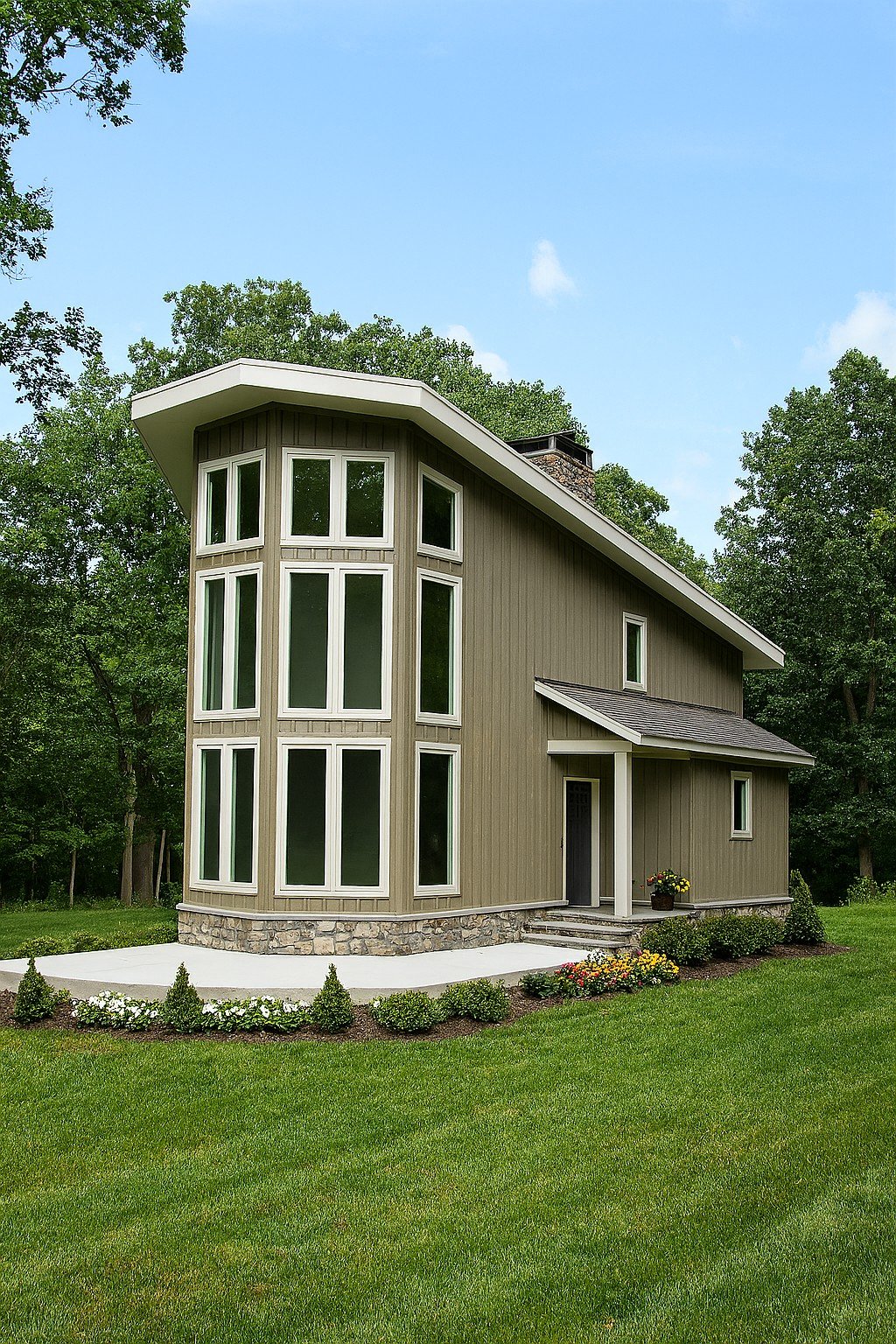

Perfect for a vacation home, this unique plan would work well on a narrow lot or a waterfront property. The great room is flooded with natural light from the wall of floor to ceiling windows. Upstairs is a roomy sleeping loft that overlooks the great room. Outside, there is a terrific wrap-around deck.

Floor Plans


Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan
Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Dimension Depth : 42'
Height : 24' 3"
Width : 28' 6"
Area Main Floor : 629 sq/ft
Porch : 72 sq/ft
Upper Floor : 215 sq/ft
Ceiling Main Ceiling : 8'
Upper Ceiling Ft : 8'
Roof Roof Framing : Stick
Roof Load : 45 lb/sf
Primary Pitch : 3:12
Exterior Wall Framing Insulation : R13
Framing : 2x6
Bedroom Features Upstairs Bedrooms
Kitchen Features Kitchen Island
Additional Room Features Great Room Living Room
Main Floor Laundry
Outdoor Spaces Grill Deck Sundeck
More Suited For Vacation Home

What's Included In This Plan Set


Michael E Nelson Designs, LLC

  • Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost.
  • Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
  • Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
  • Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. **
  • Kitchen and bath elevations: The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer.
  • Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
  • Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
» See important information before purchasing.
Plan Set
5 Copy Set :
$680.00
5 printed plan sets mailed to you.
8 Copy Set :
$795.00
8 printed plan sets mailed to you.
PDF Set :
$1225.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1885.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Single Set :
$610.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
50.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Construction Engineering Guide :
39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
