PLAN #430-1

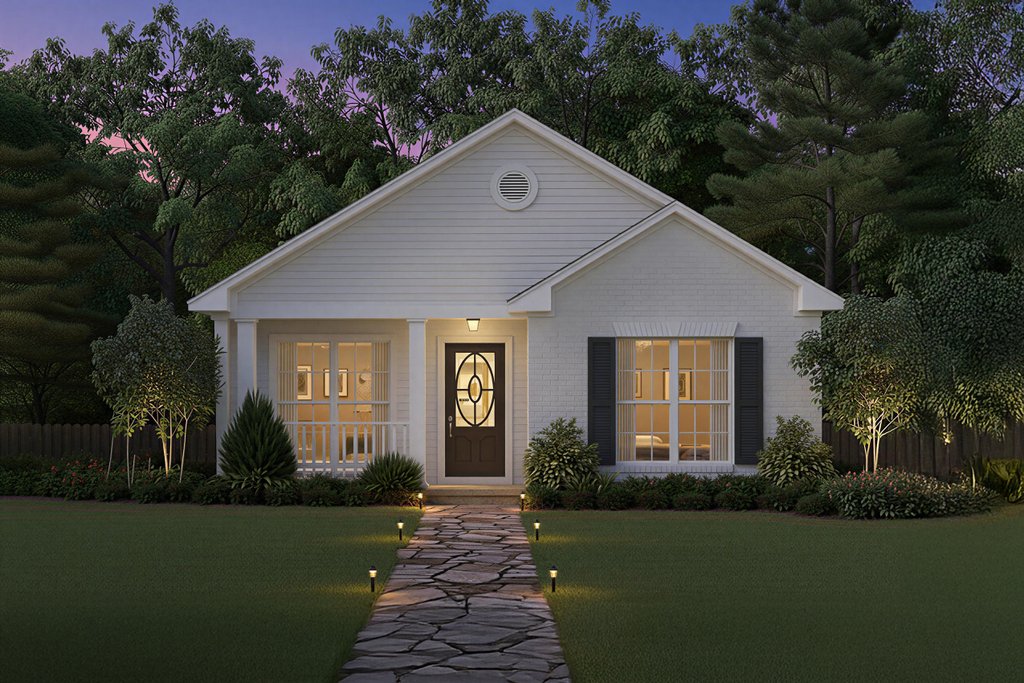

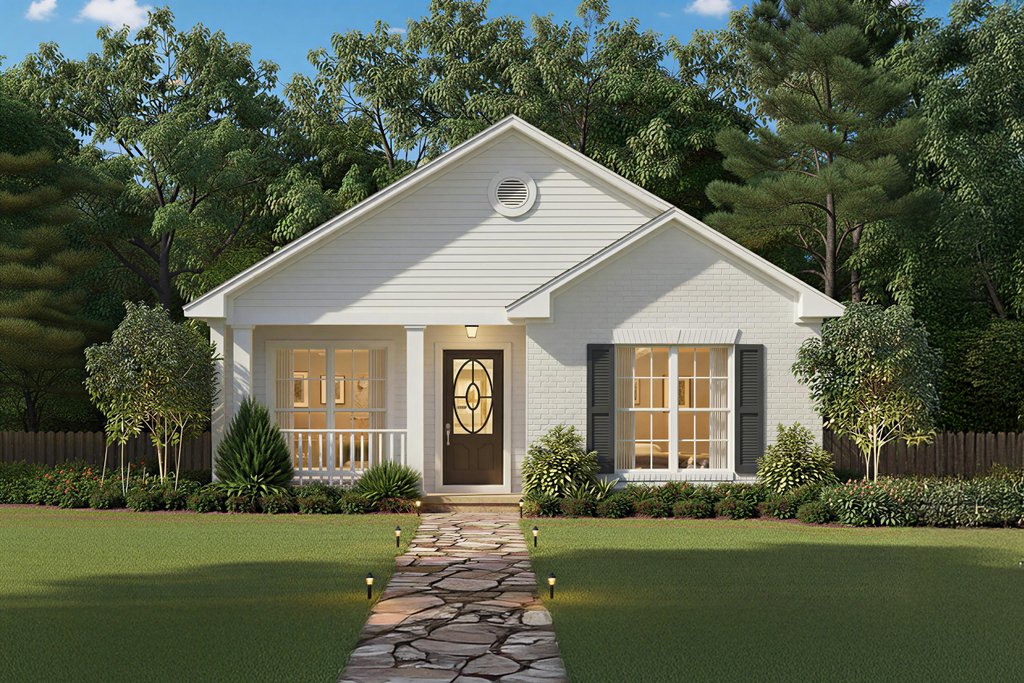

Photographs may show modified designs.

Save
Select Plan Set Options
What's included?
Additional Construction Sets
$100.00/each
Mirror Reversed Sets
$0.00
Subtotal
$945.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?
Need an answer fast? Call us at 1-800-447-0027

We do our best to get back within 24 - 48 business hours.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN #430-1

Key Specs


850
sq ft

2
Beds

1
Baths

1
Floors

0
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans


Floor Plan - Main Floor Plan
Traditional Floor Plan - Main Floor Plan Plan #430-1

Full Specs & Features


Dimension
Depth : 31'
Height : 17' 6"
Width : 30'
Area
First Floor: 850 sq/ft height 8'
Ceiling
Main Ceiling : 8'
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : 2"x4"
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
More
Economical To Build
Rooms

Bedroom 1:

width 11' 6" x depth 10' 2"

Bedroom 2:

width 11' 6" x depth 10'

Covered Front Porch:

80 sq/ft width 14' 4" x depth 5' 7"

Kitchen/ Dining Area:

width 17' 6" x depth 10' 2"

Living Room:

width 14' x depth 14' 3"

Rear Patio:

width 19' x depth 8'

What's Included In This Plan Set


  • Cover Sheet – May include index, front view of home, definitions, etc.
  • Foundation Plan – Typically includes dimensioned foundation plan with footing details.
  • Dimensioned Floor Plan – Electrical may be shown.
  • Exterior Views – Four exterior views of the residence with other miscellaneous details.
  • Roof Plan – Birds eye view showing all ridges, valleys and other necessary information.
  • Electrical Plan – Displays all switches, lighting fixtures, outlets and other necessary electrical items. These items may be shown on the Dimensioned Floor Plan.
  • Wall Section(s) – Detail of wall materials and assembly.
  • Building Section(s) – Section through home displaying necessary information about framing and other miscellaneous data.
  • Cabinet Elevations – Displays interior kitchen cabinet views.

*Note: If adding a material list to your order, foundation materials will not be included due to site specific conditions.

» See important information before purchasing.

Plan Set

PDF Set :
$945.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1095.00
5 printed plan sets mailed to you.
CAD Set :
$1745.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$395.00
Ideal for level lot, lower level of home partially or fully underground.
Daylight Basement:
$395.00
Ideal for sloping lot, lower level of home partially underground.

Additional Options

Additional Construction Sets :
$100.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Engineering Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$195.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$0.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
