Full Specs & Features
Depth : 35' 6"
Height : 12' 1"
Width : 24'
First Floor: 852 sq/ft height 8'
Main Ceiling : 8'
Primary Pitch : 4:12
Roof Framing : Conventional
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Main Floor Bedrooms
Main Floor Master Bedroom
Additional Room Features
Great Room Living Room
Main Floor Laundry
Open Floor Plan
Suited For Narrow Lot
Covered Front Porch
Suited For Vacation Home
88 sq/ft width 9' x depth 9' 10"
90 sq/ft width 9' x depth 10'
Covered Left Side Ramp:
Covered Rear Porch:
136 sq/ft width 10' 2" x depth 13' 4"
180 sq/ft width 12' 10" x depth 14'
93 sq/ft width 9' 5" x depth 9' 10"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

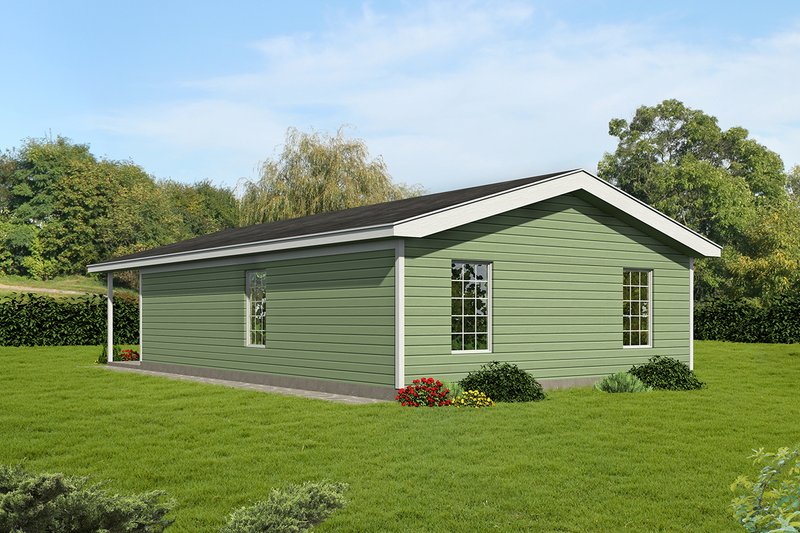

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.

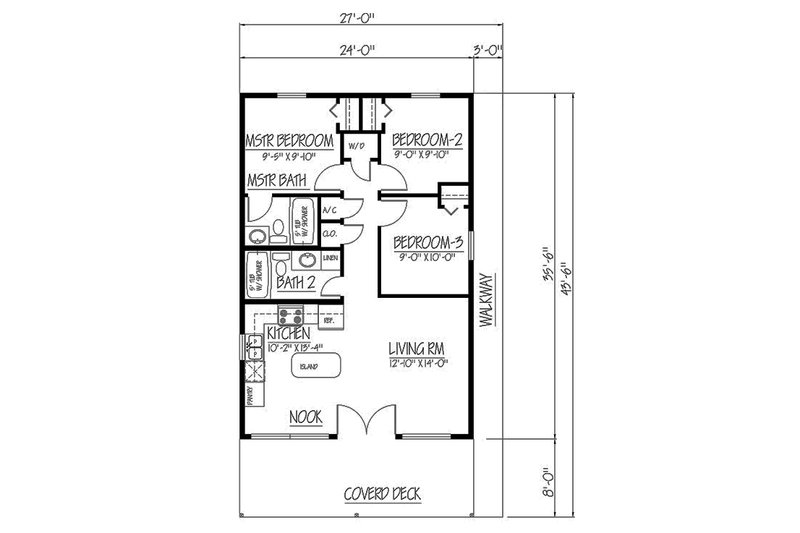

- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
