PLAN 25-1107
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

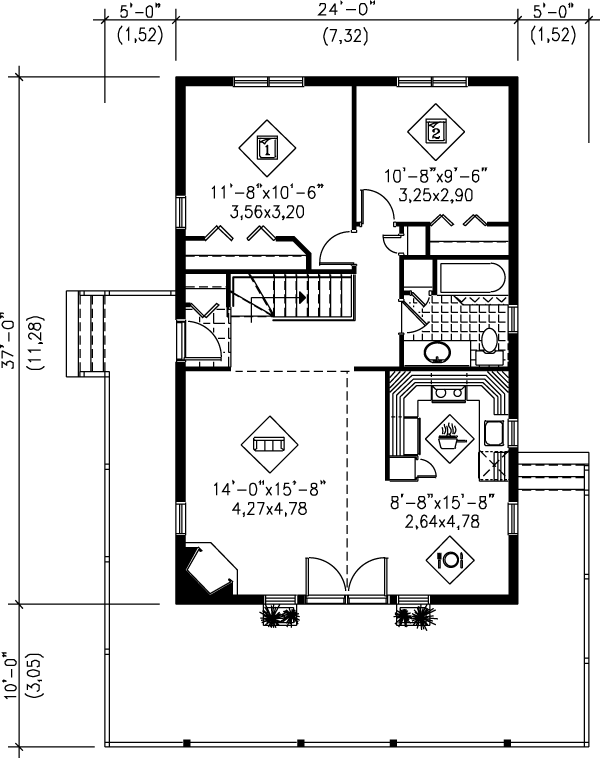

Floor Plans
Full Specs & Features
Dimension
Depth : 37'
Height : 19' 10"
Width : 24'
Area
First Floor: 888 sq/ft height 8'
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Additional Room Features
Unfinished Future Space
Lot Characteristics
Suited For Narrow Lot
Suited For View Lot
Outdoor Spaces
Wrap Around Porch
More
Suited For Vacation Home
What's Included In This Plan Set
-
Exterior elevations:
- Foundations plan: Different isometric views with dimensions as well as relevant information to build the foundations.
- Floor plans: A drawing of each floor of the house showing the size of the rooms and the location of windows and staircases.
- Cross-section View: Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details.
-
Four detailed exterior elevations showing the final appearance of each side of the house.
Plan Set
$584.00
$620.00
$676.00
$1400.00
Foundation
$0.00
Additional Options
$120.00
$40.00
$132.00
$236.00
$31.20
$132.00
$120.00
$200.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
