PLAN 453-609

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

European-inspired details add richness to this stunning home. The grand foyer, with elegantly curving staircase, leads the way to the formal dining room and study. Through the gallery’s arched openings and barreled ceiling are areas designed for conversation and enjoyment. Whether sitting fireside in the family room, the great room, or the master suite’s sitting area or relaxing on the breakfast room banquette while gazing into the rear yard, everyone will have a favorite place to enjoy. Don't miss the spacious laundry/craft room, the private exercise space in the master bath, or the nanny's suite on the third floor. An elevator makes it easy to get around.

Floor Plans

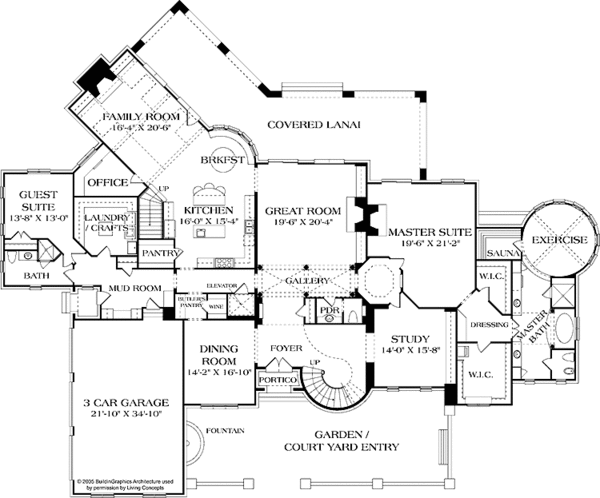

Floor Plan - Main Floor Plan

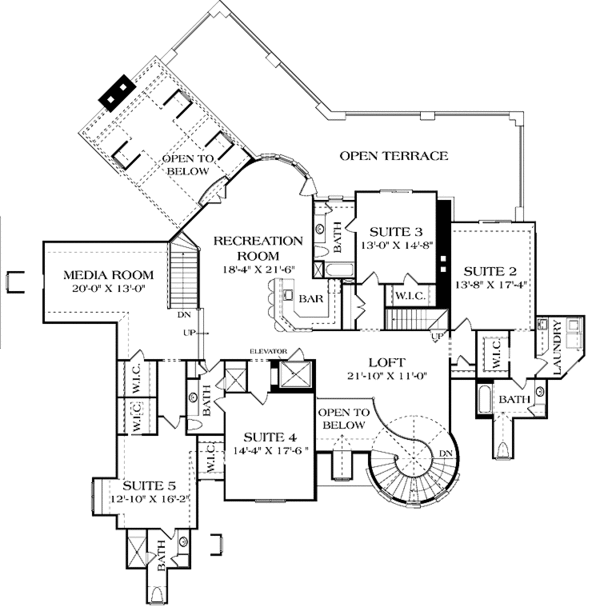

Floor Plan - Upper Floor Plan

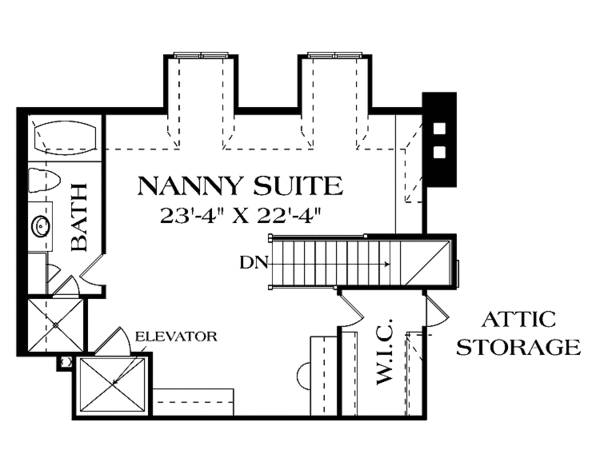

Floor Plan - Other Floor Plan

Full Specs & Features

Depth : 100' 4"
Width : 120' 10"
First Floor: 4870 sq/ft height 10'
Garage: 844 sq/ft height 10'
Second Floor: 3328 sq/ft height 9'
Third Floor: 735 sq/ft height 9'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Exterior Wall Framing
Exterior Wall Finish : Stone
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Upstairs Laundry
Outdoor Spaces
Covered Rear Porch
Wheelchair Adaptable

Dining Room:

238 sq/ft width 14' 2" x depth 16' 10"

Family Room:

334 sq/ft width 16' 4" x depth 20' 6"


760 sq/ft width 21' 10" x depth 34' 10"

Great Room:

396 sq/ft width 19' 6" x depth 20' 4"

Guest Bedroom 5:

207 sq/ft width 12' 10" x depth 16' 2"

Guest Suite:

177 sq/ft width 13' 8" x depth 13'

Guest Suite 2:

233 sq/ft width 13' 8" x depth 17' 1"

Guest Suite 3:

190 sq/ft width 13' x depth 14' 8"

Guest Suite 4:

250 sq/ft width 14' 4" x depth 17' 6"


250 sq/ft width 16' 4" x depth 15' 4"


240 sq/ft width 21' 10" x depth 11'

Master Suite:

412 sq/ft width 19' 6" x depth 21' 2"

Media Room:

260 sq/ft width 20' x depth 13'

Recreation Room:

394 sq/ft width 18' 4" x depth 21' 6"


219 sq/ft width 14' x depth 15' 8"

What's Included In This Plan Set

See a sample plan set This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Wood 2x4:
Wood 2x4

Additional Options

Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
