PLAN 45-383

Key Specs


984
sq ft

2
Beds

2
Baths

1
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

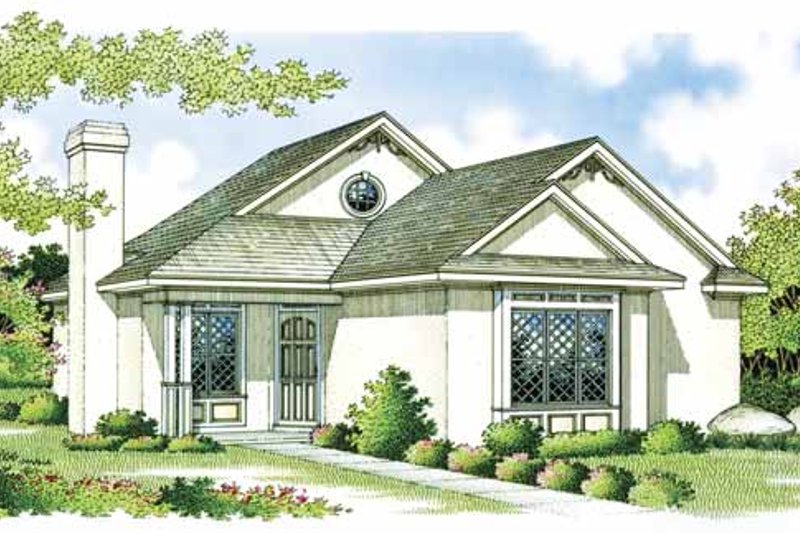

This snug home features an efficient lay out with no wasted space. Brightened by a clerestory window, the living room features a sloped ceiling and a warming fireplace. A spacious master suite enjoys a lavish bath with a garden tub set in a bay, and a walk-in closet. The secondary bedroom has access to the hall bath. Wood trim and eye-catching windows make this home charming as well as practical.

Floor Plans

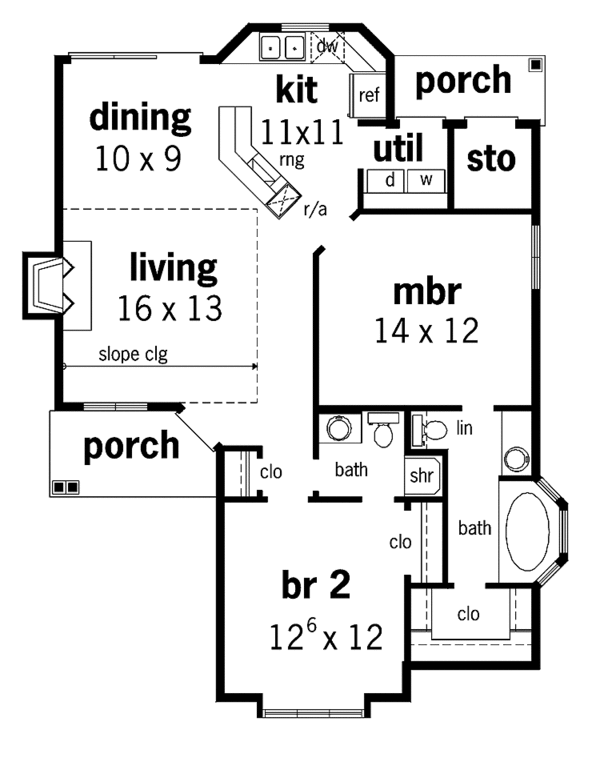

Floor Plan - Main Floor Plan
Reverse
Craftsman Floor Plan - Main Floor Plan Plan #45-383

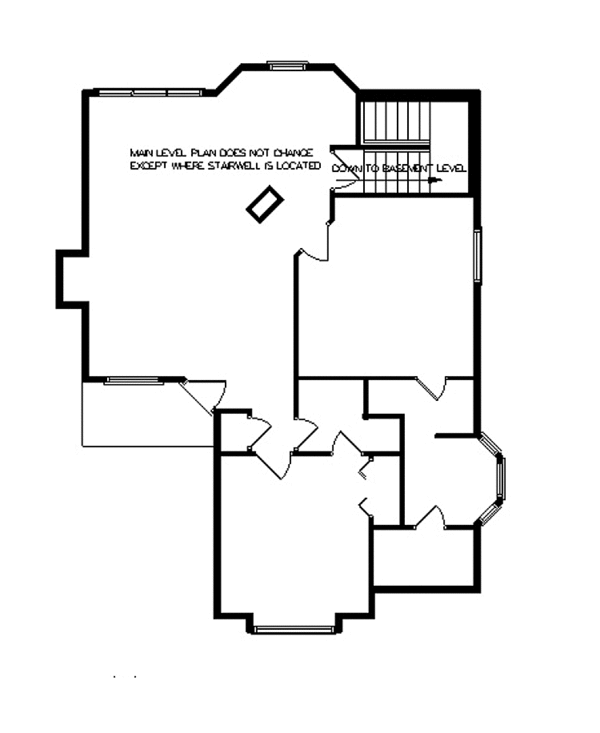

Floor Plan - Other Floor Plan
Reverse
Craftsman Floor Plan - Other Floor Plan Plan #45-383

Full Specs & Features


Dimension
Depth : 43'
Height : 20'
Width : 33' 9"
Area
First Floor: 984 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 8:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Open Floor Plan
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Front Porch:

width 10' x depth 5'

Hall Bathroom:

44 sq/ft width 5' 6" x depth 8'

Laundry Room:

31 sq/ft width 5' 6" x depth 5' 9"

Master Bathroom:

65 sq/ft width 5' 10" x depth 11' 2"

Master WIC:

width 8' x depth 5'

Rear porch:

width 9' x depth 4'

Storage:

30 sq/ft width 5' 6" x depth 5' 6"

What's Included In This Plan Set


  • Information Cover Sheet
  • Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
  • Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
  • Exterior Views
  • Building Sections & Interior Elevations
  • Complete Construction Details
  • Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
» See important information before purchasing.

Plan Set

PDF Set :
$620.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$700.00
5 printed plan sets mailed to you.
8 Copy Set :
$760.00
8 printed plan sets mailed to you.
Reproducible Set :
$780.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1240.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$100.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$100.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$20.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$70.00
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$60.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
