PLAN #45-233

Key Specs


998
sq ft

3
Beds

1
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Floor Plans

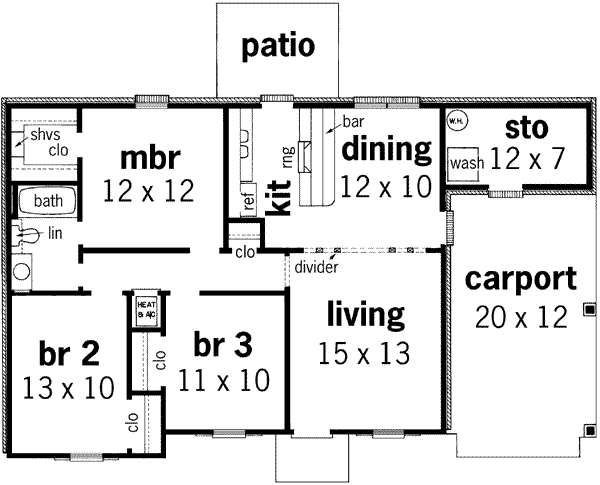

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #45-233

Full Specs & Features


Dimension
Depth : 29'
Height : 18'
Width : 48'
Area
First Floor: 998 sq/ft height 8'
Exterior Wall Framing
Framing : 2"x4"
Bedroom Features
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Storage Area
Garage Features
Carport Porte Cochere
Rooms

Bedroom 2:

130 sq/ft width 13' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Living Room:

195 sq/ft width 15' x depth 13'

Master Bedroom:

144 sq/ft width 12' x depth 12'

Storage:

84 sq/ft width 12' x depth 7'

What's Included In This Plan Set


  • Information Cover Sheet
  • Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
  • Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
  • Exterior Views
  • Building Sections & Interior Elevations
  • Complete Construction Details
  • Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
» See important information before purchasing.
Plan Set
PDF Set :
$558.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$630.00
5 printed plan sets mailed to you.
8 Copy Set :
$684.00
8 printed plan sets mailed to you.
Reproducible Set :
$702.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1116.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$90.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Additional Options
Material List :
63.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
112.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
18.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
