PLAN 47-782
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description
This compact, three-bedroom design offers all the amenities of a larger home.
Railings separating the foyer and basement stairs enhance the spaciousness of
the entry. The country kitchen offers wrapping U-shaped counters and a double
sink with a window. Bedrooms revolve around a master bathroom with a soaking
tub. The living room has a fireplace and the breakfast area offers sliding
glass doors leading outside to the patio.
Floor Plans

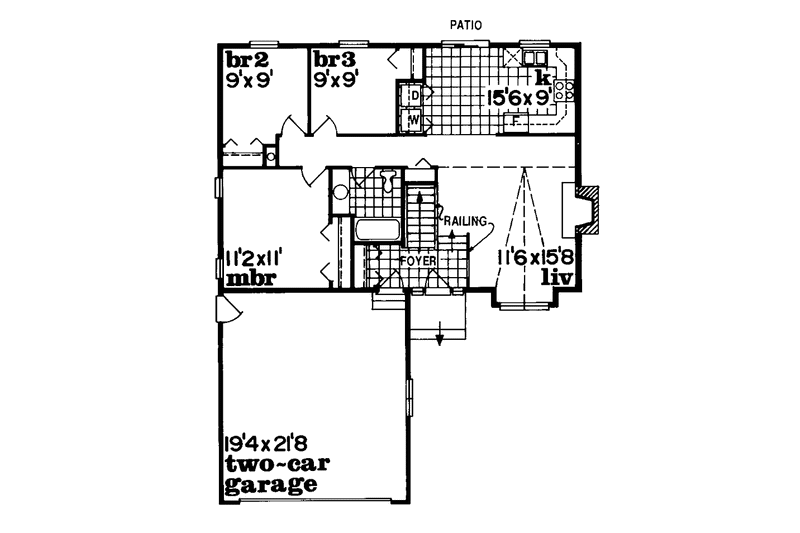

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 48' 4"
Height : 20'
Width : 38'
Area
First Floor: 1000 sq/ft height 8'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Rooms
3rd BR Closet:
7 sq/ft width 2' 6" x depth 3'
Basement Foundation:
988 sq/ft width 38' x depth 26'
Bedroom 2:
81 sq/ft width 9' x depth 9'
Bedroom 2 Closet:
8 sq/ft width 4' 2" x depth 2'
Bedroom 3:
81 sq/ft width 9' x depth 9'
Bedroom 3 Closet:
8 sq/ft width 4' 2" x depth 2'
Foyer:
41 sq/ft width 9' 4" x depth 4' 6"
Garage:
418 sq/ft width 19' 4" x depth 21' 8"
Hall Bathroom:
54 sq/ft width 7' 4" x depth 7' 6"
Kitchen:
139 sq/ft width 15' 6" x depth 9'
Living Room:
180 sq/ft width 11' 6" x depth 15' 8"
Master Bedroom:
137 sq/ft width 11' 2" x depth 12' 4"
Master Closet:
14 sq/ft width 2' x depth 7' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
