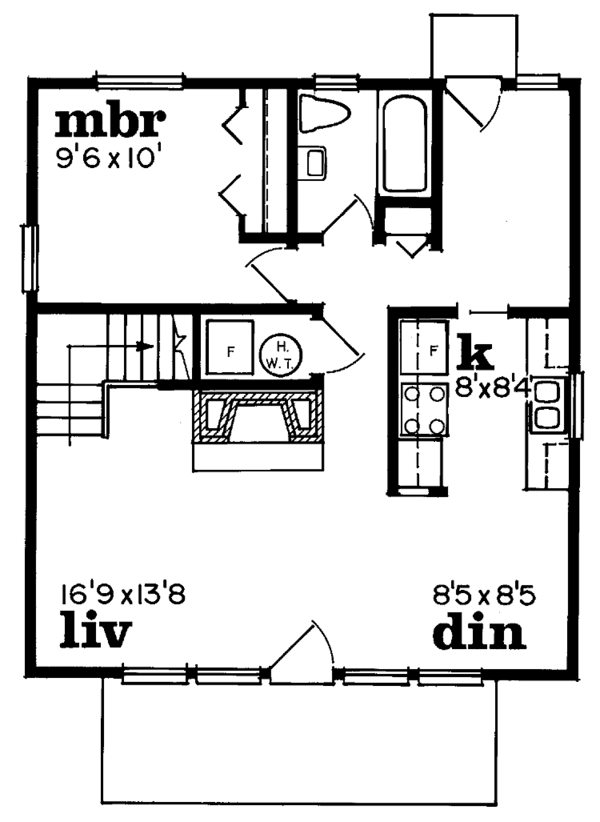

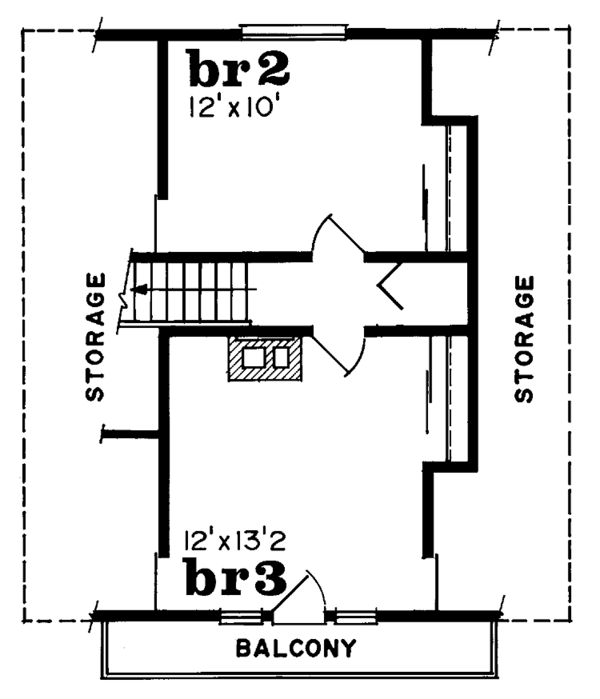

120 sq/ft width 12' x depth 10'
158 sq/ft width 12' x depth 13' 2"
70 sq/ft width 8' 5" x depth 8' 5"
66 sq/ft width 8' x depth 8' 4"
228 sq/ft width 16' 9" x depth 13' 8"
95 sq/ft width 9' 6" x depth 10'
All plans are drawn at ¼” scale or larger and include :
|PDF Set :
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|5 Copy Set :
|5 printed plan sets mailed to you.|
|8 Copy Set :
|8 printed plan sets mailed to you.|
|Reproducible Set :
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|CAD Set :
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for level lot, lower level of home partially or fully underground.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Right-Reading Reverse :
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets :
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Additional Use License :
|Additional Use License.|
|Audio Video Design :
|Receive an overlay sheet with suggested placement of audio and video components.|
|Construction Guide :
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Material List :
|A list of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.|
|Mirror Reversed Sets :
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
|Unlimited Use License :
|Unlimited Use License.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
