PLAN 952-190
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

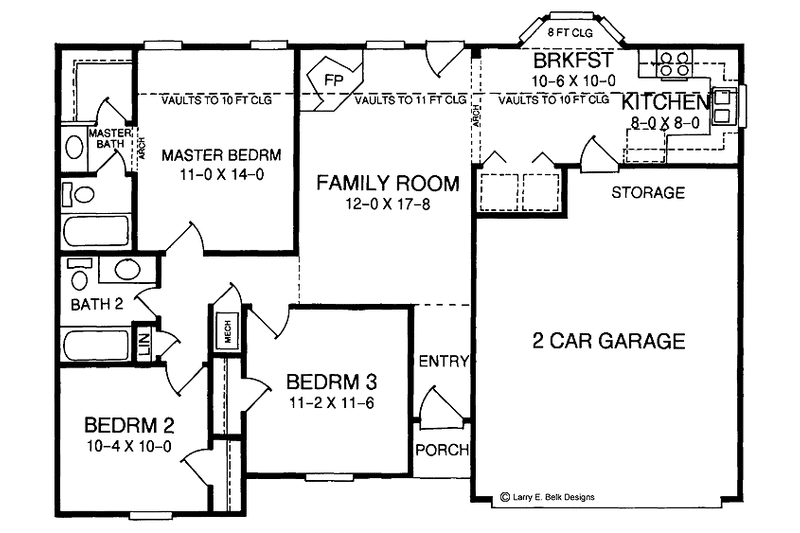

Floor Plans
Full Specs & Features
Dimension
Depth : 35' 6"
Height : 18'
Width : 48' 10"
Area
First Floor: 1142 sq/ft
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Fireplace
Additional Room Features
Great Room Living Room
Rooms
Bedroom 2:
103 sq/ft width 10' 4" x depth 10'
Bedroom 3:
128 sq/ft width 11' 2" x depth 11' 6"
Breakfast Room:
105 sq/ft width 10' 6" x depth 10'
Family Room:
212 sq/ft width 12' x depth 17' 8"
Garage:
351 sq/ft width 18' 4" x depth 19' 2"
Garage Storage:
41 sq/ft width 3' 4" x depth 12' 4"
Kitchen:
640 sq/ft width 80' x depth 8'
Master Bedroom:
154 sq/ft width 11' x depth 14'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$752.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$48.00
$80.00
$31.20
$44.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
