PLAN 118-168

Photographs may show modified designs.

Save
  • Jump to:
  • All (5)
  • Floor plans (2)
Questions? Get Personalized Help

Key Specs


Plan Sq Ft

1173
sq ft

Plan Bedrooms

2
Beds

Plan Bathrooms

1.5
Baths

Plan Floors

2
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$116.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List
$236.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
NOW $596.00
You save $149.00 (20% savings)
Sale ends soon!
Best Price Guaranteed*

Also order by phone: 1-800-447-0027

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-800-447-0027
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.



Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 118-168

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

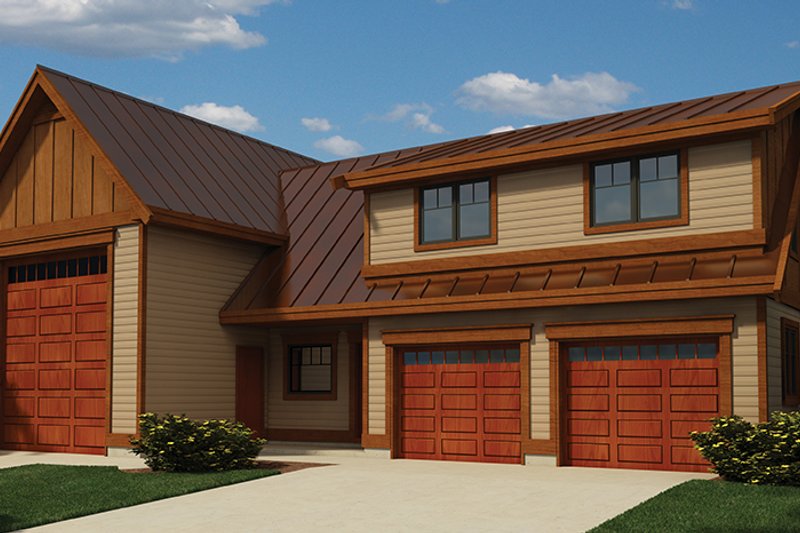

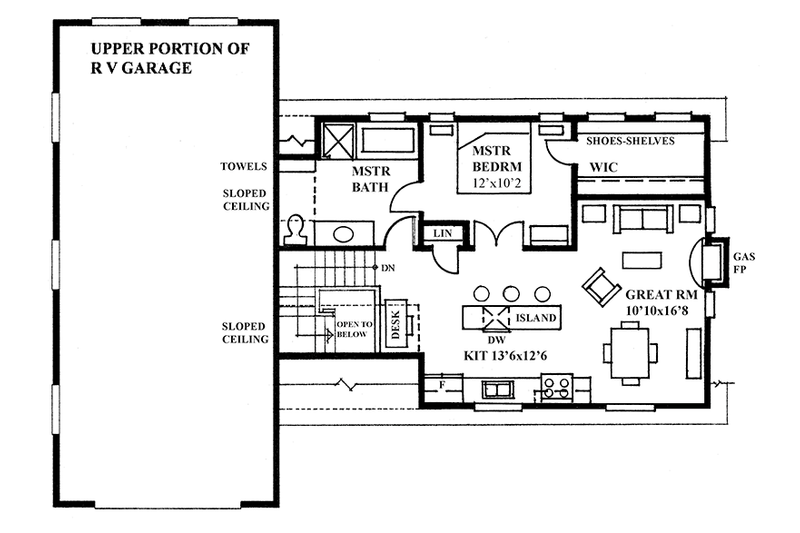

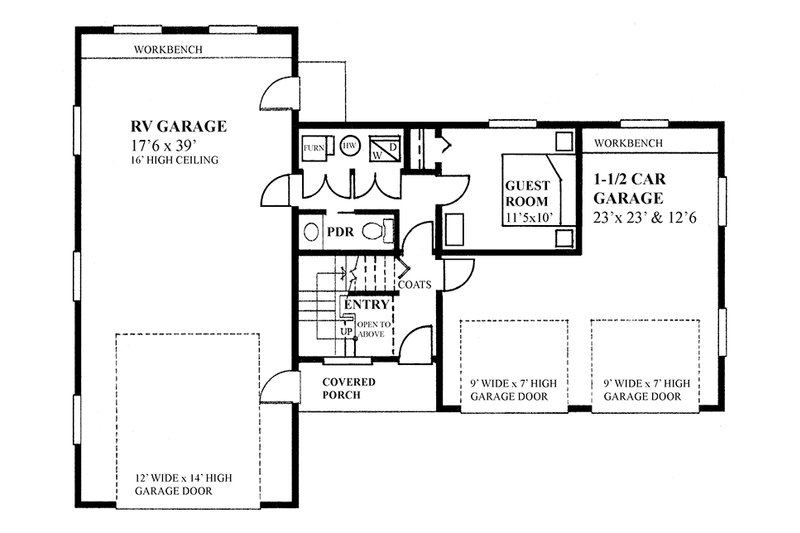

The RV garage portion of this combination garage plan has a sixteen foot high ceiling accessed though a fourteen foot high by twelve foot wide overhead door. The one and one half car garage has an eight foot high ceiling with two seven foot high by nine foot wide overhead doors. The half garage portion is perfect for a small car, boat, motorcycle, ATV or a gardening storage space. The covered porch opens into the vaulted entry with direct access to the guest bedroom which contains a conveniently located half bathroom and laundry facilities. The second level is an open concept plan centred around a massive kitchen island. The master bedroom is flanked by the four piece bath and a spacious walk-in closet.

Full Specs & Features


Dimension

Depth : 40'

Height : 26' 2"

Width : 54'

Area

First Floor: 369 sq/ft height 8'

Garage: 1177 sq/ft

Second Floor: 804 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Roof Framing : Combination Truss/Conventional

Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Guest Suite

Split Bedrooms

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Vaulted / Cathedral Ceilings

Workshop

Garage Features

Front Entry Garage

RV Garage

Outdoor Spaces

Covered Front Porch

Rooms

Great Room:

170 sq/ft width 10' 10" x depth 16' 8"

Guest Room:

114 sq/ft width 11' 5" x depth 10'

Half Garage:

150 sq/ft width 12' 6" x depth 13'

Kitchen:

169 sq/ft width 13' 6" x depth 12' 6"

Master Bedroom:

122 sq/ft width 12' x depth 10' 2"

RV Garage:

740 sq/ft width 17' 6" x depth 39'

Standard Garage:

287 sq/ft width 12' 6" x depth 23'

What's Included In This Plan Set


  • Cover sheet with rendering and art floor plans
  • General notes and specifications
  • Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″
  • Foundation plan at 1/4″=1′-0″
  • Main floor plan at 1/4″=1′-0″
  • Second floor plan at 1/4″=1′-0″, if applicable
  • Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs
  • Electrical floor plans
  • Minimum of two cross sections at 1/4″=1′-0″
  • Details as required
  • All four elevations at 1/4″=1′-0″
  • Generic detail sheet
  • Plans are engineered by a structural engineer, but not stamped or sealed
  • Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf
  • Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf
  • Assumed soil bearing capacity 1560 psf
  • Electrical fixtures / switches / smoke alarms by location only on floor plans
  • Plumbing fixtures by location only on floor plans
  • Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations
» See important information before purchasing.
Questions? Call 1-800-447-0027

Plan Set

PDF Set:
$596.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$116.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design:
$132.00
Receive an overlay sheet with suggested placement of audio and video components.
Comprehensive Material List:
$236.00
A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
Construction Guide:
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design:
$132.00
Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
