PLAN #70-1016

Key Specs

sq ft





This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

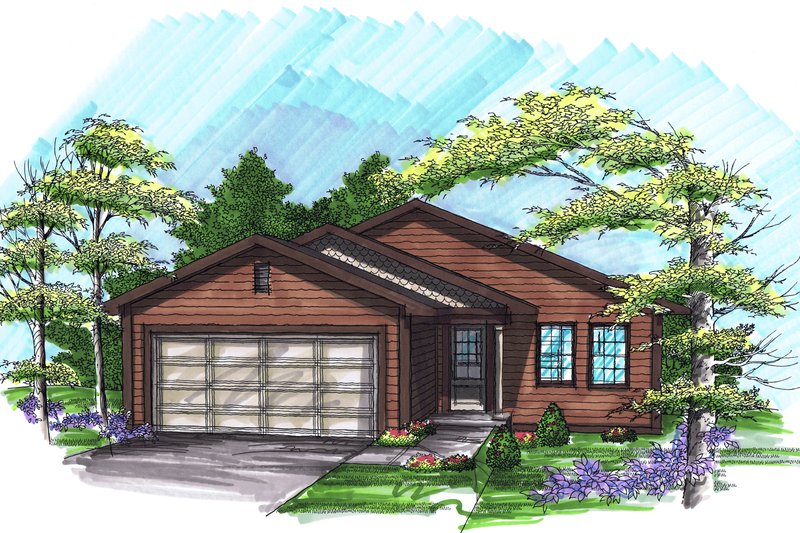

If you’re looking for maximum living space in a small ranch, this just might be the plan for you. Affordable to build, this design packs a lot of punch in just over 1,000 square feet without compromising the curb appeal that’s so important to homeowners. As you enter the home, you are greeted with a wide open floor plan that includes the living room off to your left, a dining area followed by the kitchen, and a patio door that leads you to the deck off back. Three bedrooms lie to the left of the entry for maximum privacy from everyday noise. A two-stall garage leads to the laundry room just off the entry to complete this ranch home.

Floor Plans

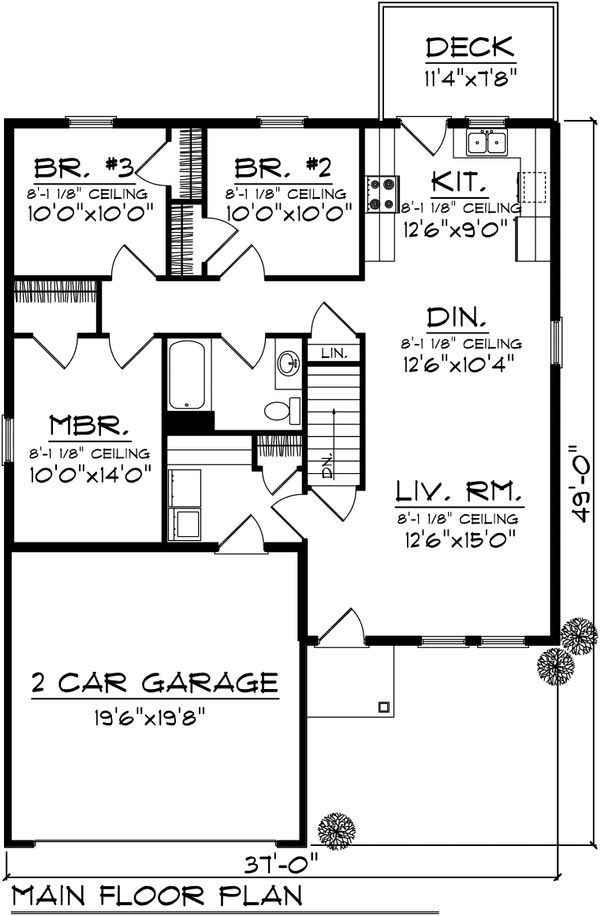

Floor Plan - Main Floor Plan
Ranch Floor Plan - Main Floor Plan Plan #70-1016

Full Specs & Features

Depth : 49'
Height : 16' 5"
Width : 37'
First Floor: 1183 sq/ft height 8'
Garage: 398 sq/ft
Main Ceiling : 8'
Roof Framing : Truss
Roof Load : 47
Primary Pitch : 5:12
Exterior Wall Framing
Insulation : R-19
Exterior Wall Finish : Gingerbread / Siding
Framing : 2 x 6
Bedroom Features
Walk In Closet
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Economical To Build
Energy Efficient Features
Energy Efficient Design

Bedroom 2:

100 sq/ft width 10' x depth 10'

Bedroom 3:

100 sq/ft width 10' x depth 10'


86 sq/ft width 11' 4" x depth 7' 8"

Dining Room:

129 sq/ft width 12' 6" x depth 10' 4"


383 sq/ft width 19' 6" x depth 19' 8"


112 sq/ft width 12' 6" x depth 9'

Living Room:

187 sq/ft width 12' 6" x depth 15'

Master Bedroom:

140 sq/ft width 10' x depth 14'

What's Included In This Plan Set

  • Cover sheet with front rendering
  • Foundation and floor plans at 1/4" = 1' scale
  • Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
  • Building sections and details as required to construct the individual design
  • Interior elevation of cabinets at 1/4" = 1' scale
  • Roof plans
  • Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
  • Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
  • Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
» See important information before purchasing.
Plan Set
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Ideal for level lot, single layer concrete poured directly on grade.
Additional Options
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
