Key Specs
1200
sq ft
2
Beds
2
Baths
1
Floors
2
Garages
Phone: 1-800-447-0027
See our Terms & Conditions and Privacy Policy.
Use Code CTBBF (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1037-6
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.
Plan Description

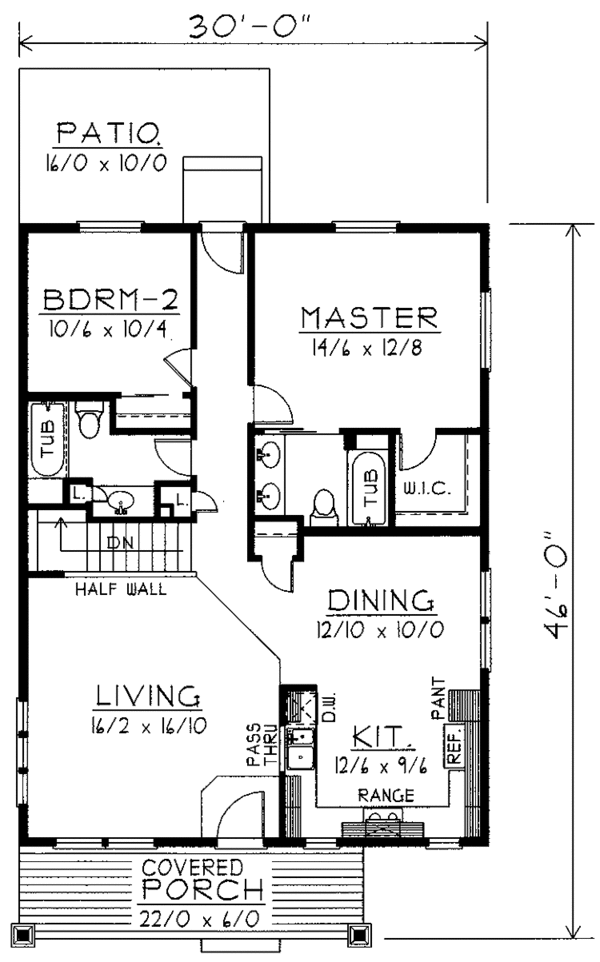

Floor Plans
Full Specs & Features
Dimension
Depth : 46'
Height : 18'
Width : 30'
Area
Basement Unfinished: 1200 sq/ft height 7' 7"
First Floor: 1200 sq/ft height 9'
Roof
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Shingle/Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Garage Features

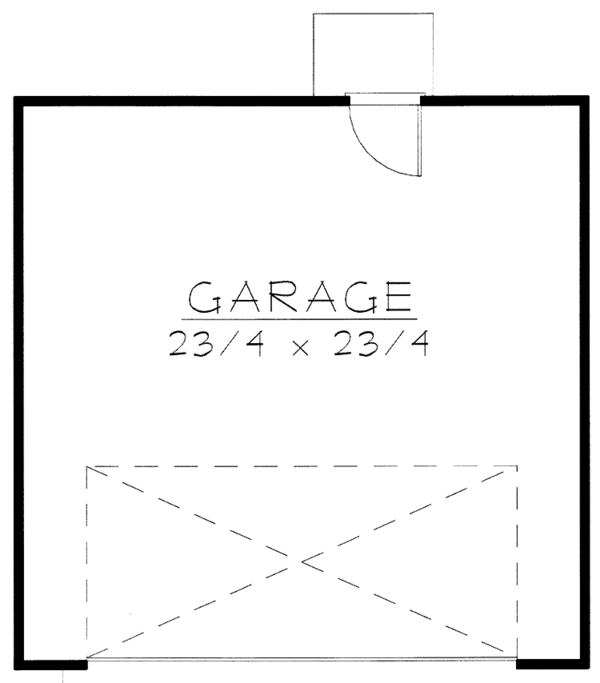

Detached Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms
Bedroom 2:
108 sq/ft width 10' 6" x depth 10' 4"
Dining Room:
129 sq/ft width 12' 11" x depth 10'
Kitchen:
118 sq/ft width 12' 6" x depth 9' 6"
Living Room:
273 sq/ft width 16' 2" x depth 16' 11"
Master Bedroom:
183 sq/ft width 14' 6" x depth 12' 8"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$680.00
$720.00
$760.00
$1120.00
$600.00
Foundation
$0.00
Framing
$0.00
Additional Options
$160.00
$48.00
$80.00
$31.20
$80.00
$48.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
