Full Specs & Features
Depth : 50' 11"
Height : 17' 9"
Width : 40'
First Floor: 1260 sq/ft
Roof Framing : Combination Truss/Conventional
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Formal Living Room / Parlor
Covered Front Porch
120 sq/ft width 10' x depth 12'
100 sq/ft width 10' x depth 10'
70 sq/ft width 7' x depth 10'
380 sq/ft width 19' x depth 20'
90 sq/ft width 9' x depth 10'
280 sq/ft width 14' x depth 20'
156 sq/ft width 12' x depth 13'
What's Included In This Plan Set
- Cover Sheet: Showing architectural rendering of residence

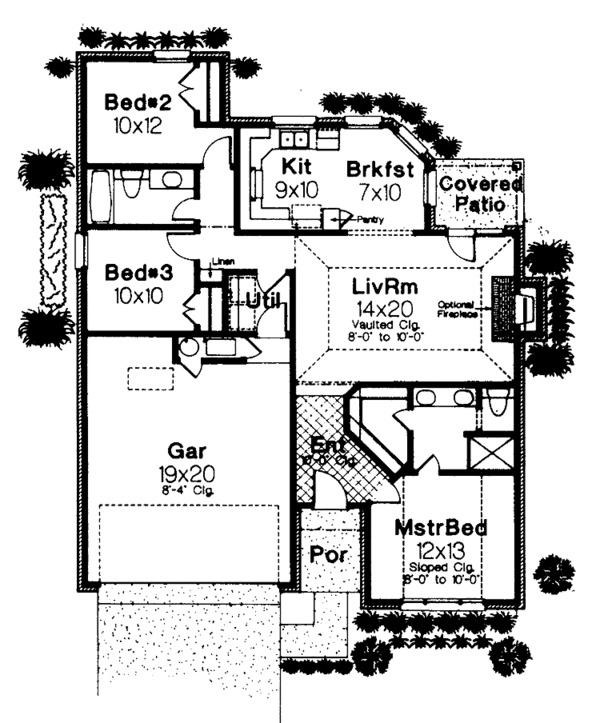

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

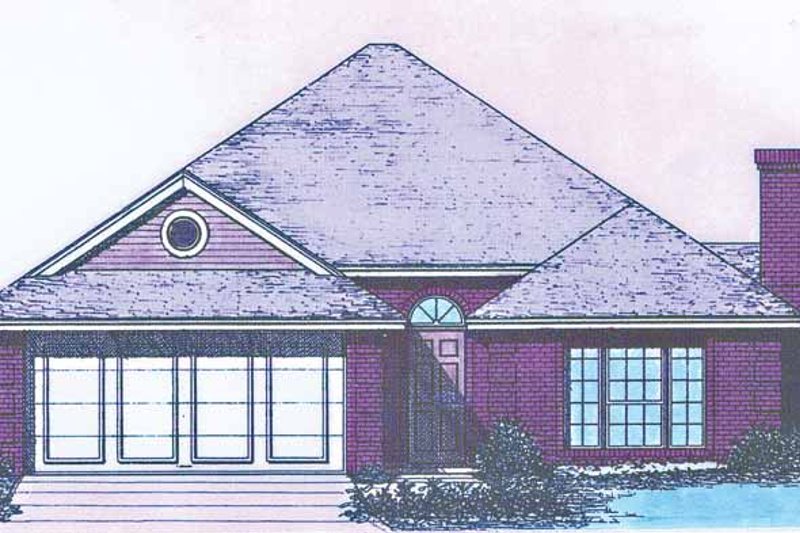

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
