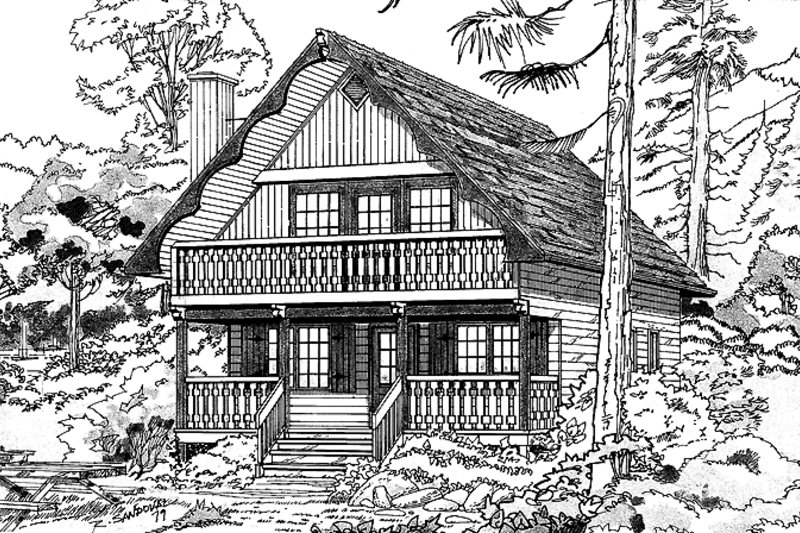

Dream House Plan - Cabin Exterior - Front Elevation Plan #47-665

Dream House Plan - Cabin Exterior - Rear Elevation Plan #47-665

Dream House Plan - Cabin Floor Plan - Main Floor Plan #47-665

Dream House Plan - Cabin Floor Plan - Upper Floor Plan #47-665

Jump to:
All (12)
Exterior (10)
Floor plans (2)

Get Personalized Help

Home > Style > Cabin House Plans

Key Specs

1286
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$195.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$60.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Additional Use License	$495.00
	Allows you to build one more home for each additional license purchased.
	Audio Video Design	$150.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$295.00
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$39.00
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$150.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$0.00 Printed sets showing plan in reverse, text and dimensions will be backwards.
	Unlimited Use License	$995.00
	Allows you to build this home as many times as you want.

Subtotal

$924.00

Also order by phone: 1-800-447-0027

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-800-447-0027

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 47-665

Home > Style > Cabin House Plans

Key Specs

1286
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Create your own cozy getaway chalet with this cabin design. Two levels of outdoor living provide a lovely introduction, with scalloped trim adding to the chalet feel. Step onto the railed veranda and into the open living areas, where a warm fireplace awaits snug evenings to the left and the dining room with a snack-bar counter borders the kitchen on the right. A window above the sink lets you enjoy the scenery while rinsing dishes. One bedroom with a wall closet rests on this level, with use of a full bathroom. The second floor holds two additional bedrooms—one the master suite—and a full bath. In the mornings, greet the trees and mountains from the master suite's balcony that runs the width of the house. Besides plenty of closet space in the bedrooms, additional storage is found up here, coming in handy for stashing heavy winter clothing when not in use. Another storage/mudroom area by the back door is a great place to put wet boots and hang up coats. A sink lets you wash up before entering living areas.

Floor Plans

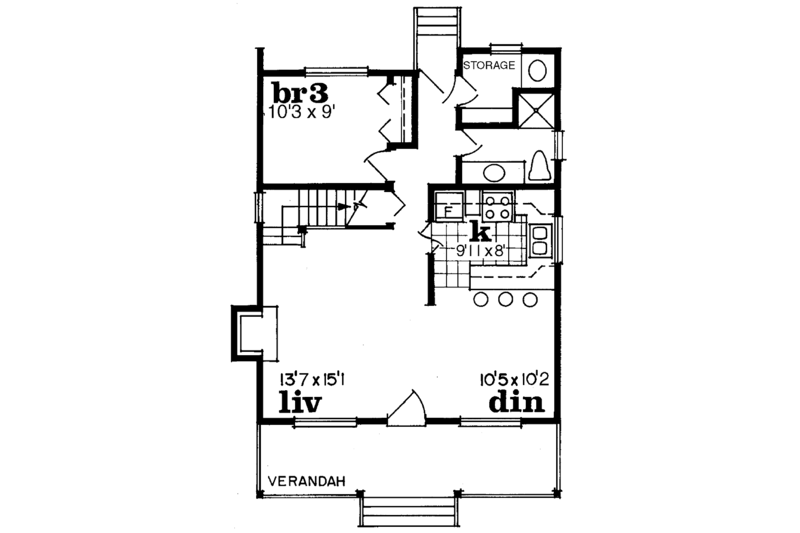

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

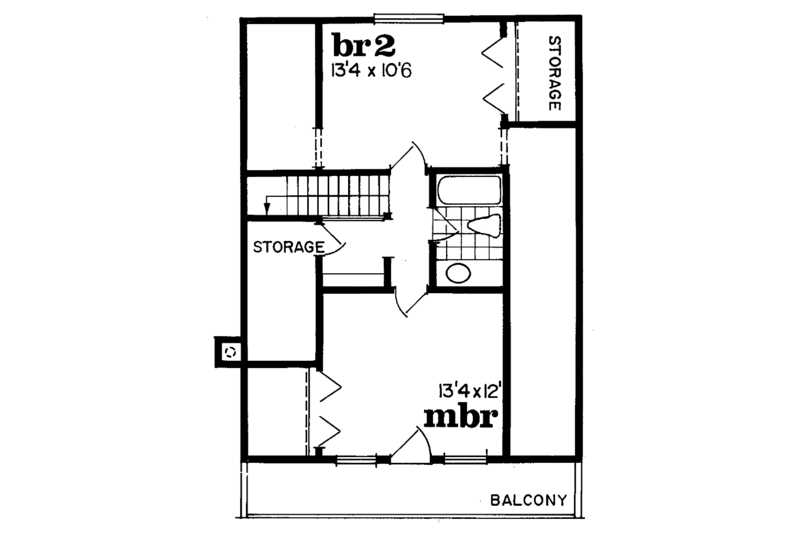

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 36' 6"

Height : 27'

Width : 25'

Area

First Floor: 725 sq/ft height 8'

Second Floor: 561 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Dining Room

Formal Living Room / Parlor

Kitchen Features

Kitchenette Wet Bar

Additional Room Features

Family Room Keeping Room

Storage Area

Outdoor Spaces

Covered Front Porch

Deck

Rooms

3rd BR Closet:

11 sq/ft width 2' x depth 5' 8"

Bathroom 2:

38 sq/ft width 7' 6" x depth 5' 1"

Bedroom 2:

139 sq/ft width 10' 6" x depth 13' 4"

Bedroom 2 Closet:

35 sq/ft width 4' 10" x depth 7' 4"

Bedroom 3:

92 sq/ft width 10' 3" x depth 9'

Crawlspace Foundation:

750 sq/ft width 30' x depth 25'

Dining Room:

106 sq/ft width 10' 5" x depth 10' 2"

Hall:

29 sq/ft width 3' x depth 9'

Hall Bathroom:

45 sq/ft width 5' 3" x depth 8' 6"

Kitchen:

79 sq/ft width 9' 11" x depth 8'

Living Room:

204 sq/ft width 13' 7" x depth 15' 1"

Master Bedroom:

159 sq/ft width 13' 4" x depth 12'

Master Closet:

31 sq/ft width 4' 10" x depth 6' 6"

Porch - Front:

150 sq/ft width 25' x depth 6'

Storage:

19 sq/ft width 4' 11" x depth 4'
