PLAN #72-522

Key Specs

sq ft





This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

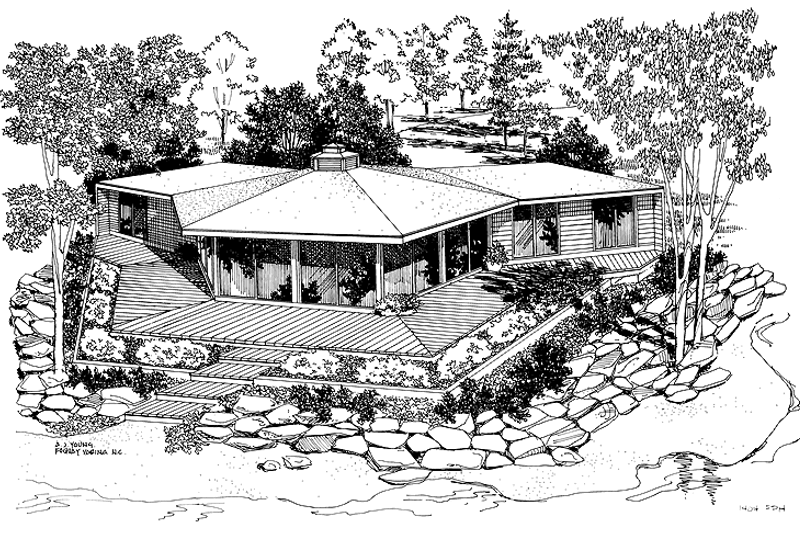

Here is a spirited design with a unique character. Inside, a hexagonal floor plan gives way to interesting angles, sure to spark up conversation. The spacious living room features sliding glass doors to the terrace, stretching across the entire length of the house. Sloped ceilings converge above the central fireplace, enhancing the natural light that pours in from every direction. The sleeping areas are located in each wing; the master bedroom is to the left (with a private bath), and two secondary bedrooms reside to the right.<P/><BR/>

Floor Plans

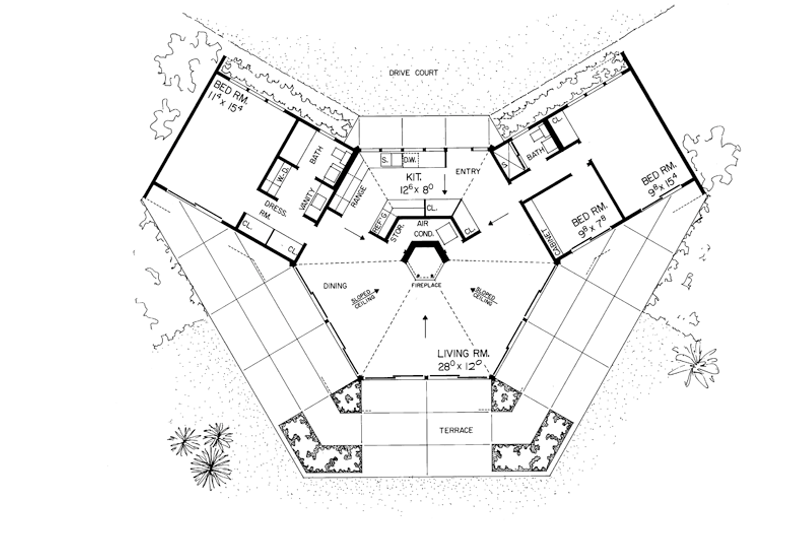

Floor Plan - Main Floor Plan
Contemporary Floor Plan - Main Floor Plan Plan #72-522

Full Specs & Features

Depth : 40'
Height : 14'
Width : 69' 2"
First Floor: 1336 sq/ft
Roof Framing : Conventional
Primary Pitch : 2:12
Roof Type : Build-Up
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Split Bedrooms
Additional Room Features
Open Floor Plan
Outdoor Spaces
Outdoor Kitchen Grill

3rd BR Closet:

8 sq/ft width 2' 1" x depth 4'

Bedroom 2:

74 sq/ft width 7' 8" x depth 9' 8"

Bedroom 3:

148 sq/ft width 9' 8" x depth 15' 4"


60 sq/ft width 6' x depth 10'

Living Room:

504 sq/ft width 28' x depth 12'

Master Bathroom:

28 sq/ft width 4' 1" x depth 7'

Master Bedroom:

173 sq/ft width 11' 4" x depth 15' 4"

Master Closet:

16 sq/ft width 2' 1" x depth 8'

Slab Foundation:

2763 sq/ft width 40' x depth 69' 1"


31 sq/ft width 2' 9" x depth 11' 6"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
5 printed plan sets mailed to you.
8 Copy Set :
8 printed plan sets mailed to you.
Reproducible Set :
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for level lot, single layer concrete poured directly on grade.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
Ideal for sloping lot, lower level of home partially underground.


Wood 2x4:
Wood 2x4

Additional Options

Additional Construction Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Home Furniture Planner :
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Right-Reading Reverse :
Choose this option to reverse your plans and to have the text and dimensions readable.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
