PLAN #72-676

Select Plan Set Options
What's included?
Additional Construction Sets
$60.00/each
Mirror Reversed Sets
$55.00
Subtotal
$860.00
Or order by phone: 1-800-447-0027
Cost-to-Build Estimates
How much will this cost to build?

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report
Or order by phone: 1-800-447-0027
Got Questions?
Got Questions?  Just ask!
Hours  Mon-Fri, 6am - 5:30pm PST

PLAN #72-676

Key Specs


2455
sq ft

4
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description

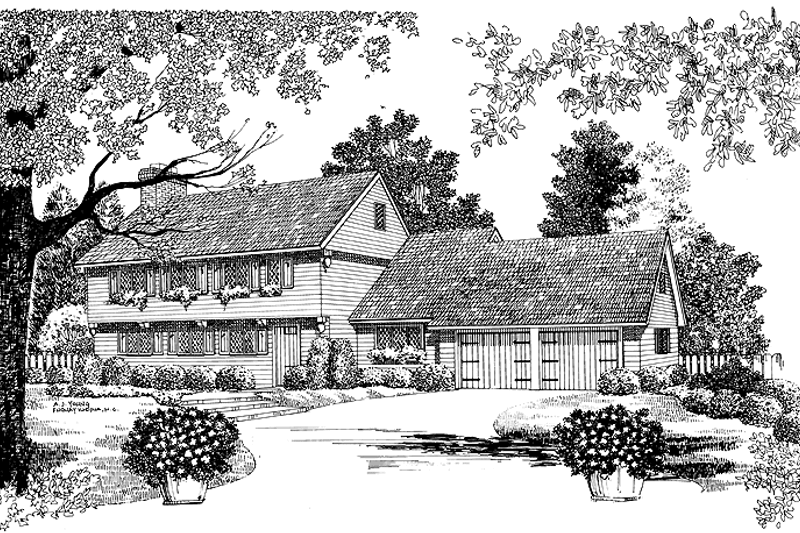

This design is based on one of the foremost examples of early Colonial style, Boston’s Paul Revere House, built around 1676. The oldest house in Boston, it was the home of the great patriot from 1770 until 1800. The exterior reflects the Medieval influ-ence through design elements such as the bracketed first-floor overhang, pendant drops and weatherboarding. However, the interi-or is considerably larger than the one-room-deep layout of the patriot’s home. Colonial details include exposed beams in the living room and family room, wood-paneled walls in the entry and a built-in corner china cabinet in the dining room. Today's family will appreciate the U-shaped kitchen, where a work penin-sula with a snack counter opens to the family room. Sliding glass doors open to a rear terrace from the family room and the living room. A simple stairway ascends to four bedrooms and two baths. Storage space over the garage is reached through a walk-in closet in one of the bedrooms.<P/><BR/>Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.

Floor Plans

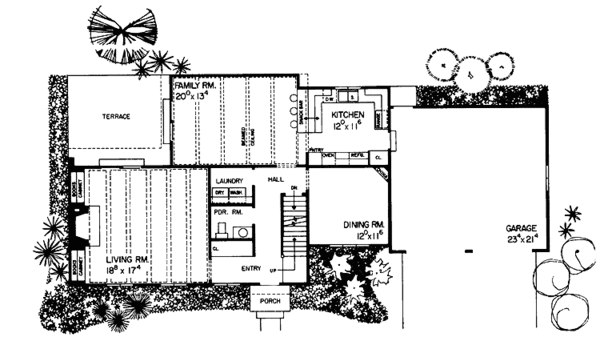

Floor Plan - Main Floor Plan
Floor Plan - Main Floor Plan

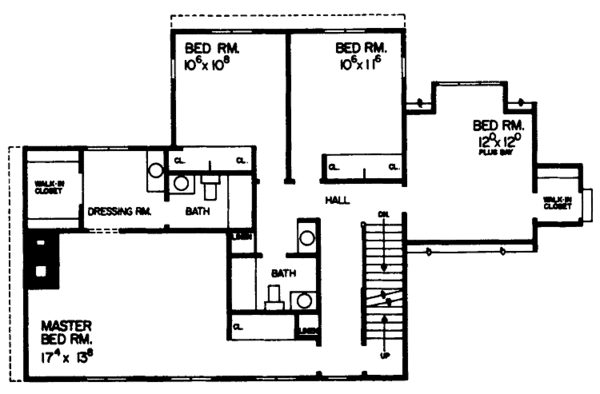

Floor Plan - Upper Floor Plan
Floor Plan - Upper Floor Plan

Full Specs & Features


Area Main Floor : 1222 sq/ft
Upper Floor : 1233 sq/ft
Bedroom Features Fireplace
Formal Living Room / Parlor
Additional Room Features Family Room Keeping Room
Outdoor Spaces Covered Front Porch
Covered Rear Porch

What's Included In This Plan Set


Homeplanners, L.L.C.

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Plan Set
PDF Set :
$860.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$960.00
5 printed plan sets mailed to you.
8 Copy Set :
$1060.00
8 printed plan sets mailed to you.
Reproducible Set :
$1060.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.
CAD Set :
$1720.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Foundation
Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$275.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$275.00
Ideal for sloping lot, lower level of home partially underground.
Slab:
$275.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x4:
$0.00
Wood 2x4
Additional Options
Material List :
85.00
A list of building supplies needed to construct the infrastructure of your new house.
Right-Reading Reverse :
175.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets :
55.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Home Furniture Planner :
19.95
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
