Simple to build yet designed with maximum curb appeal, this small ranch home provides everything today’s buyer needs. Complete with three bedrooms and 2 baths, this home combines an open design concept with design features that are sure to please. As you enter the foyer, the first thing you’ll notice is the vaulted ceiling here and the wall of windows from the great room that draws you forward. The kitchen features a breakfast bar that overlooks the main living area to include a dining room off the back. The three bedrooms lie to the left of the home and a three-stall garage with extra storage completes the home.

Floor Plans

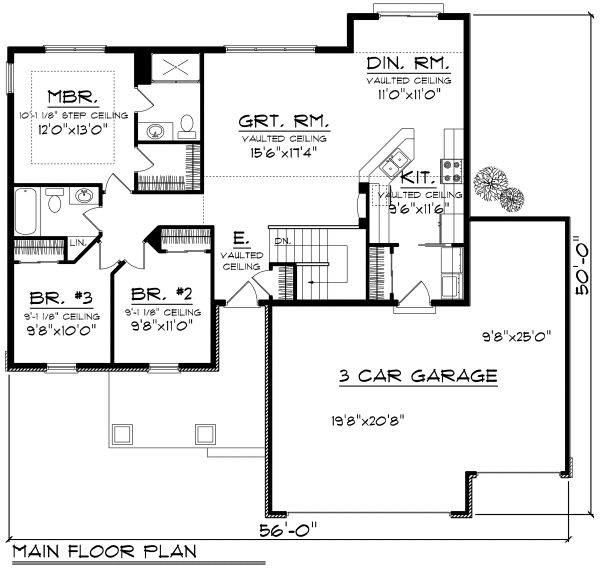

Floor Plan - Main Floor Plan
Craftsman Floor Plan - Main Floor Plan Plan #70-1159

Full Specs & Features

Dimension Depth : 50'
Height : 19' 11"
Width : 56'
Area Garage : 676 sq/ft
Main Floor : 1351 sq/ft
Porch : 161 sq/ft
Ceiling Ceiling Details : Entry/Grt Rm/Kitch/Din Rm Vaulted, Master Bdrm 10' Step
Lower Ceiling : 8'
Main Ceiling : 9'
Roof Roof Framing : Truss
Roof Load : 47 psf
Primary Pitch : 8:12
Secondary Pitch : 6:12
Exterior Wall Framing Exterior Wall Finish : Siding, Shake, Stone
Framing : 2x6
Bedroom Features Main Floor Master Bedroom
Walk In Closet
Kitchen Features Eating Bar
Breakfast Nook
Additional Room Features Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features Front Entry Garage
Outdoor Spaces Covered Front Porch
Bedroom 2 width 9' 8" x depth 11'
Bedroom 2 Closet width 5' x depth 2' 1"
Bedroom 3 width 9' 8" x depth 10'
Bedroom 3 Closet width 5' x depth 2' 1"
Covered Front Porch width 16' x depth 14' 4"
Dining Area width 11' x depth 11'
Foyer width 5' 7" x depth 7' 5"
Garage 1 width 19' 8" x depth 20' 8"
Garage 2 width 9' 8" x depth 25'
Great Room width 15' 6" x depth 17' 4"
Hall width 10' 2" x depth 3' 2"
Hall Bath width 8' 7" x depth 5'
Hall Closet width 2' 1" x depth 3' 5"
Kitchen width 9' 6" x depth 11' 6"
Master Bath width 6' 4" x depth 8' 10"
Master Bedroom width 12' x depth 13'
Master Closet width 6' 4" x depth 4' 8"
Utility Room width 7' 1" x depth 5' 4"
Utility Room Closet width 2' 1" x depth 5' 4"
