PLAN 47-900

Key Specs


1392
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


Traditional corner columns add prestige to this three-bedroom ranch home. The vaulted living room features a gas fireplace and a built-in media center. An open kitchen with a work island adjoins the dining room, which contains a large bay window and double French doors leading to the rear deck. An abundance of natural light from the skylights in the main hallways add dramatic effects. The master suite is appointed with His and Hers wall closets and a private bath. Family bedrooms share a full hall bath. The laundry room has space for a full-size washer and dryer with cabinets overhead. The crawlspace option allows for a convenient homework space between the dining room and living room.


Floor Plans

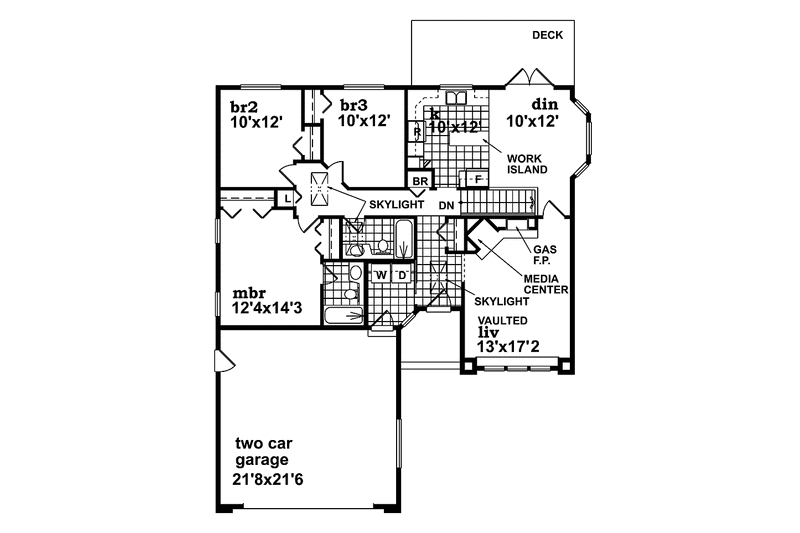

Floor Plan - Main Floor Plan
Reverse
Save

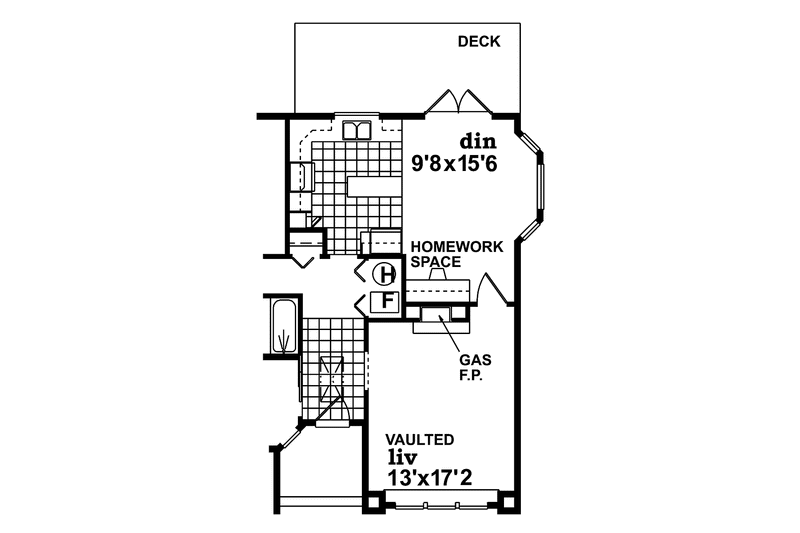

Floor Plan - Other Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 52' 6"
Height : 20'
Width : 44'
Area
First Floor: 1392 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Truss
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

3rd BR Closet:

8 sq/ft width 4' 2" x depth 2'

Basement Foundation:

1562 sq/ft width 35' 6" x depth 44'

Bedroom 2:

120 sq/ft width 12' x depth 10'

Bedroom 2 Closet:

8 sq/ft width 4' 2" x depth 2'

Bedroom 3:

120 sq/ft width 12' x depth 10'

Bedroom 3 Closet:

8 sq/ft width 4' 2" x depth 2'

Crawlspace Foundation:

1562 sq/ft width 35' 6" x depth 44'

Dining Room:

120 sq/ft width 12' x depth 10'

Foyer:

57 sq/ft width 10' 10" x depth 5' 4"

Garage:

465 sq/ft width 21' 6" x depth 21' 8"

Hall Bathroom:

44 sq/ft width 5' x depth 8' 10"

Hall Closet:

8 sq/ft width 4' x depth 2'

Kitchen:

128 sq/ft width 12' x depth 10' 8"

Living Room:

223 sq/ft width 17' 2" x depth 13'

Master Bathroom:

39 sq/ft width 7' 10" x depth 5'

Master Bedroom:

175 sq/ft width 14' 3" x depth 12' 4"

Master Closet:

10 sq/ft width 5' x depth 2'

Porch - Front:

45 sq/ft width 6' 2" x depth 7' 4"

Porch - Rear:

160 sq/ft width 8' x depth 20'

Utility Room:

43 sq/ft width 7' 10" x depth 5' 6"

What's Included In This Plan Set


See a sample plan set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

PDF Set :
$693.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$792.00
5 printed plan sets mailed to you.
8 Copy Set :
$891.00
8 printed plan sets mailed to you.
Reproducible Set :
$891.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
CAD Set :
$1386.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Daylight Basement:
$247.50
Ideal for sloping lot, lower level of home partially underground.
Slab:
$247.50
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x6:
$0.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$157.50
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets :
$54.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License :
$315.00
Additional Use License.
Audio Video Design :
$90.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$35.10
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$90.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List :
$76.50
A list of building supplies needed to construct the infrastructure of your new house.
Mirror Reversed Sets :
$54.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License :
$630.00
Unlimited Use License.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
