PLAN #72-1014

Key Specs


1414
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized!
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Plan Description


This cozy cottage features a front-facing office/guest suite, which provides privacy for the entry courtyard. With its separate entrance, it offers the perfect haven for an in-home office or for those with live-in parents. The remainder of the house is designed with the same level of efficiency. It contains a large living area with access to a covered patio and a three-sided fireplace that shares its warmth with a dining room featuring built-ins. A unique kitchen provides garage access. The bedrooms include a comfortable master suite with a whirlpool tub, a double-bowl vanity and twin closets.<P/><BR/>

Floor Plans


Floor Plan - Main Floor Plan

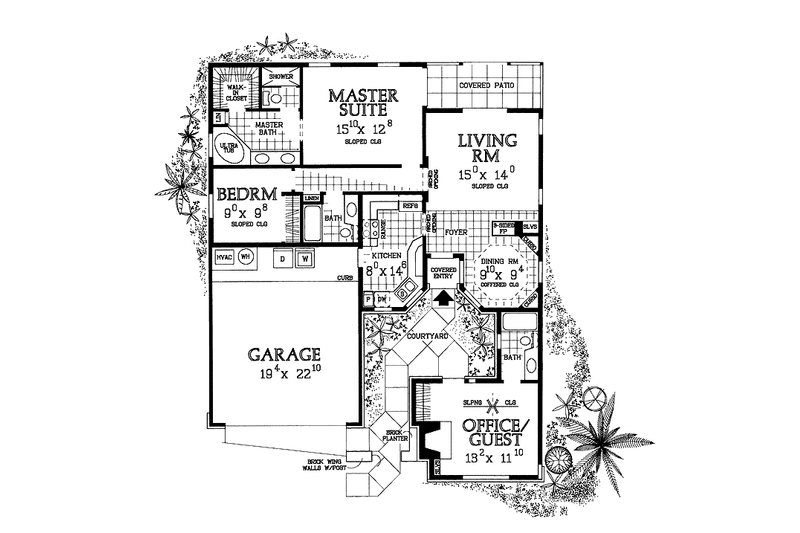

Ranch Floor Plan - Main Floor Plan Plan #72-1014

Full Specs & Features


Dimension
Depth : 54' 4"
Height : 20'
Width : 44' 8"
Area
First Floor: 1414 sq/ft height 8'
Bedroom Features
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Additional Room Features
Den Office Study Computer
Main Floor Laundry
Outdoor Spaces
Courtyard
Covered Front Porch
Rooms

3rd BR Closet:

10 sq/ft width 2' x depth 5'

Bathroom 2:

45 sq/ft width 7' 4" x depth 6' 3"

Bathroom 3:

44 sq/ft width 5' x depth 8' 10"

Bedroom 2:

87 sq/ft width 9' x depth 9' 8"

Bedroom 2 Closet:

13 sq/ft width 2' 1" x depth 6' 3"

Bedroom 3 Closet:

13 sq/ft width 2' 1" x depth 6' 3"

Bonus Room - Finished:

155 sq/ft width 13' 2" x depth 11' 10"

Dining Room:

91 sq/ft width 9' 10" x depth 9' 4"

Foyer:

33 sq/ft width 5' x depth 6' 8"

Garage:

441 sq/ft width 19' 4" x depth 22' 10"

Hall:

55 sq/ft width 3' 2" x depth 17' 6"

Kitchen:

116 sq/ft width 8' x depth 14' 6"

Living Room:

210 sq/ft width 15' x depth 14'

Master Bathroom:

145 sq/ft width 11' 5" x depth 12' 9"

Master Bedroom:

200 sq/ft width 15' 10" x depth 12' 8"

Master Closet:

32 sq/ft width 6' 1" x depth 5' 5"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

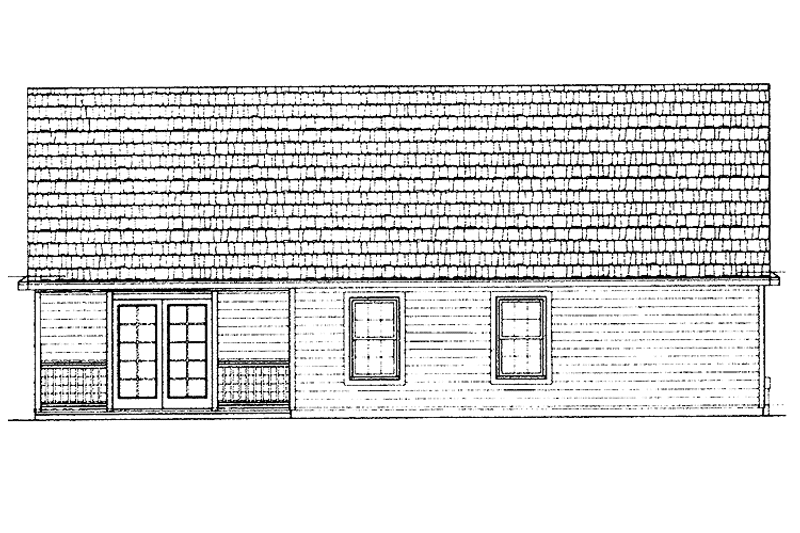

  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
