PLAN 47-877

Key Specs

1427
sq ft

3
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-800-447-0027 for assistance.

Modify This Plan

Plan Description

Vertical siding and a wide deck grace the exterior of this plan. Inside, the floor plan features a secluded second-floor master suite with private bath and walk-in closet. Extra-high vaulted ceilings and a wall of windows make the living/dining room a comfortable gathering area. It is warmed by a fireplace and open to the U-shaped kitchen. A laundry room is just beyond. The back entrance has a closet and opens to a rear deck. Two family bedrooms are on the first floor and share a full bath.

Floor Plans

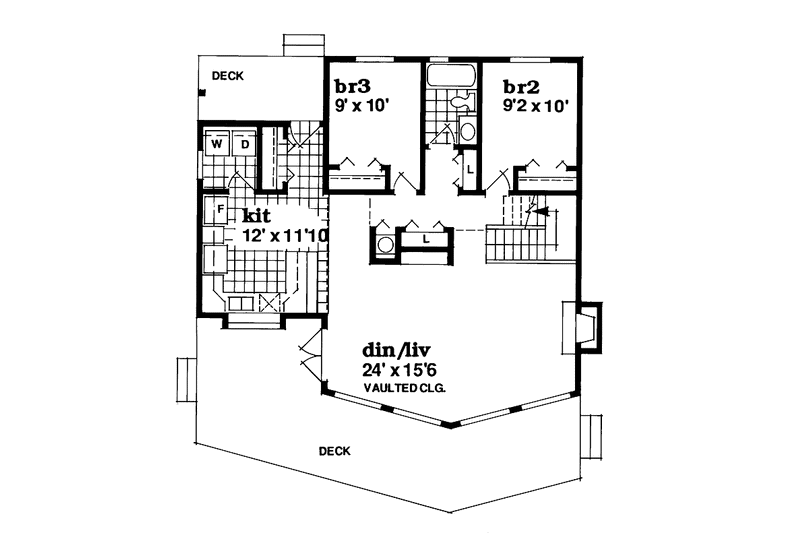

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

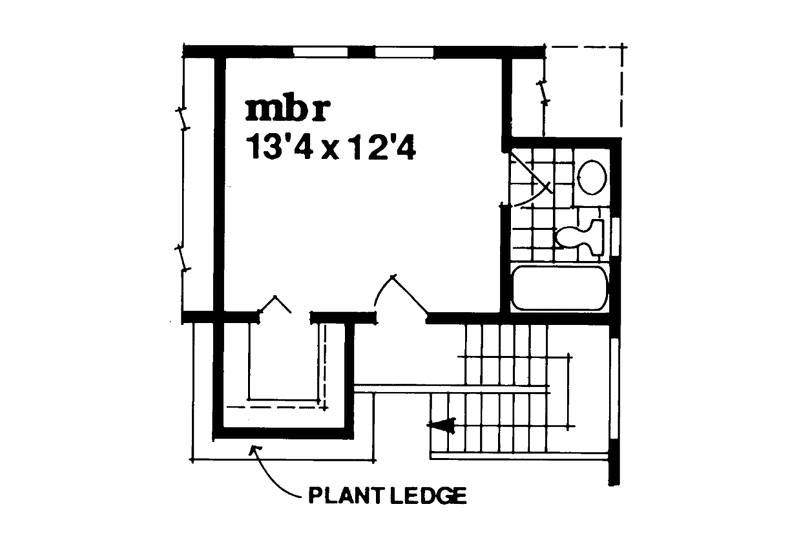

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 36'

Height : 25'

Width : 37'

Area

First Floor: 1084 sq/ft height 8'

Second Floor: 343 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12

Roof Framing : Combination Truss/Conventional

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : Wood - 2x6

Bedroom Features

Fireplace

Walk In Closet

Kitchen Features

Kitchenette Wet Bar

Outdoor Spaces

Deck

Rooms

3rd BR Closet:

11 sq/ft width 2' x depth 5' 8"

Bedroom 2:

91 sq/ft width 10' x depth 9' 2"

Bedroom 2 Closet:

11 sq/ft width 2' x depth 5' 10"

Bedroom 3:

90 sq/ft width 10' x depth 9'

Bedroom 3 Closet:

11 sq/ft width 2' x depth 5' 10"

Crawlspace Foundation:

1332 sq/ft width 36' x depth 37'

Deck:

78 sq/ft width 6' 6" x depth 12'

Foyer:

22 sq/ft width 6' 6" x depth 3' 6"

Hall Closet:

11 sq/ft width 5' 10" x depth 2'

Kitchen:

141 sq/ft width 11' 10" x depth 12'

Master Bathroom:

39 sq/ft width 7' 10" x depth 5'

Master Bedroom:

164 sq/ft width 12' 4" x depth 13' 4"

Master Closet:

30 sq/ft width 5' 4" x depth 5' 8"

Porch - Front:

296 sq/ft width 8' x depth 37'

Powder Room:

40 sq/ft width 8' x depth 5'

Utility Room:

32 sq/ft width 5' 10" x depth 5' 6"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
